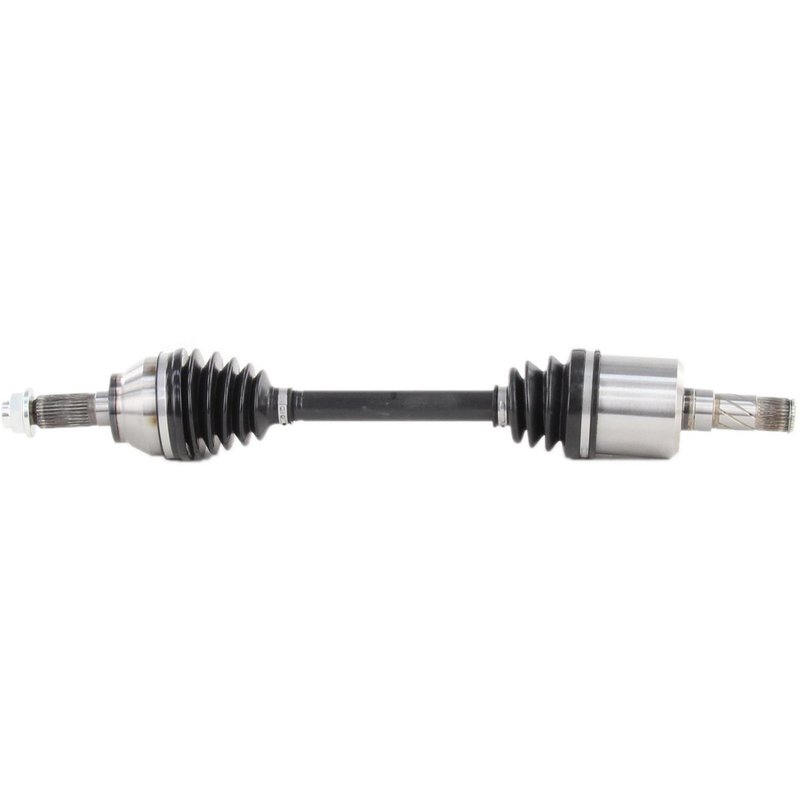

TrakMotive MZ-8252 CV Axle Shaft - Front Left

Brand TrakMotive MZ-8252
Position Front Left
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 0.94
Axle Nut Height (mm) 24
Axle Nut Hex Size (in) 1.26
Axle Nut Hex Size (mm) 32
Axle Nut Included Yes
Axle Nut Length (in) 1.45
Axle Nut Length (mm) 36.95
Axle Nut Locking Type Stake
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
New Or Remanufactured New
Number Of Inboard Splines 28
Number Of Outboard Splines 28
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 24.88
Overall Compressed Length (mm) 632
Product line AAR CV Axle Shaft
Fits Mazda · 22 vehicles

New axle shaft. Replacement driveline component for listed Mazda applications.

Neoprene boot. Flexible boot material helps protect the joint assembly.

Updated design. Built for application-specific fitment and driveline service.

Cross-references Cardone Reman 60-8175, TrakMotive MZ-8252 and GG6225600R0B for the same application. See all 4.

$149.96Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $149.96
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Overview

TrakMotive MZ-8252 is a new CV axle shaft for front left applications with an updated design for select Mazda models. It is built with a neoprene boot, spline connections at both ends, and a conventional outboard joint for direct driveline service.

Compatible With Mazda 3, Mazda 3 Sport, and Mazda 5 applications listed below, this axle shaft is a fitment-based replacement for vehicles using the specified spline and length requirements. The MZ-8252 part number is also referenced for cross-checking against related listings.

Key Features

  • New CV axle shaft for driveline repair and replacement
  • Neoprene boot material for flexible joint protection
  • 28-spline inboard and outboard shaft connections
  • Hex axle nut with stake locking type
  • ABS tone ring not included
  • Overall compressed length: 24.88 in. (632 mm)

Product Details

The TrakMotive AAR CV Axle Shaft line focuses on application-specific driveline replacement parts. MZ-8252 follows that approach with an updated design, a new construction, and hardware details that match the listed fitment requirements. It uses a male inboard joint, a conventional outboard joint, and a 32 mm axle nut hex size with M22 x 1.5 thread specification. This part number, MZ-8252, is listed for 2010-2013 Mazda 3 front left, 2010-2013 Mazda 3 Sport front left, 2011-2013 Mazda 3 Sport front left, and 2008-2010 Mazda 5 front left applications.

What It Helps Fix

  • Clicking or popping from a worn CV joint
  • Vibration during acceleration from a damaged axle shaft
  • Boot failure that can lead to grease loss and joint wear
  • Driveline noise caused by spline or joint wear
  • Axle replacement needs after inspection or teardown

Installation Notes

Verify axle length, spline count, nut thread size, and ABS requirements before installation. ABS axles fit non-ABS applications unless otherwise noted. Use the listed fitment only for the exact Mazda 3, Mazda 3 Sport, and Mazda 5 applications shown, and confirm the front left position before ordering. The included axle nut uses a stake locking design.

Quality Assurance

TrakMotive lists this axle shaft as a new part and states a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.

Related reading

This part fits 22 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeTransmissionLitersCylindersPositionNotes
2013Mazda3FWDAutomatic2.5LL4Front LeftUpdated Design; AAR CV Axle Shaft
2013Mazda3FWDAutomatic2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2013Mazda3 SportFWDAutomatic2.5LL4Front LeftUpdated Design; AAR CV Axle Shaft
2013Mazda3 SportFWDAutomatic2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2013Mazda3 SportFWDAutomatic2.0LL4Front LeftAAR CV Axle Shaft
2012Mazda3FWDAutomatic2.5LL4Front LeftUpdated Design; AAR CV Axle Shaft
2012Mazda3FWDAutomatic2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2012Mazda3 SportFWDAutomatic2.5LL4Front LeftUpdated Design; AAR CV Axle Shaft
2012Mazda3 SportFWDAutomatic2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2012Mazda3 SportFWDAutomatic2.0LL4Front LeftAAR CV Axle Shaft
2011Mazda3FWDAutomatic2.5LL4Front LeftUpdated Design; AAR CV Axle Shaft
2011Mazda3FWDAutomatic2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2011Mazda3 SportFWDAutomatic2.5LL4Front LeftUpdated Design; AAR CV Axle Shaft
2011Mazda3 SportFWDAutomatic2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2011Mazda3 SportFWDAutomatic2.0LL4Front LeftAAR CV Axle Shaft
2010Mazda3FWDAutomatic2.5LL4Front LeftUpdated Design; AAR CV Axle Shaft
2010Mazda3FWDAutomatic2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2010Mazda3 SportFWDAutomatic2.5LL4Front LeftUpdated Design; AAR CV Axle Shaft
2010Mazda3 SportFWDAutomatic2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2010Mazda5FWDAutomatic——Front LeftUpdated Design; AAR CV Axle Shaft
2009Mazda5FWDAutomatic——Front LeftUpdated Design; AAR CV Axle Shaft
2008Mazda5FWDAutomatic——Front LeftUpdated Design; AAR CV Axle Shaft
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone Reman — 60-8175TrakMotive — MZ-8252GG6225600R0BGG6225600R0H
