Brackets, Flanges and Hangers

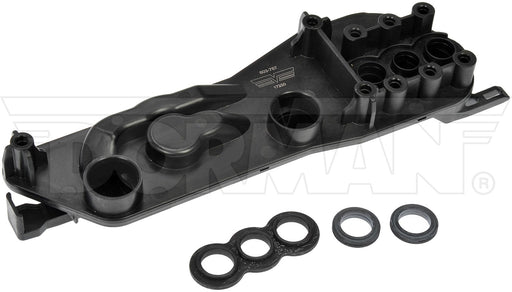

Brackets, flanges, and hangers are the structural and sealing components that anchor your cooling system's hoses, pipes, fans, and radiator in place. Outlet and hose flanges seal coolant passages at the block, head, and radiator - a cracked or warped flange is a direct path to coolant leaks and overheating. Fan brackets and pulley brackets hold the mechanical fan assembly in correct alignment with the belt drive; a failed bearing bracket causes wobble, noise, and eventually belt damage. These parts rarely wear on a fixed schedule - they typically fail from heat cycling, corrosion, or physical damage during other repairs. When replacing, verify OEM casting numbers or cross-reference by engine code, not just year/make/model, since flange ports, bolt patterns, and mounting hole spacing vary significantly between engine families. OEM flanges are cast aluminum or stamped steel matched to factory tolerances; quality aftermarket units from brands like Dorman are acceptable when OEM is discontinued or significantly more expensive.

Signs you need replacement

• Coolant pooling under the engine or wet residue around hose connection points - a warped or cracked outlet/hose flange breaks its seal, causing a slow drip that worsens with heat cycles and pressure buildup.
• Engine overheating with no obvious hose rupture - a compromised coolant flange can allow air into the system or allow enough seepage to gradually drop coolant level without a visible puddle.

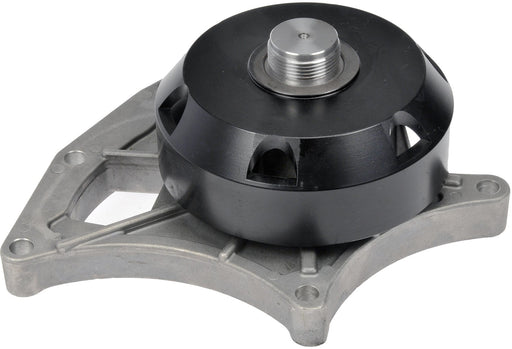

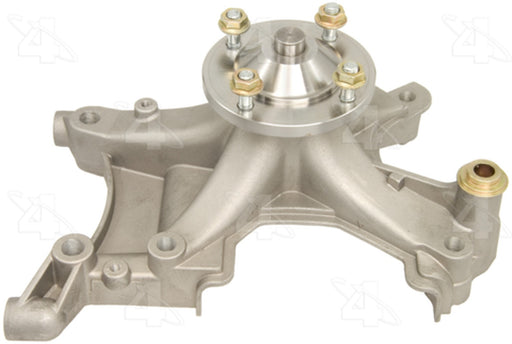

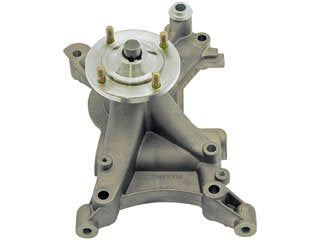

• Visible wobble or wobbling vibration from the cooling fan at idle or acceleration - worn or cracked fan pulley brackets and clutch bearing brackets allow the fan assembly to run off-axis, which can throw a belt or damage surrounding components.
• Squealing or grinding noise from the front of the engine near the fan - often points to a failed bearing within the fan clutch bearing bracket rather than the clutch itself, especially common above 80,000–100,000 miles.
• Cracked, broken, or missing radiator mount bracket - the radiator will shift under load, stressing the inlet and outlet hoses and risking contact with the fan blades; inspect these any time a radiator is removed.
• Coolant reservoir sitting loose or contacting hot engine components - a broken reservoir bracket lets the tank migrate toward heat sources, softening the plastic and increasing the risk of a sudden crack and coolant loss.

Frequently asked questions

• Do coolant flanges need to be replaced at a set mileage interval? There's no fixed interval - most flanges last the life of the vehicle unless disturbed. Plan to inspect and replace outlet and hose flanges any time you pull the thermostat housing, do a coolant flush, or replace a water pump. Reusing a warped or corroded flange after disturbing it is a common source of post-repair leaks.
• Is OEM worth the premium over aftermarket for coolant flanges and fan brackets? For flanges on high-torque or aluminum heads, OEM castings are preferable - wall thickness and port geometry match factory specs exactly. For fan brackets and pulley brackets, quality aftermarket (Dorman, Four Seasons) is generally adequate and often the only option on older or discontinued platforms. Avoid no-name imports on structural fan components where flex or fatigue failure is a real risk.
• What else should I replace when swapping a coolant outlet flange? Always replace the flange gasket and any o-rings in the circuit - these are rarely reusable once compressed. If the flange bolts into a thermostat housing, inspect the housing for cracks at the same time. Parts typically run $8–$60 for the flange and under $10 for the gasket kit, making it low-cost insurance against a repeat job.
