Transmission Bushings

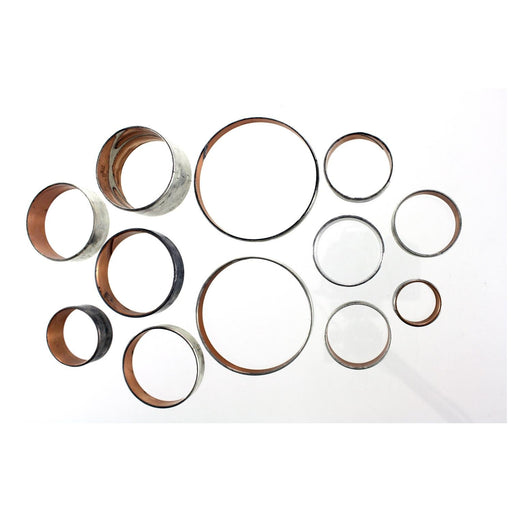

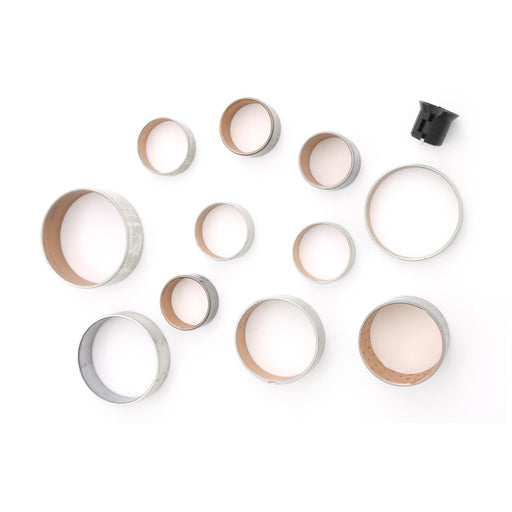

Automatic transmission bushings are small but critical components that support rotating shafts, reduce metal-to-metal contact, and keep internal clearances tight inside your transmission. They wear gradually through heat cycling, fluid degradation, and normal operating stress - typically becoming a concern around 80,000–120,000 miles, or earlier in vehicles that tow frequently or run transmission fluid past its service interval. Failed bushings allow excessive shaft movement, which throws off valve body pressure, accelerates wear on adjacent components, and is a leading cause of soft or erratic shifts. When shopping for a bushing kit, prioritize OEM-spec dimensions - even a few thousandths of an inch in wall thickness affects shaft clearance. Brass and bronze alloy bushings are the industry standard for durability; avoid low-cost iron or soft aluminum substitutes. Confirm the kit is transmission-specific (e.g., 4L60E, 4R70W, 6R80) rather than a generic assortment, since individual bushing counts and sizes vary significantly by unit.

Signs you need replacement

• Delayed or slipping engagement when shifting from Park to Drive or Reverse - worn bushings allow shaft deflection that disrupts hydraulic pressure in the valve body, causing sluggish or inconsistent gear engagement.
• Whining or humming noise that changes pitch with vehicle speed - a worn input or output shaft bushing lets the shaft wobble slightly, creating a tone that rises and falls independently of engine RPM.
• Transmission fluid contaminated with fine metallic particles - if your fluid looks gray or shows debris on a white rag, bushing wear is a likely contributor alongside clutch material and thrust washer breakdown.
• Harsh or shuddering shifts at highway speeds - governor or output shaft bushings that are out of spec disrupt the smooth transfer of rotational force, producing a noticeable thud or vibration during 3–4 or 4–5 upshifts.
• Transmission overheating without a clear fluid or cooler issue - increased internal friction from metal-on-metal shaft contact generates heat that pushes fluid temps above the normal 175–200°F operating range.

Frequently asked questions

• When should transmission bushings be replaced? Bushings don't have a fixed OEM replacement interval - they're typically inspected and replaced during a transmission rebuild or when internal damage is diagnosed. As a preventive measure during a full overhaul, replacing the entire bushing kit at 100,000–150,000 miles is standard shop practice, especially if the unit has a history of fluid neglect or overheating.
• Are aftermarket bushing kits as reliable as OEM parts? Quality aftermarket kits from brands like Sonnax, Transtec, or Alto match or exceed OEM specs and are widely used by professional rebuilders. The key is material - brass or bronze alloy is correct for most applications. Avoid unbranded kits that don't specify alloy composition or list OEM cross-reference numbers, as dimensional inconsistencies can cause premature failure.
• What else should I replace when installing a transmission bushing kit? Since bushing replacement typically happens during a full rebuild or deep teardown, it's cost-effective to simultaneously replace the seal kit, thrust washers, filter, and solenoids if they haven't been recently serviced. Completing these together avoids a second teardown and addresses the most common wear points in a single job. DIY difficulty is high - this is not a pan-drop service.
