Brackets, Flanges and Hangers

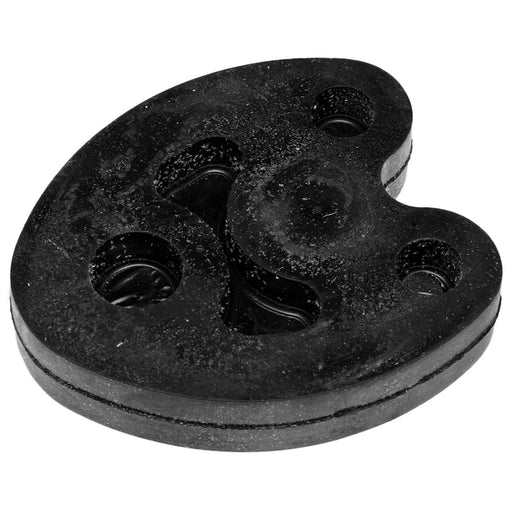

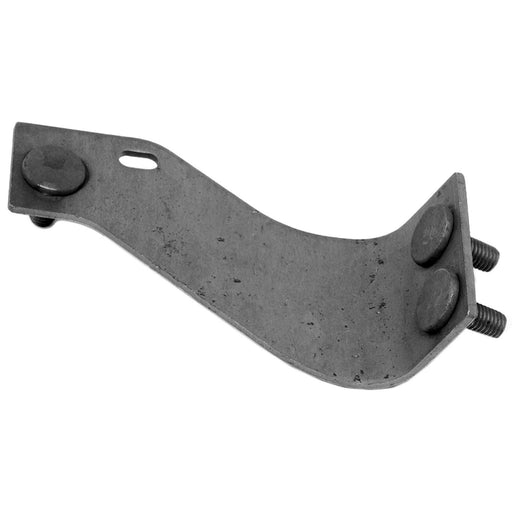

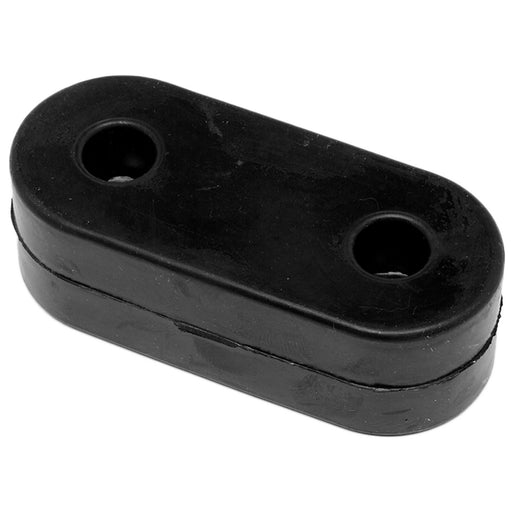

Exhaust brackets, flanges, and hangers are the hardware that keeps your exhaust system secured, aligned, and isolated from the rest of the vehicle. Rubber hanger insulators absorb vibration so exhaust noise doesn't transfer into the cabin; flanges seal pipe-to-pipe and pipe-to-manifold connections under high heat and pressure; brackets and straps anchor mufflers and mid-pipes to the chassis. These parts fail from heat cycling, road salt corrosion, and rubber degradation - most OEM rubber insulators crack or tear within 80,000–120,000 miles, while flanges can warp or crack sooner on turbocharged or high-output engines. When buying, confirm pipe diameter for flanges (commonly 2", 2.25", 2.5", or 3") and match hanger mounting stud spacing to your chassis. OEM-spec replacements are the safe default; heavy-gauge aftermarket brackets and stainless flanges are worth the upgrade if you're replacing corroded factory parts in a rust-belt climate.

Signs you need replacement

• Exhaust rattling or clunking under the vehicle - A torn or collapsed rubber hanger insulator lets the exhaust pipe contact the floor or frame, producing a metallic knock that changes pitch with engine RPM or road speed.
• Exhaust pipe visibly sagging or sitting unevenly - A broken bracket or snapped hanger rod allows sections of the system to drop out of alignment, which can eventually crack flex pipes or pull apart slip-fit connections.
• Exhaust smell inside the cabin or at idle - A blown or cracked exhaust flange gasket allows raw exhaust gases to escape before the catalytic converter, pulling fumes toward the firewall and HVAC intake.
• Hissing or ticking noise from under the hood that fades as the engine warms - A warped or leaking manifold flange often seals partially once metal expands with heat; cold-start ticking that disappears is a classic symptom.
• Rust flaking or visible cracks on flange faces or bracket welds - Surface rust is cosmetic, but deep pitting or cracked welds on brackets and flange faces mean the part is structurally compromised and should be replaced before it fails completely.

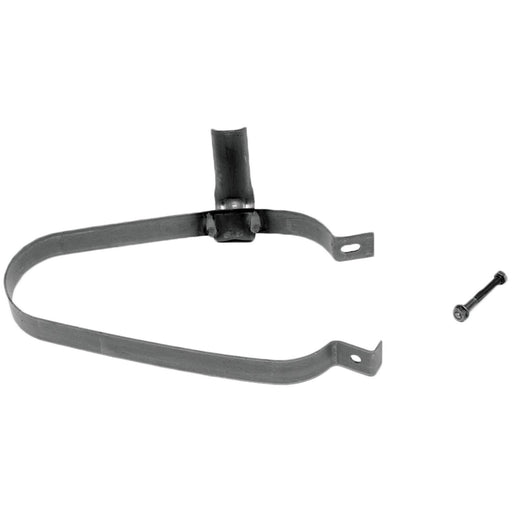

• Muffler strap has separated or is hanging by one bolt - A failed muffler strap puts full load on adjacent hangers and can allow the muffler to contact the driveshaft or wheel well at speed.

Frequently asked questions

• How often should exhaust hanger insulators be replaced? There's no fixed service interval, but rubber insulators typically last 80,000–120,000 miles under normal conditions - less in high-salt environments. Inspect them whenever you're under the vehicle for an oil change or brake job. Replace any that show cracking, tearing, or significant softening.
• Are OEM exhaust hangers and flanges worth the price over aftermarket? OEM parts guarantee correct mounting geometry and rubber durometer, which matters for vehicles with tight undercarriage clearances. Quality aftermarket flanges in aluminized or stainless steel are a practical upgrade over OEM mild steel in corrosion-prone climates. Avoid no-name rubber insulators - durometer variance causes premature failure.
• What else should I replace when swapping a broken exhaust flange? Always replace the flange gasket at the same time - reusing a compressed or heat-damaged gasket almost guarantees a re-leak. If the flange bolts are corroded, replace them too; broken studs mid-job are a major time sink. Budget $15–$60 in hardware beyond the flange itself for a clean repair.
