Transmission Bands

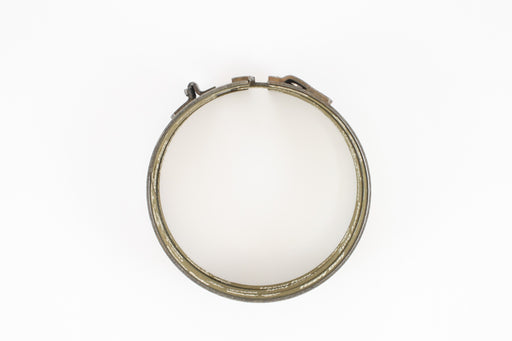

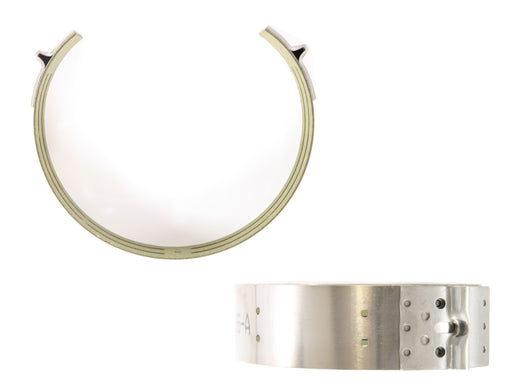

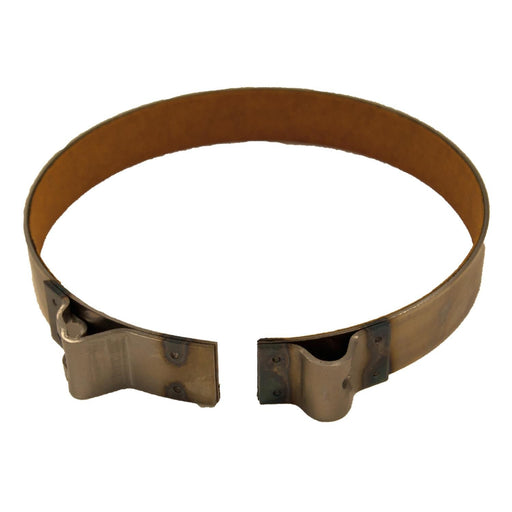

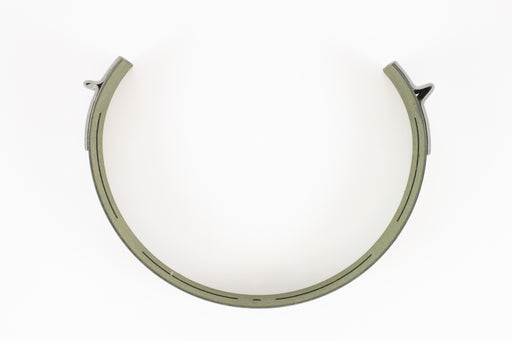

Automatic transmission bands are friction-lined steel straps that wrap around clutch drums inside your gearbox, holding or releasing specific components to control gear changes. When a band wears thin, glazes over, or its adjustment goes out of spec, you'll notice slipping, delayed engagement, or the transmission hunting between gears. Most manufacturers recommend inspecting or adjusting bands every 30,000–60,000 miles during a transmission service; full replacement is typically needed at 60,000–100,000 miles depending on driving conditions and fluid maintenance history. When shopping, verify the band width, lining material, and drum diameter match your transmission model - a 2" Kickdown band on a 727 TorqueFlite is not interchangeable with a 1-5/8" front band from a 46RE. OEM bands offer a guaranteed fit, while quality aftermarket options from brands like Raybestos and Transtar often use higher-friction lining compounds that perform well in performance or towing applications.

Signs you need replacement

• Transmission slips between gears or into neutral under load. A worn or glazed band can no longer hold the drum firmly, causing the transmission to briefly lose drive - especially noticeable when accelerating from a stop or under tow load.
• Delayed or harsh engagement when shifting from Park or Neutral into Drive or Reverse. A band that's out of adjustment or nearing the end of its lining life creates inconsistent clutch-drum contact, resulting in a clunk or long pause before the vehicle moves.
• RPMs flare up without a corresponding increase in vehicle speed. If engine RPM climbs normally but acceleration lags behind, a slipping band is a primary suspect - distinct from a torque converter issue because it typically occurs at a specific gear change rather than throughout all ranges.
• Transmission fluid is burnt or has a dark, sooty appearance. Band lining material sheds as it wears; the debris degrades fluid rapidly and shows up as dark, burnt-smelling fluid during a dipstick check - a sign that internal wear is already in progress.
• Transmission stuck in a specific gear or skipping a forward gear entirely. If second or third gear drops out, the band responsible for holding that gear's drum has likely failed structurally or snapped, requiring immediate inspection before further internal damage occurs.

Frequently asked questions

• How often do automatic transmission bands need to be adjusted or replaced? Most service intervals call for band adjustment every 30,000 miles or at each transmission fluid change. Bands typically last 60,000–100,000 miles before the lining wears beyond the adjustment range. Vehicles used for towing, performance driving, or frequent stop-and-go traffic will see shorter service life - inspect at every major transmission service.
• Are aftermarket transmission bands as reliable as OEM, and does lining material matter? Quality aftermarket bands from Raybestos, Transtar, or Alto Products are widely used in professional rebuilds and often exceed OEM lining thickness. Lined material matters significantly - paper-based linings suit light-duty daily driving, while carbon-fiber or Kevlar-composite linings handle higher heat loads in towing or performance applications. Confirm lining type matches your use case before ordering.
• What else should I replace when installing new transmission bands? Replace the band's adjuster screw and locknut at the same time - they're inexpensive and a worn adjuster makes it impossible to set proper band clearance. A full rebuild kit (clutch packs, seals, gaskets) is recommended if the transmission is already out of the vehicle. Budget $15–$60 for a single band; $150–$400 for a complete band-and-clutch service kit.
