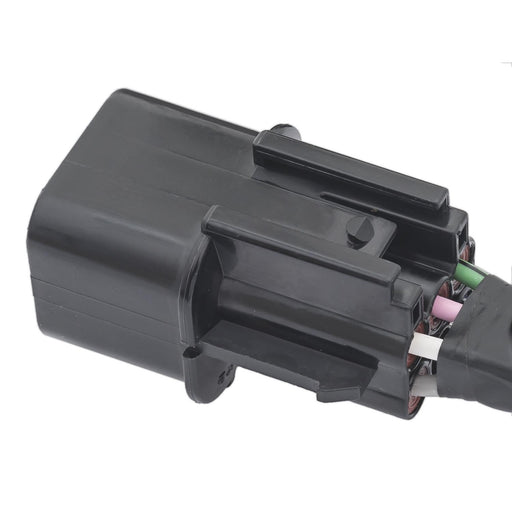

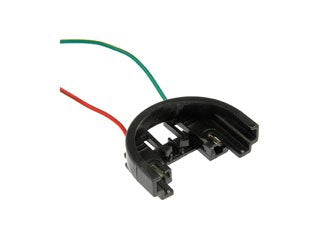

Ignition electrical connectors are the wiring harness terminals that deliver power and signal to every component in your ignition system — coils, switches, control modules, crank and cam position sensors, distributors, and glow plug sensors. They fail gradually: the plastic housing cracks from heat cycling, terminals corrode from moisture intrusion, or the locking tab breaks and allows intermittent contact. A single bad connector can mimic a failed coil or sensor, leading to unnecessary part swaps. Most connectors are not serviced on a mileage schedule — they're replaced on condition or when an adjacent component is swapped. When buying, match the connector by OEM part number or pigtail wire count and terminal gender; universal connectors rarely seal or lock correctly. OEM-spec connectors use weather-sealed housings and tin- or gold-plated terminals that resist corrosion better than bare copper alternatives. Confirm compatibility by year, make, model, and engine code — connector bodies often changed mid-production-year.

Signs you need replacement

• Misfire codes with no failed coil or plug: P0300–P0312 misfire codes that move cylinders when you swap coils often point to a corroded or loose ignition coil connector rather than the coil itself.
• No-start or hard start with a known-good ignition switch: An ignition switch connector with burned or melted terminals restricts current flow, causing intermittent crank-no-start or a switch that tests fine on the bench but fails in the car.
• Crank or cam sensor codes that return after sensor replacement: P0335, P0340, and related codes that come back within a few drive cycles after a new sensor is installed usually indicate a corroded sensor connector, not a second failed sensor.
• Visible damage at the connector body: Melted plastic, green corrosion on terminals, broken locking tabs, or chafed wires at the strain relief are immediate replacement triggers — these won't self-correct and will worsen with heat.
• Intermittent ignition warning light or stall at operating temperature: Heat expands corroded terminals enough to break contact; if symptoms appear after the engine warms up and clear after cooling down, check ignition control module and coil connectors first.

Frequently asked questions

• Do ignition connectors need to be replaced on a set interval? No scheduled mileage interval exists for ignition connectors. In practice, most are replaced between 80,000–150,000 miles as heat and vibration degrade the housing and terminals — or whenever a connected component is removed and the connector shows corrosion, brittleness, or a broken locking tab.
• Are OEM connectors worth the premium over aftermarket pigtails? For ignition coil and control module connectors, OEM or OEM-equivalent connectors are the better choice — they use the correct terminal material, match the factory seal profile, and lock securely. Generic aftermarket pigtails vary in terminal plating and housing fit; they're acceptable for low-current sensor connectors like cam and crank sensors but riskier on high-duty-cycle coil circuits.
• What should I replace at the same time as an ignition connector? Replace the connected component's sealing grommet or boot if present, and inspect the mating connector on the harness side for pushed-back or spread terminals. Connector repair kits typically run $8–$35 per pigtail. If wiring at the connector shows heat damage beyond the terminal, a section splice or full harness repair is needed alongside the connector swap.
