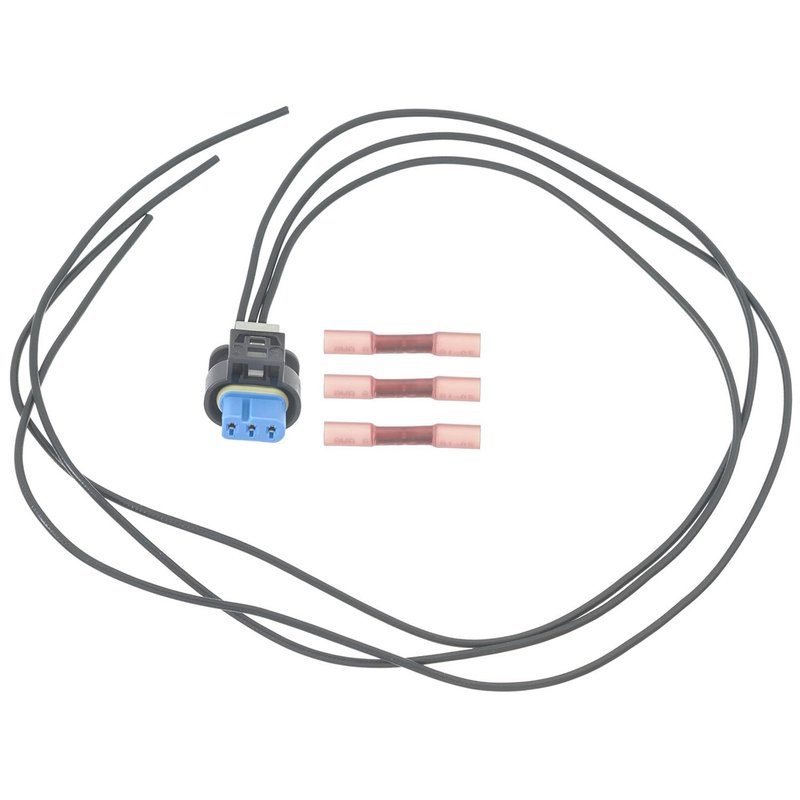

Standard Ignition S2820 Engine Camshaft Position Sensor Connector - Front or Rear

Engine Camshaft Position Sensor Connector for OE Repair

Standard Ignition S2820 is an engine camshaft position sensor connector built for repairing damaged sensor wiring on a wide range of Ford, GM, Cadillac, Lincoln, Buick, Chevrolet, and GMC applications. It features a male oval connector housing with 3 female blade terminals and 18-gauge wiring for a direct electrical connection.

Use this connector when you need a clean replacement for a broken, heat-damaged, or corroded camshaft position sensor plug on vehicles such as the Ford F-150, Chevrolet Silverado 1500, and Cadillac XT5. The S2820 part number is also a useful reference when searching for an OE-style camshaft sensor connector replacement.

Key Features

• Engine camshaft position sensor connector for ignition and electrical repair
• Male connector with oval housing shape
• 3 female blade terminals for sensor wiring repair
• 18-gauge harness with 19-inch harness length
• 48 cm harness length for routing flexibility
• 0-degree bend angle for straight installation paths
• Cross-reference part number: this part cross-references 1P2642 and EC2720 for the same application

Detailed Description

Standard Ignition S2820 is designed for camshaft position sensor circuit service where the original connector has failed or the terminals no longer maintain a secure electrical contact. The oval connector body, 3-terminal blade layout, and female terminal design support a straightforward repair on vehicles that use this connector style at the camshaft sensor. Search terms such as Ford F-150 camshaft position sensor connector, Chevrolet Silverado 1500 sensor pigtail, and Cadillac XT5 camshaft sensor connector all align with this application family.

Compatible vehicle coverage includes 2009-2024 model years across multiple platforms, including Ford Mustang, Explorer, Edge, Transit, F-150, and Super Duty trucks; Chevrolet Cruze, Sonic, Trax, Corvette, Silverado 1500, and Colorado; GMC Sierra 1500, Acadia, Canyon, Yukon, and Hummer EV Pickup; Cadillac CT4, CT5, CT6, XT4, XT5, XT6, Escalade, and ELR; plus Lincoln, Buick, Pontiac, and Chevrolet Volt applications listed in the fitment data. The S2820 part number is commonly used when replacing a damaged camshaft sensor connector on these vehicles.

What It Helps Fix

• Broken or brittle camshaft position sensor connector housing
• Corroded or heat-damaged sensor terminals
• Intermittent camshaft sensor signal caused by poor terminal contact
• Wiring repairs after connector melt, chafe, or contamination
• Check engine light concerns tied to camshaft position sensor circuit faults

Installation Notes and Tips

Verify connector shape, terminal count, and wire layout before splicing into the vehicle harness. This connector uses a male oval housing with 3 female blade terminals and a straight 0-degree bend angle, so routing should match the original sensor location. Confirm the application by year, make, model, and position, including rear or front listings where specified in the fitment data. For example, Fits 2020-2024 Cadillac XT6, rear; Fits 2023-2024 GMC Hummer EV Pickup, front; and Fits 2019-2024 Chevrolet Silverado 1500, N/A.

Quality Assurance

Standard Ignition electrical connectors are built for service replacement use across OE-style applications. Part number S2820 is cataloged for direct fitment matching against the listed vehicle applications and interchange references.
