Differential

More Information

Your differential splits torque between wheels while allowing them to rotate at different speeds through turns — and when it fails, you'll know fast. This collection covers the full range of differential components: ring and pinion gear sets, differential covers, mounts, carriers, end yokes, bearing sets, and the actuator hardware that controls 4WD and AWD engagement. Ring and pinion sets are the most common rebuild item, typically needed after 150,000–200,000+ miles or following impact damage, fluid neglect, or a failed bearing. Differential covers are often replaced after stripped drain plugs or cracks, and many owners upgrade to cast aluminum or stamped steel units with magnetic drain plugs for better fluid maintenance. When buying, confirm your axle ratio (e.g., 3.73, 4.10), ring gear diameter, and whether your application uses an open, limited-slip, or locking differential — these specs determine fitment and are not interchangeable across configurations.

Signs you need replacement

• Whining or howling noise that changes with vehicle speed — typically points to worn ring and pinion gears or failing differential bearings. The pitch usually rises and falls with road speed rather than engine RPM.
• Clunking on acceleration or deceleration — a loose or worn end yoke, damaged pinion flange, or a failed differential mount can cause driveline lash that produces a distinct clunk when load is applied or released.
• Vibration felt through the floor or drivetrain at highway speeds — can indicate a dynamic dampener failure, worn differential mount, or an out-of-tolerance pinion bearing allowing excessive driveshaft runout.

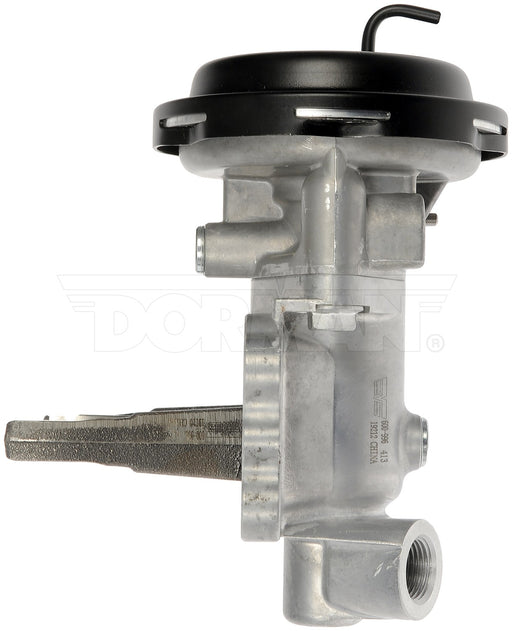

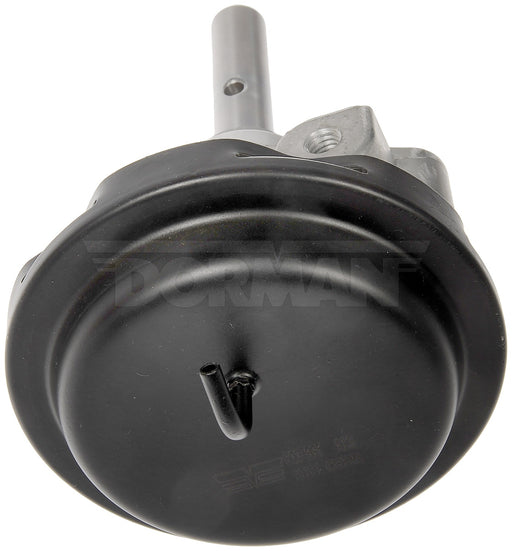

• 4WD or AWD fails to engage or disengages unexpectedly — often caused by a failed 4WD actuator fork, actuator valve, wiring harness fault, or a seized AWD coupling oil pump unable to build engagement pressure.
• Gear oil leaking from the differential cover or pinion seal area — a warped or cracked cover, stripped bolt holes, or a blown cover gasket will allow fluid loss that accelerates internal gear and bearing wear if not addressed promptly.
• Grinding or skipping sensation in tight turns on AWD vehicles — a worn AWD coupling oil pump or failing differential clutch pressure control valve can cause the rear clutch pack to drag, producing a binding sensation during low-speed cornering.

Frequently asked questions

• How often should differential fluid and internal components be inspected? Differential fluid should be changed every 30,000–60,000 miles depending on use — towing and off-road driving shorten that interval significantly. Internal components like ring and pinion sets and bearings don't have a fixed replacement schedule; inspect them whenever you're in the diff for fluid, seal, or cover work, or any time you hear gear noise.
• Is an OEM ring and pinion set worth the premium over aftermarket? For daily drivers, quality aftermarket sets from brands like Motive Gear or Richmond Gear are well-proven and typically cost 30–50% less than OEM. OEM is the safer call for vehicles under warranty or where factory gear ratios and tolerances are critical. Always verify the gear ratio and tooth count match your axle — mismatched ratios between front and rear axles on AWD/4WD vehicles will cause drivetrain bind and damage.
• What else should I replace when rebuilding a differential? At minimum, replace the pinion bearing set, carrier bearings, pinion seal, and cover gasket any time you pull the ring and pinion. A differential bearing set runs $40–$120, and skipping it during a ring and pinion job is a common cause of premature re-failure. Full ring and pinion kits with bearings and seals included typically run $200–$600 for most light truck applications.
