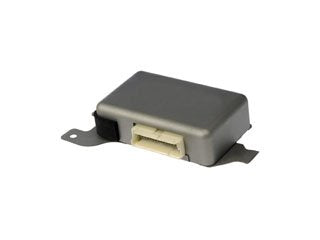

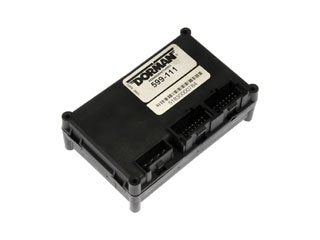

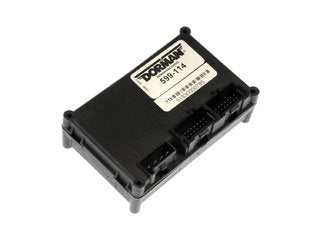

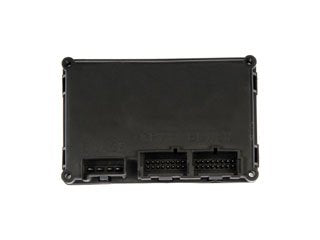

The transfer case control module (TCCM) is the electronic brain behind your 4WD system — it interprets switch inputs, monitors vehicle speed and wheel sensors, and commands the transfer case actuator to shift between 2H, 4H, and 4L. When the module fails, the 4WD system becomes unreliable or completely inoperable. TCCMs are vulnerable to moisture intrusion, voltage spikes, and corrosion on the connector pins, particularly on GM trucks and SUVs from the late 1990s through the 2000s. Replacement is typically triggered by failure rather than a set interval. When buying, prioritize OEM or remanufactured units programmed for your specific year, make, model, and drivetrain — many modules are VIN-specific or require initialization with a scan tool after installation. Confirm the part number matches your original unit, as subtle hardware revisions between model years can cause compatibility issues even within the same nameplate.

Signs you need replacement

• 4WD mode won't engage or disengage. You press the 4H or 4L button and nothing happens, or the system stays locked in one mode — a classic sign the TCCM has lost communication with the transfer case actuator.
• Service 4WD or 4WD warning light stays on. A stored fault code related to the transfer case control circuit (common codes include C0327, C0374, or U1000 on GM platforms) often points directly to a failing or failed module.
• Erratic or spontaneous 4WD shifts while driving. The system randomly cycles through modes without input, which can create unexpected driveline binding and is a safety concern on dry pavement.
• No indicator lights on the 4WD switch panel. If the mode indicator LEDs go dark and the system stops responding, the TCCM may have lost power or ground — though check fuses and connectors before condemning the module.
• Scan tool shows no communication with the transfer case module. A "module not found" or U-code bus fault during diagnostics typically means the TCCM has failed internally or has a wiring fault at the connector.

Frequently asked questions

• Does a replacement TCCM need to be programmed to my vehicle? It depends on the platform. Many remanufactured TCCMs for GM trucks (Silverado, Sierra, Tahoe, Yukon, Suburban) are sold pre-programmed and plug-and-play for specific applications, but some require initialization using a Tech 2 or equivalent scan tool. Always verify programming requirements for your year and model before purchasing.
• Is an OEM transfer case control module worth the premium over aftermarket? For TCCMs, OEM or quality remanufactured units (such as those from AC Delco) are generally the safer choice — generic aftermarket modules have a mixed track record on complex platforms like GM's NVT246 and NP246 transfer cases. If budget is a concern, a reputable remanufactured unit with a warranty is a solid middle ground.
• What's the typical cost for a TCCM replacement, and is it a DIY job? Module cost typically runs $80–$300 depending on application and brand, with dealer units often higher. Installation is straightforward — usually a single connector and one or two mounting fasteners — making it a manageable DIY repair. The harder part is accurate diagnosis; confirm the module is actually at fault before replacing it, since actuator and wiring faults share the same symptoms.
