Motors

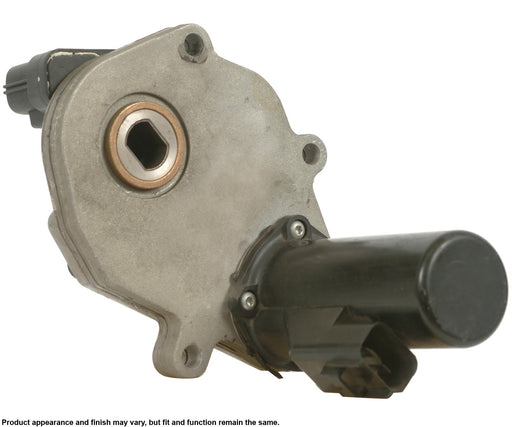

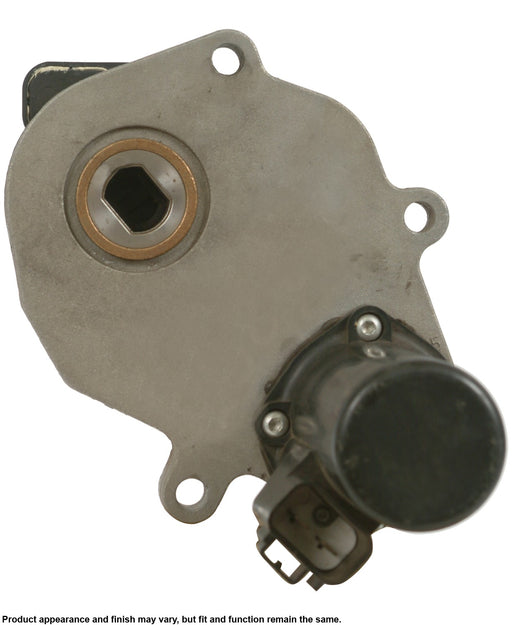

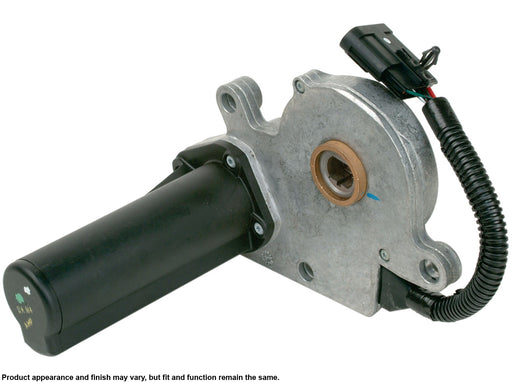

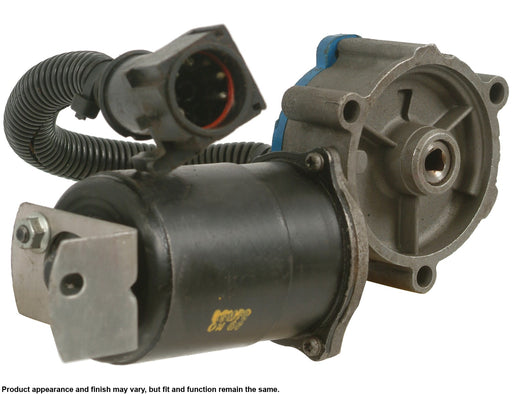

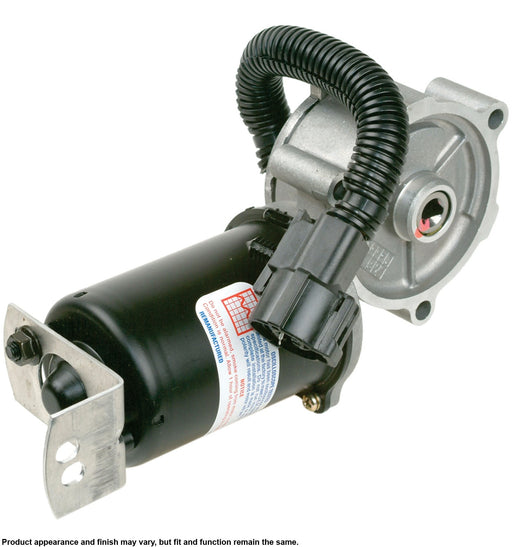

Transfer case motors are the electric actuators that shift your 4WD system between 2H, 4H, and 4L modes - or engage and disengage the front axle on electronically controlled AWD systems. When the motor fails, the transfer case gets stuck in one range or refuses to shift at all. Most motors don't follow a strict mileage replacement schedule; they're replaced on failure, though harsh duty cycles and water intrusion accelerate wear. The single transfer case motor gear in this catalog is a common failure point on GM applications where the plastic sector gear strips before the motor itself fails. When buying, confirm your exact transfer case model (BorgWarner 4405, NVG 246, NP 261XHD, etc.) - not just year, make, and model - since many trucks share chassis platforms but run different transfer cases. OEM units offer the best plug-and-play fit; quality aftermarket options from Standard Motor Products or Four Seasons are viable at a lower price point.

Signs you need replacement

• 4WD mode won't engage or disengage. You select 4H or 4L and nothing happens - no shift, no indicator light change - because the motor isn't generating enough torque to move the shift fork.
• 4WD indicator light flashes continuously or shows an error code. The PCM or TCCM is commanding a shift but not receiving a position confirmation signal, often pointing to a seized or failed motor.
• Grinding or buzzing noise from the transfer case during shift attempts. A stripped motor gear (especially on GM 246/261 units) creates this sound as the motor spins without moving the encoder ring.
• Transfer case gets stuck mid-shift between ranges. The motor stalls partway through a shift cycle, leaving the unit in a bind that can cause driveline vibration or all-wheel binding at road speed.
• Diagnostic trouble codes P0842, P1875, or transfer-case-specific shift motor codes. These codes confirm the TCM has detected an electrical fault or out-of-range feedback from the motor circuit.

Frequently asked questions

• How do I know which transfer case motor fits my truck? Year, make, and model alone isn't enough - you need the transfer case ID tag, usually stamped on a metal plate on the case itself. Common platforms like the GM 1500 ran both NVG 246 and NVG 261 depending on engine and trim, and those motors are not interchangeable. Pull the tag number before ordering.
• Is OEM worth it for a transfer case motor, or will aftermarket hold up? OEM (AC Delco, Motorcraft, Mopar) guarantees exact fitment and factory torque specs, which matters on high-mileage trucks where connectors and mounting surfaces may be worn. Aftermarket units from Standard Motor Products or Cardone are a solid mid-range choice, typically running $60–$150 less than OEM with comparable durability for normal use.
• How hard is it to replace a transfer case motor yourself, and what else should I replace at the same time? Most transfer case motors are 2–4 bolt external replacements accessible without dropping the transfer case - a competent DIYer can complete the job in under an hour. While you're in there, inspect or replace the encoder ring, mode switch, and - on GM applications - the plastic sector gear, since they fail together and share the same labor window.
