Gaskets and Sealing Systems

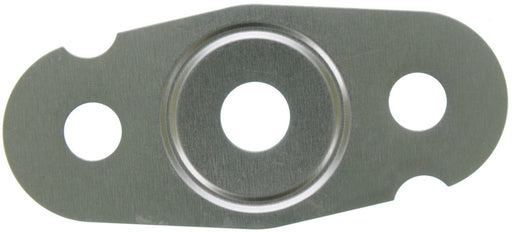

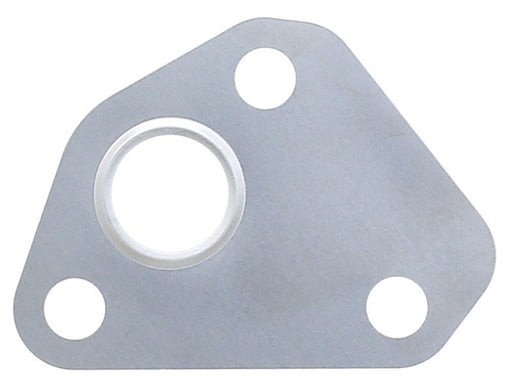

Emission control gaskets and seals maintain the integrity of your EGR system, crankcase ventilation, secondary air injection, and sensor connections - all components the EPA and your ECU depend on for accurate combustion management. EGR valve and tube gaskets are the most frequently replaced, typically failing between 60,000–100,000 miles or whenever the EGR valve itself is serviced. Carbon buildup, heat cycling, and coolant exposure (especially on EGR cooler gaskets) accelerate deterioration. Failed seals allow exhaust gases to leak at unmonitored points, skewing sensor readings and triggering check engine codes. When buying, confirm the gasket material matches the application: multi-layer steel (MLS) for high-heat EGR cooler locations, graphite or composite for valve-to-intake interfaces. OEM-spec gaskets are worth the premium on EGR cooler kits and crankcase breather assemblies where precise sealing geometry matters. Always verify by year, make, model, and engine displacement - many EGR gaskets vary by engine family even within the same model year.

Signs you need replacement

• Check engine light with EGR-related codes (P0400–P0409): An exhaust gas leak at a deteriorated EGR valve or tube gasket disrupts flow readings and will consistently trigger these codes, even after the valve itself has been cleaned or replaced.
• Rough idle or hesitation under load: A leaking EGR valve gasket allows unmetered exhaust gas into the intake at the wrong time, leaning out the mixture and causing stumbling, especially noticeable at low RPM or during light throttle transitions.
• Visible soot or carbon deposits around the EGR valve or tube connections: Black residue around a joint is a reliable visual indicator that the gasket is no longer sealing - exhaust blowby leaves a distinct carbon signature on the surrounding metal.
• Coolant loss without an obvious external leak: On diesel and some direct-injection engines with EGR coolers, a failed cooler gasket can allow coolant to enter the intake tract - look for white smoke at startup or a sweet exhaust smell with no reservoir-level explanation.
• Oil mist or fumes from the crankcase vent area: A cracked crankcase breather gasket or worn vent valve seal lets blowby gases escape before the PCV system can recycle them, often causing an oily film on nearby components or a burning smell in the cabin.

Frequently asked questions

• Do I need to replace EGR gaskets every time I replace the EGR valve? Yes - always replace the valve gasket and any tube gaskets disturbed during removal. Reusing compressed or heat-cycled gaskets on a new valve is a common cause of repeat leaks. Most EGR valve kits include a replacement gasket; if yours doesn't, order one separately before starting the job.
• Are aftermarket EGR gaskets as reliable as OEM? For standard EGR valve and tube gaskets, quality aftermarket brands (Victor Reinz, Fel-Pro, Stone) perform comparably to OEM at a lower cost. For EGR cooler gasket kits - particularly on Ford 6.0L/6.4L Power Stroke and GM Duramax diesels - OEM or upgraded aftermarket kits with improved materials are strongly recommended, as failures on these engines can be catastrophic.
• What else should I replace at the same time as an EGR valve gasket? If the EGR valve is coming out, inspect and replace the EGR tube gasket and any associated O-rings while access is clear. On higher-mileage vehicles, replacing the EGR cooler gasket at the same time adds minimal labor cost and avoids a repeat teardown. Budget $15–$60 in gaskets total for most passenger car EGR service.
