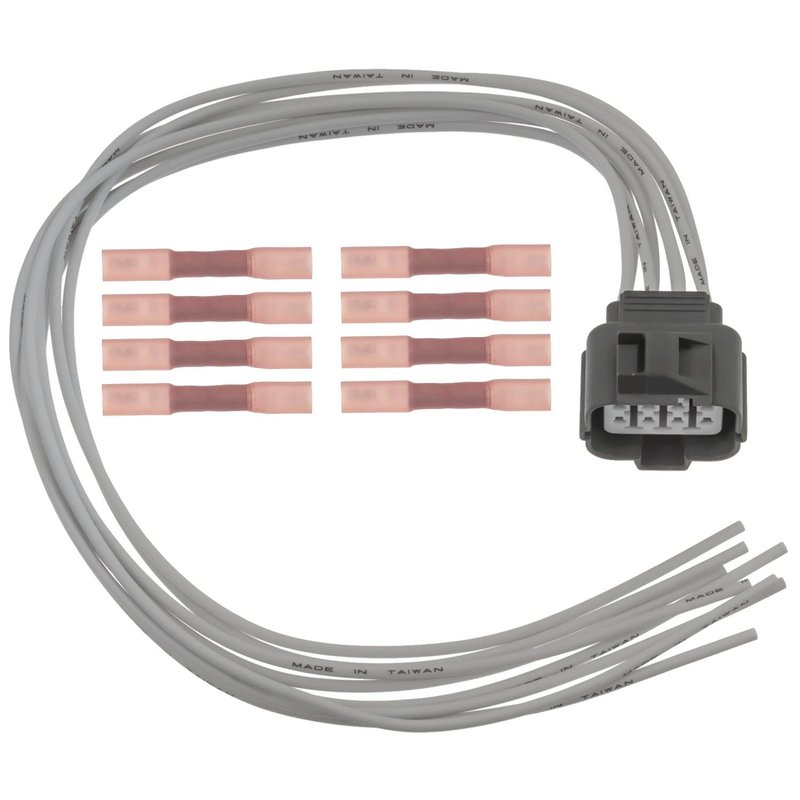

Standard Ignition S2968 Engine Camshaft Position Sensor Connector

Engine Camshaft Position Sensor Connector

Standard Ignition S2968 is an engine camshaft position sensor connector built for direct electrical repair on a range of Acura, Honda, Saturn, and Suzuki applications. It features a rectangular male connector body with an 8-blade female terminal layout and 18-gauge wiring for service on camshaft position sensor circuits.

Use this connector when diagnosing or repairing damaged sensor wiring on vehicles such as the Honda Civic, Honda Accord, and Acura TL. Standard Ignition S2968 is a practical replacement for restoring a secure connection at the camshaft position sensor.

Key Features

• Engine camshaft position sensor connector
• Rectangular connector shape with male connector gender
• 8 female blade terminals
• 8-wire harness with 18 ga. wire
• 17 in. harness length for routing flexibility
• 0-degree bend angle
• Direct-fit electrical connector for repair work

Detailed Description

Standard Ignition S2968 is designed for camshaft position sensor connector replacement where the original plug is heat-damaged, broken, corroded, or no longer locking securely. The connector configuration includes a rectangular housing, female blade terminals, and an 8-wire layout to match the electrical interface used on supported vehicles. This part cross-references EC2871 for the same application.

Compatible With 1991-2005 Acura NSX, 1993-1995 Acura Legend, 1996-2008 Acura RL, 1996-1998 Acura TL, 2003-2006 Acura MDX, 2004-2008 Acura TL, 1992-2000 Honda Civic, 2000-2001 Honda Insight, 2003-2007 Honda Accord, 2004-2006 Honda Odyssey, 2005-2008 Honda Pilot, 2006-2008 Honda Ridgeline, 2004-2007 Saturn Vue, and 2007-2008 Suzuki Grand Vitara.

Common Repair Uses

• Broken or cracked camshaft position sensor connector housing
• Corroded or heat-damaged sensor terminals
• Intermittent camshaft position sensor signal loss
• Loose or unreliable electrical connection at the sensor
• Wiring repair after connector contamination or terminal wear

Installation Notes and Tips

Verify connector shape, terminal count, and wire layout against the original part before installation. Match the harness routing to the vehicle’s existing sensor lead path and inspect adjacent wiring for heat damage, oil intrusion, or terminal spread before completing the repair. Confirm proper terminal engagement and locking after connection.

Quality Assurance

Standard Ignition supplies replacement electrical components for service and repair applications, and S2968 is built to match the connector style used on the listed vehicles. Confirm fitment by year, make, and model before ordering.
