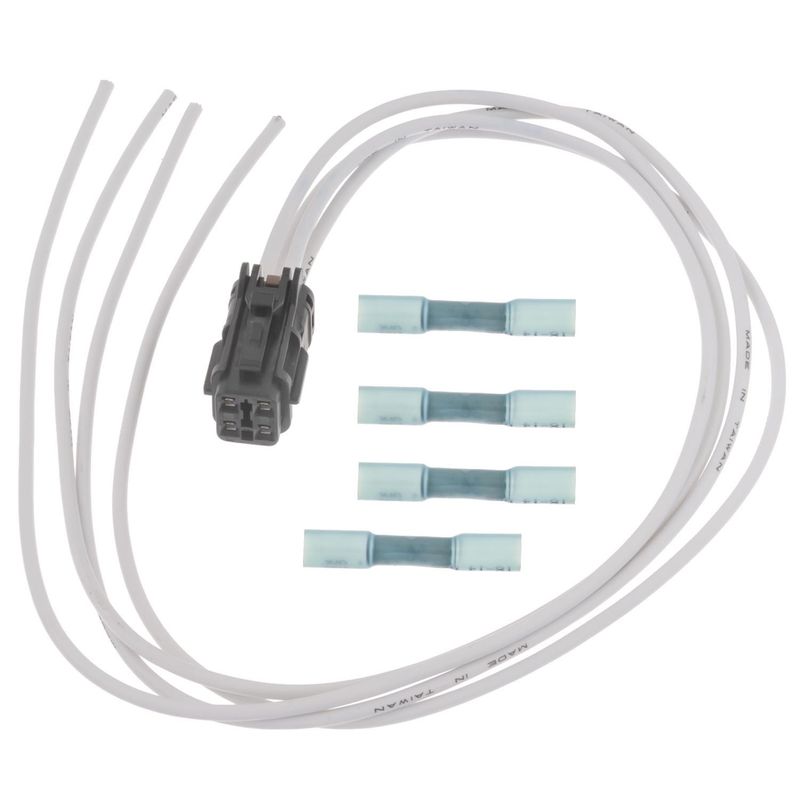

Standard Ignition S3177 Ignition Coil Connector
| Brand | Standard Ignition S3177 |
|---|---|
| Bend Angle (Deg.) | 0 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Gauge | 16 ga. |
| Harness Length (mm.) | 440 |
| Harness Length - cm | 45 |
| Harness Length - inches | 17.5 |
| Housing Length (in) | 1 |
| Terminal Gender | Female |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Water Resistant | No |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 16 |
| Wire Quantity | 4 |
| Fits | Hyundai and Kia · 15 vehicles |
Weatherproof sealed. Helps protect the connector from exposure at the ignition coil connection.
Square housing. Provides a compact connector shape with a secure terminal layout.
16-gauge wiring. Uses four blade terminals for ignition coil circuit repair.
Cross-references Standard Ignition S3177, CONB10906 and EC3201 for the same application. See all 4.
Ignition Coil Connector Overview
The Standard Ignition S3177 ignition coil connector is a weatherproof sealed electrical connector for ignition system repair. It is built with a square housing, 4 blade terminals, and 16-gauge wiring for a direct connector replacement on supported applications.
Compatible With Kia Magentis, Hyundai Sonata, and Kia Optima applications, this connector is a practical choice when the original coil connector is damaged, heat-affected, or no longer making a secure electrical connection. The S3177 part number is also referenced as S3177 for ordering and service lookup.
Key Features
- Weatherproof sealed connector for added protection at the connection point
- Square connector housing with one male connector interface
- 4 female blade terminals for ignition coil wiring
- 16-gauge harness construction with 17.5-inch harness length
- Standard Ignition S3177 ignition coil connector
Detailed Description
The Standard Ignition S3177 is an ignition coil connector designed for repair of the electrical link between the harness and ignition coil. Its sealed construction helps protect the connection from exposure, while the square housing and blade-terminal layout support a secure fit in the original connector location. The 4-wire, 16-gauge design matches the electrical demands of ignition coil circuits on the listed Kia and Hyundai applications. Use S3177 when replacing a worn, broken, or heat-damaged connector on a Kia Magentis, Hyundai Sonata, or Kia Optima.
What It Helps Fix
- Broken or cracked ignition coil connector housings
- Loose or intermittent coil electrical connections
- Heat-damaged wiring at the coil plug
- Corrosion-related connector failure
- Misfires caused by poor coil connector contact
Installation Notes and Tips
Verify connector shape, terminal count, and harness length before installation. Match the existing wiring layout and terminal orientation to the original connector to ensure proper electrical connection. Confirm fitment for the exact year and model before service, especially on Hyundai Sonata and Kia Optima applications.
Quality Assurance
Standard Ignition supplies service parts for electrical repair applications, and the S3177 is built as a sealed replacement connector for ignition coil service.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2006 | Kia | Magentis | 2.7L | V6 | — |
| 2005 | Hyundai | Sonata | 2.7L | V6 | — |
| 2005 | Kia | Magentis | 2.7L | V6 | — |
| 2005 | Kia | Optima | 2.7L | V6 | — |
| 2004 | Kia | Magentis | 2.7L | V6 | — |
| 2004 | Kia | Optima | 2.7L | V6 | — |
| 2003 | Kia | Magentis | 2.7L | V6 | — |
| 2003 | Kia | Optima | 2.7L | V6 | — |
| 2002 | Kia | Magentis | 2.7L | V6 | — |
| 2002 | Kia | Optima | 2.7L | V6 | — |
| 2001 | Hyundai | Sonata | 2.5L | V6 | — |
| 2001 | Kia | Magentis | 2.5L | V6 | — |
| 2001 | Kia | Optima | 2.5L | V6 | — |
| 2000 | Hyundai | Sonata | 2.5L | V6 | — |
| 1999 | Hyundai | Sonata | 2.5L | V6 | — |
