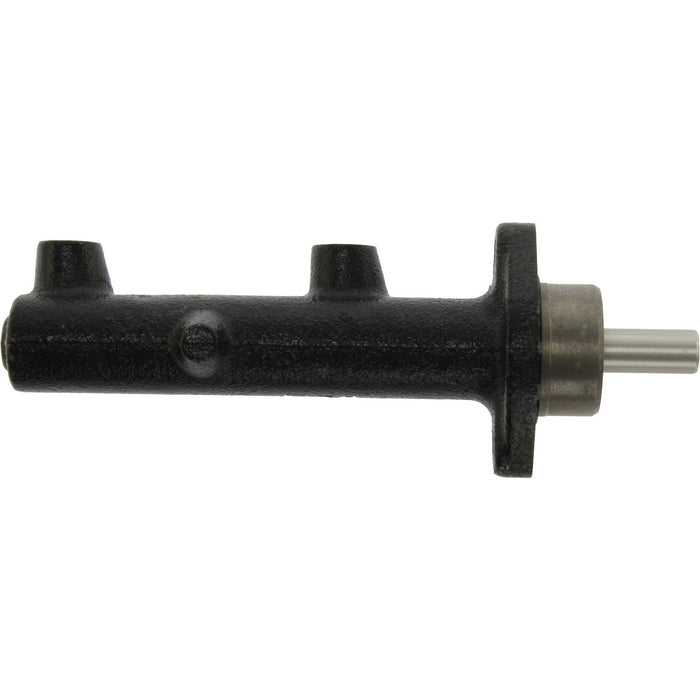

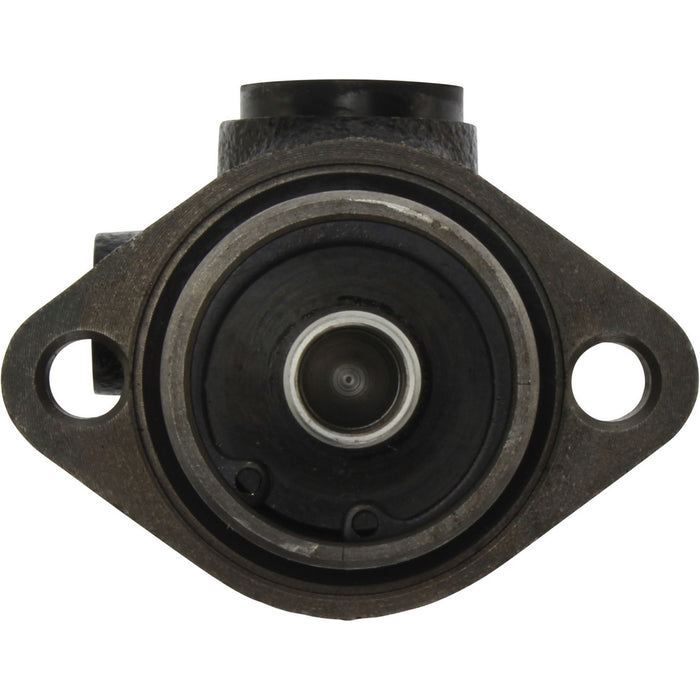

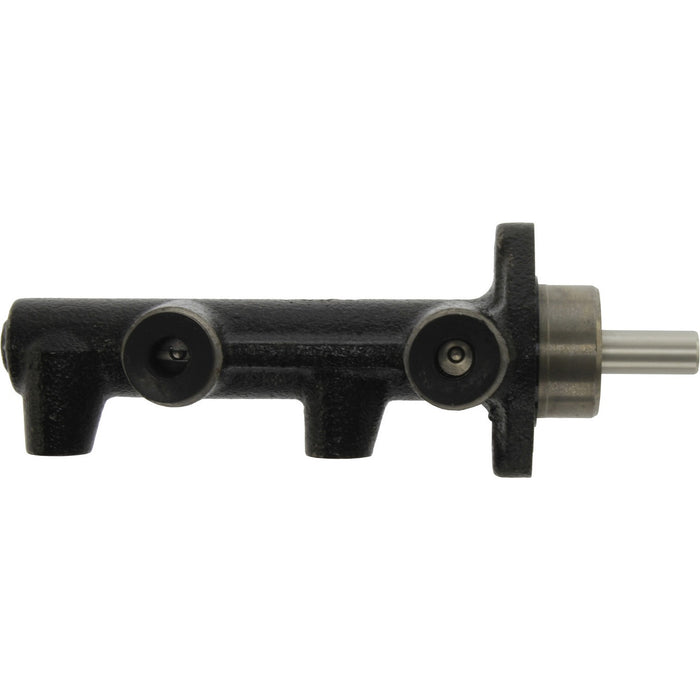

Centric 130.34102 Brake Master Cylinder

Vehicle Compatibility Chart

Part Attributes

• Bleeder Hoses Included:
  No
• Bore Size:
  0.813
• Bore Size:
  20.638
• Bore Type:
  Straight
• Boss, Nipple or Port: Front, Left: #A [cntrc]:
  M10-1.00 bbl
• Boss, Nipple or Port: Rear: #A [cntrc]:
  M10-1.00 bbl
• Brake Booster Included:
  No
• Cylinder Bore Dia in:
  0.8125
• Cylinder Bore Dia mm:
  20.64
• Gasket Or Seal Included:
  Yes
• Master Cylinder Bore Diameter:
  0.813
• Master Cylinder Bore Diameter:
  20.638
• Master Cylinder Cap Included:
  No
• Master Cylinder Material:
  Cast Iron
• Mounting Bracket Included:
  No
• Mounting Hardware Included:
  No
• Mounting Hole Quantity:
  2
• Port Quantity:
  2
• Primary Bore Diameter:
  0.813
• Primary Bore Diameter:
  20.638
• Primary Outlet Flare Type:
  Bubble
• Primary Outlet Flare Type [cntrc]:
  Bubble
• Primary Outlet Thread Diameter:
  10.000
• Primary Outlet Thread Pitch:
  1.00
• Primary Outlet Thread Size:
  M10-1.00
• Publication Bore [cntrc]:
  13/16"
• Push Rod Included:
  No
• Push Rod Lgth / Depth:
  1.95
• Push Rod: Length / Depth [cntrc] in:
  1.95
• Reservoir Included:
  No
• Reservoir Material:
  Plastic
• Reservoir Style:
  Removable
• Secondary Outlet Flare Type:
  Bubble
• Secondary Outlet Flare Type [cntrc]:
  Bubble
• Secondary Outlet Thread Diameter:
  10.000
• Secondary Outlet Thread Pitch:
  1.00
• Secondary Outlet Thread Size:
  M10-1.00
• Weight [cntrc] kgs:
  1.23
• Weight [cntrc] lbs:
  2.7

Part Interchanges
