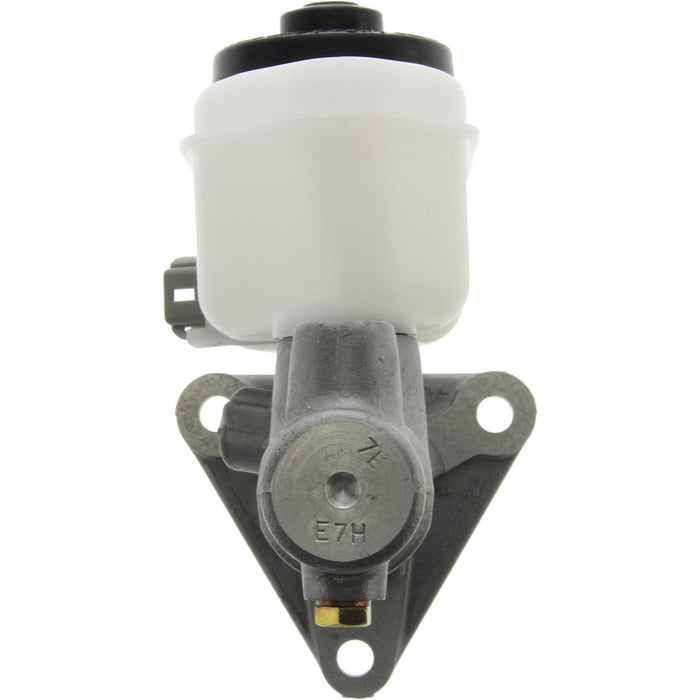

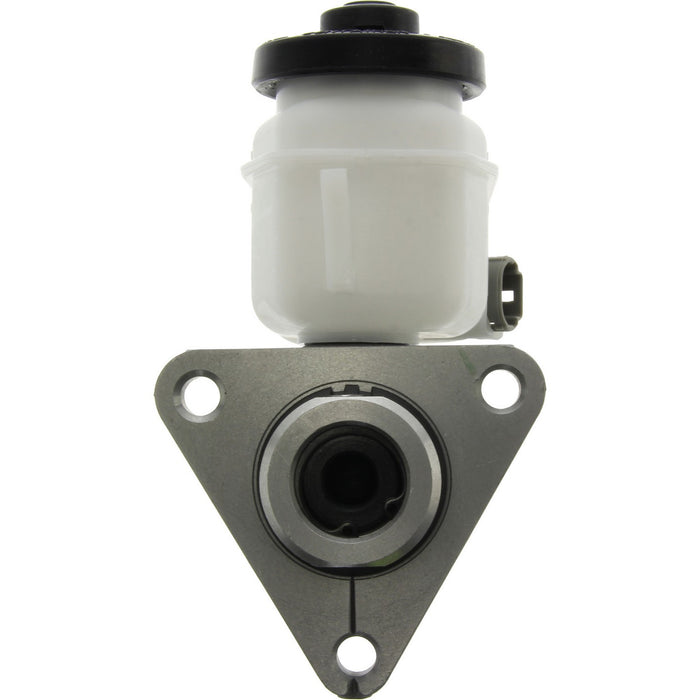

Centric 130.44117 Brake Master Cylinder

Vehicle Compatibility Chart

Part Attributes

• Bleeder Hoses Included:
  No
• Bore Size:
  0.875
• Bore Size:
  22.225
• Bore Type:
  Straight
• Boss, Nipple or Port: Bottom [cntrc]:
  M6-1.00 screw
• Boss, Nipple or Port: Front, Top [cntrc]:
  M10-1.00 inv
• Boss, Nipple or Port: Rear, Right: #A [cntrc]:
  M10-1.00 inv
• Brake Booster Included:
  No
• Cylinder Bore Dia in:
  0.8750
• Cylinder Bore Dia mm:
  22.23
• Master Cylinder Bore Diameter:
  0.875
• Master Cylinder Bore Diameter:
  22.225
• Master Cylinder Cap Included:
  Yes
• Master Cylinder Material:
  Aluminum
• Mounting Bracket Included:
  No
• Mounting Hardware Included:
  No
• Mounting Hole Quantity:
  3
• Port Quantity:
  2
• Port Quantity:
  3
• Primary Bore Diameter:
  0.875
• Primary Bore Diameter:
  22.225
• Primary Outlet Flare Type:
  Inverted
• Primary Outlet Flare Type [cntrc]:
  Inverted
• Primary Outlet Thread Diameter:
  10.000
• Primary Outlet Thread Pitch:
  1.00
• Primary Outlet Thread Size:
  M10-1.00
• Publication Bore [cntrc]:
  7/8"
• Push Rod Included:
  No
• Push Rod Lgth / Depth:
  0.686
• Push Rod: Length / Depth [cntrc] in:
  0.686
• Reservoir Included:
  Yes
• Reservoir Material:
  Plastic
• Reservoir Style:
  Removable
• Reservoir Type:
  Single
• Secondary Outlet Flare Type:
  Inverted
• Secondary Outlet Flare Type [cntrc]:
  Inverted
• Secondary Outlet Thread Diameter:
  10.000
• Secondary Outlet Thread Pitch:
  1.00
• Secondary Outlet Thread Size:
  M10-1.00
• Weight [cntrc] kgs:
  0.68
• Weight [cntrc] lbs:
  1.5
