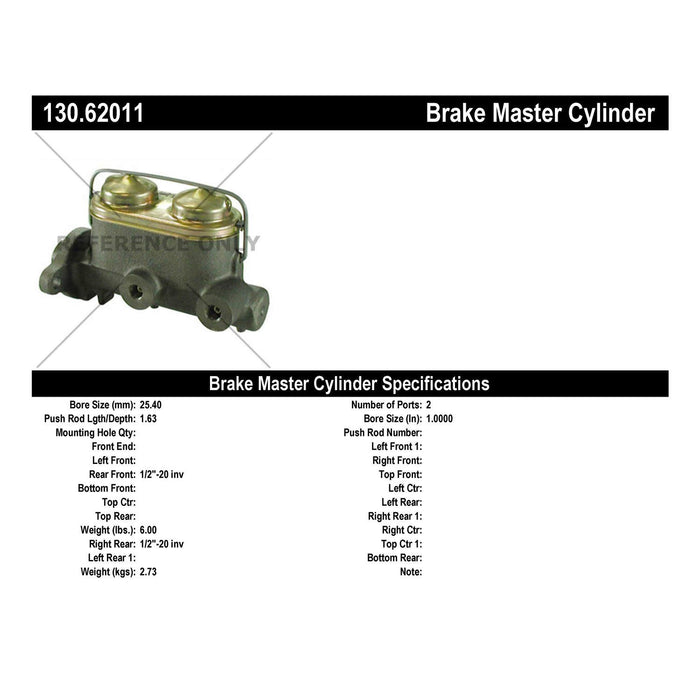

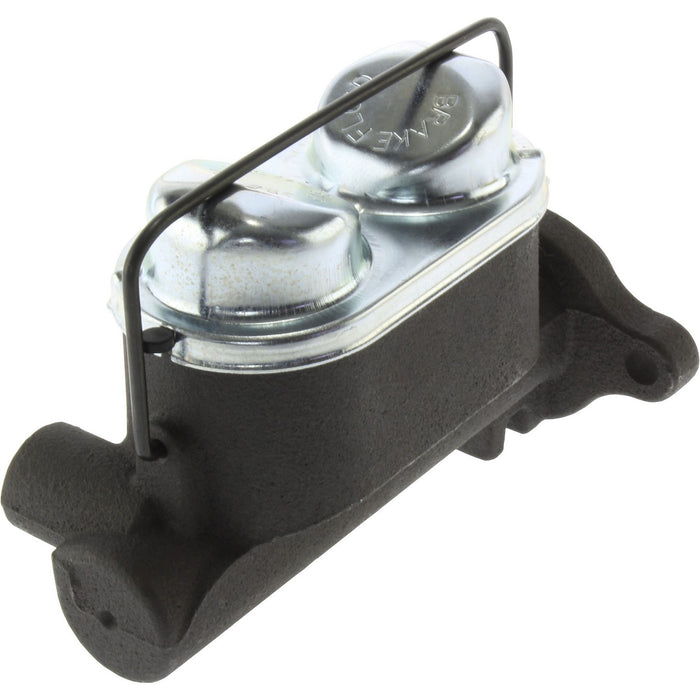

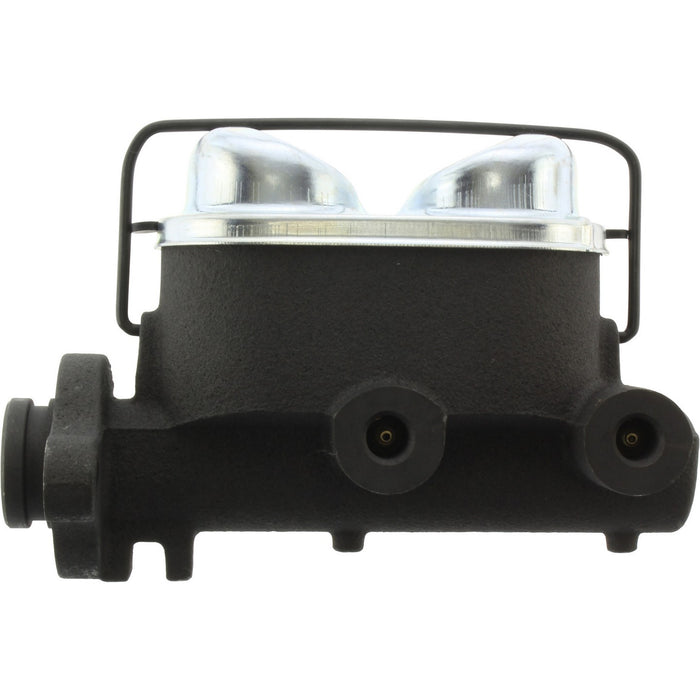

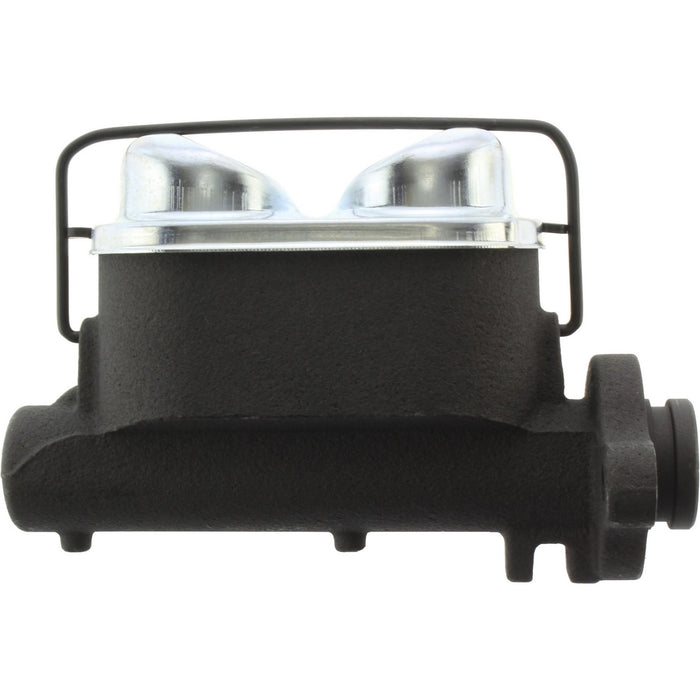

Centric 130.62011 Brake Master Cylinder

Vehicle Compatibility Chart

Part Attributes

• Bleeder Hoses Included:
  No
• Bore Size:
  1.000
• Bore Size:
  25.400
• Bore Type:
  Straight
• Boss, Nipple or Port: Front, Right: #A [cntrc]:
  1/2"-20 inv
• Boss, Nipple or Port: Rear, Right: #A [cntrc]:
  1/2"-20 inv
• Brake Booster Included:
  No
• Cylinder Bore Dia in:
  1.0000
• Cylinder Bore Dia mm:
  25.40
• Master Cylinder Bore Diameter:
  1.000
• Master Cylinder Bore Diameter:
  25.400
• Master Cylinder Cap Included:
  Yes
• Master Cylinder Material:
  Cast Iron
• Mounting Bracket Included:
  No
• Mounting Hardware Included:
  No
• Mounting Hole Quantity:
  2
• Port Quantity:
  2
• Primary Bore Diameter:
  1.000
• Primary Bore Diameter:
  25.400
• Primary Outlet Flare Type:
  Inverted
• Primary Outlet Flare Type [cntrc]:
  Inverted
• Primary Outlet Thread Diameter:
  0.500
• Primary Outlet Thread Size:
  1/2"-20
• Primary Outlet Threads Per Inch:
  20
• Publication Bore [cntrc]:
  1"
• Push Rod Included:
  No
• Push Rod Lgth / Depth:
  1.63
• Push Rod: Length / Depth [cntrc] in:
  1.63
• Reservoir Included:
  Yes
• Reservoir Material:
  Cast Iron
• Reservoir Style:
  Integral
• Reservoir Type:
  Single
• Secondary Outlet Flare Type:
  Inverted
• Secondary Outlet Flare Type [cntrc]:
  Inverted
• Secondary Outlet Thread Diameter:
  0.500
• Secondary Outlet Thread Size:
  1/2"-20
• Secondary Outlet Threads Per Inch:
  20
• Weight [cntrc] kgs:
  2.73
• Weight [cntrc] lbs:
  6
