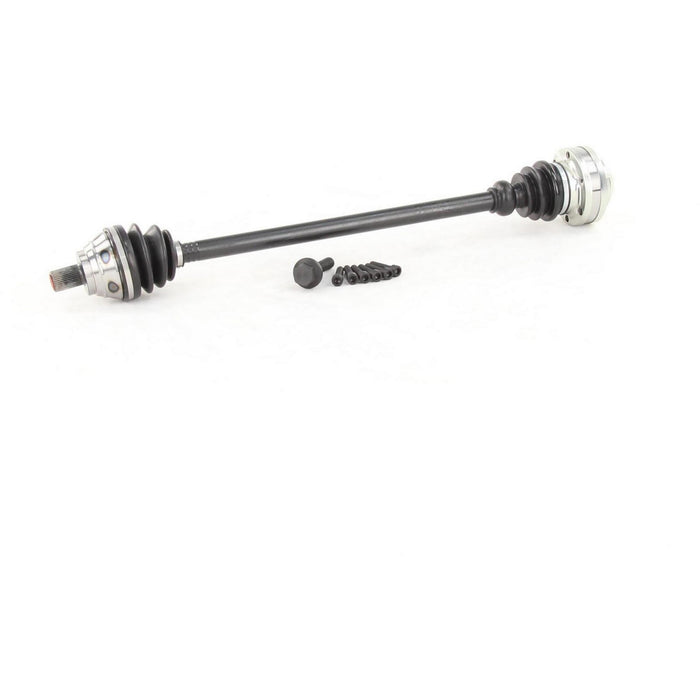

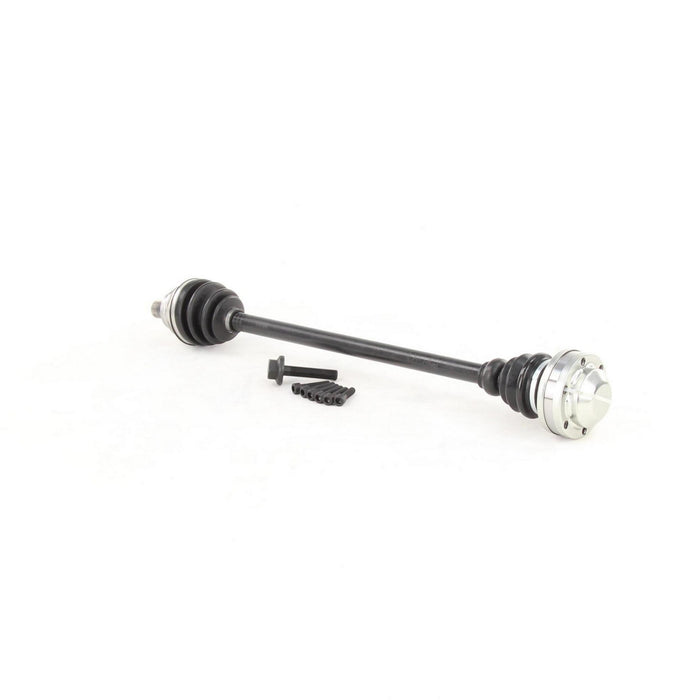

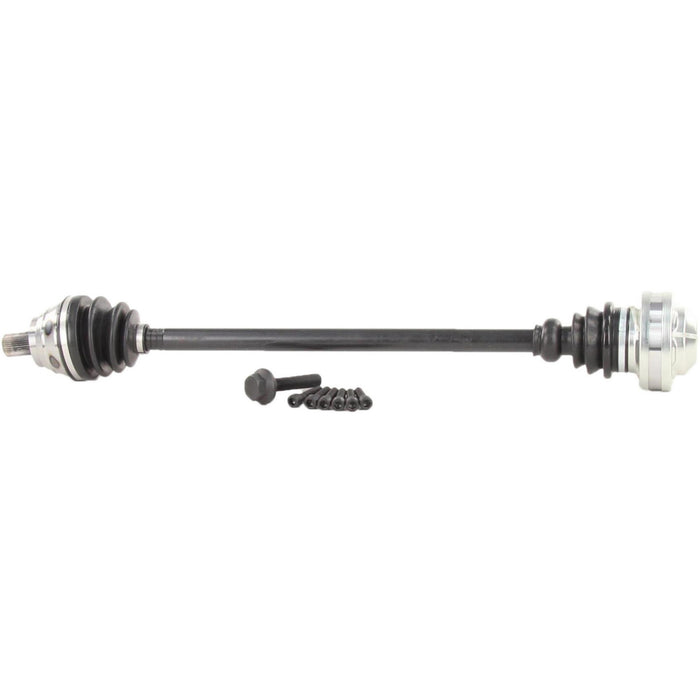

TrakMotive AD-8127 CV Axle Shaft - Front Right

Vehicle Compatibility Chart

Part Attributes

• Abs Tone Ring Included:
  No
• Axle Bolt Hex Size (mm):
  27
• Axle Bolt Length (mm):
  97
• Axle Bolt Thread Size:
  M16*1.5
• Axle Nut Included:
  No
• Boot Material:
  Neoprene
• Inboard Bolt Head Size (in):
  1/3
• Inboard Bolt Head Size (mm):
  8
• Inboard Bolt Head Type:
  Allen
• Inboard Bolt Length (in):
  2 1/6
• Inboard Bolt Length (mm):
  55
• Inboard Bolt Thread Size:
  M10*1.5
• Inboard Joint Type:
  Bolt-On
• Inboard Shaft Connection Style:
  Bolt-On
• New Or Remanufactured:
  New
• Number Of Bolt Holes:
  1
• Number Of Inboard Joint Bolt Holes:
  6
• Number Of Inboard Shaft Bolts:
  6
• Number Of Outboard Shaft Bolts:
  1
• Number Of Outboard Splines:
  36
• Outboard Joint Type:
  Audi Style Spline Bolt
• Outboard Shaft Connection Style:
  Audi Style Spline Bolt
• Overall Compressed Length (in):
  31.3
• Overall Compressed Length (mm):
  795

Part Interchanges
