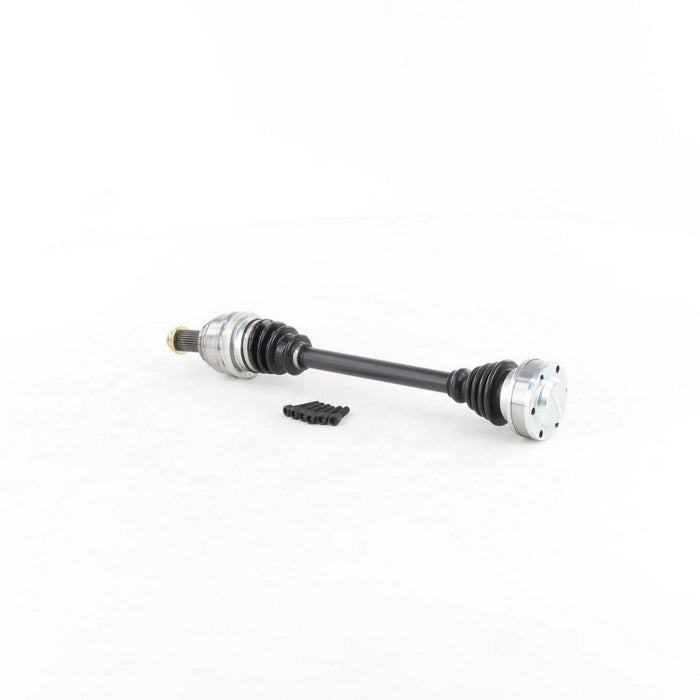

TrakMotive BM-8029 CV Axle Shaft - Rear Left or Rear Right

Vehicle Compatibility Chart

Part Attributes

• Abs Tone Ring Included:
  No
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  5/8
• Axle Nut Height (mm):
  16
• Axle Nut Hex Size (in):
  1 2/5
• Axle Nut Hex Size (mm):
  35.5
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 3/5
• Axle Nut Length (mm):
  41
• Axle Nut Locking Type:
  Stake
• Axle Nut Thread Size:
  M27*1.5
• Boot Material:
  Neoprene
• Inboard Bolt Head Size (in):
  1/3
• Inboard Bolt Head Size (mm):
  8
• Inboard Bolt Head Type:
  Allen
• Inboard Bolt Length (in):
  2 1/6
• Inboard Bolt Length (mm):
  55
• Inboard Bolt Thread Size:
  M10*1.5
• Inboard Joint Type:
  Bolt-On
• Inboard Shaft Connection Style:
  Bolt-On
• New Or Remanufactured:
  New
• Number Of Inboard Joint Bolt Holes:
  6
• Number Of Inboard Shaft Bolts:
  6
• Number Of Outboard Splines:
  30
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  25.35
• Overall Compressed Length (mm):
  644

Part Interchanges
