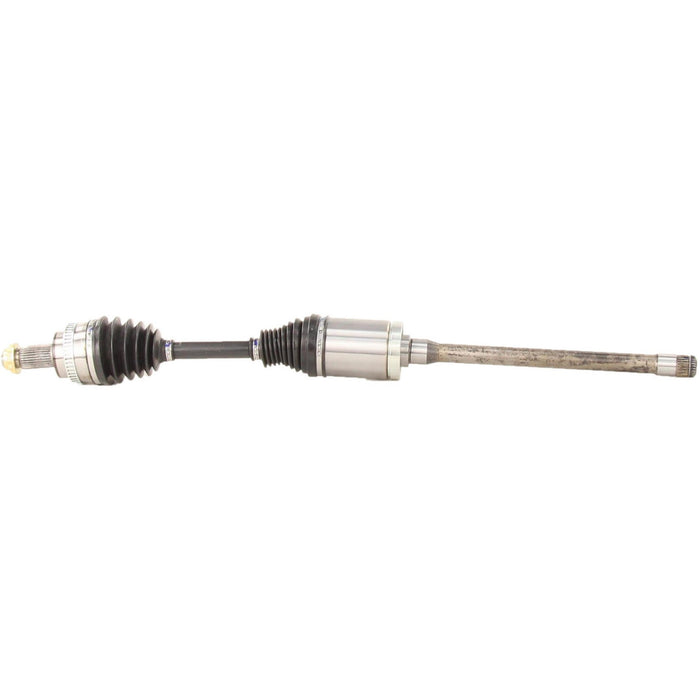

TrakMotive BM-8038 CV Axle Shaft - Front Right

Vehicle Compatibility Chart

Part Attributes

• Abs Ring Tooth Count:
  48
• Abs Ring Type:
  Window
• Abs Tone Ring Included:
  Yes
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  5/8
• Axle Nut Height (mm):
  16
• Axle Nut Hex Size (in):
  1 2/5
• Axle Nut Hex Size (mm):
  35.5
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 3/5
• Axle Nut Length (mm):
  41
• Axle Nut Locking Type:
  Stake
• Axle Nut Thread Size:
  M27*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Male
• Inboard Shaft Connection Style:
  Male
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  27
• Number Of Outboard Splines:
  30
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  35.12
• Overall Compressed Length (mm):
  892
