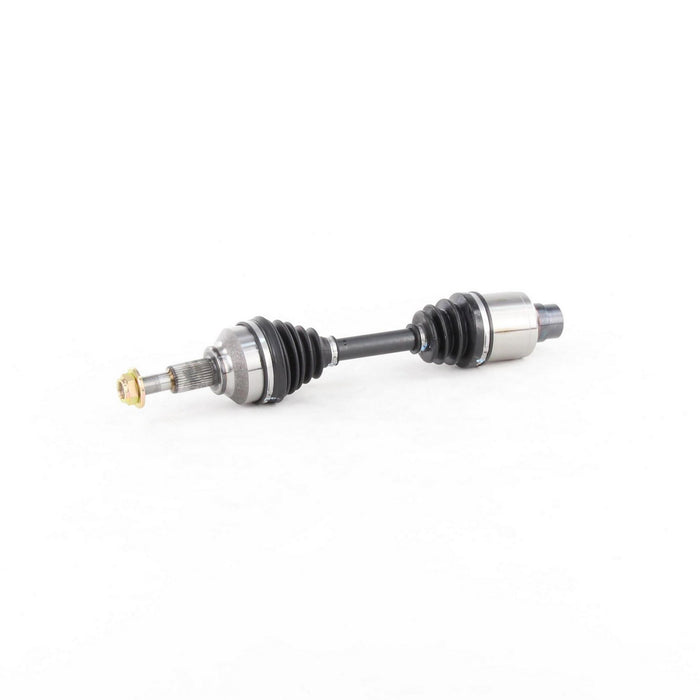

TrakMotive CH-8116 CV Axle Shaft - Front Right

Vehicle Compatibility Chart

Part Attributes

• Abs Tone Ring Included:
  No
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  4/5
• Axle Nut Height (mm):
  20
• Axle Nut Hex Size (in):
  1 1/4
• Axle Nut Hex Size (mm):
  31.8
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 1/3
• Axle Nut Length (mm):
  34.4
• Axle Nut Locking Type:
  Stake
• Axle Nut Thread Size:
  M22*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Female
• Inboard Shaft Connection Style:
  Female
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  28
• Number Of Outboard Splines:
  32
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  20.63
• Overall Compressed Length (mm):
  524

Part Interchanges
