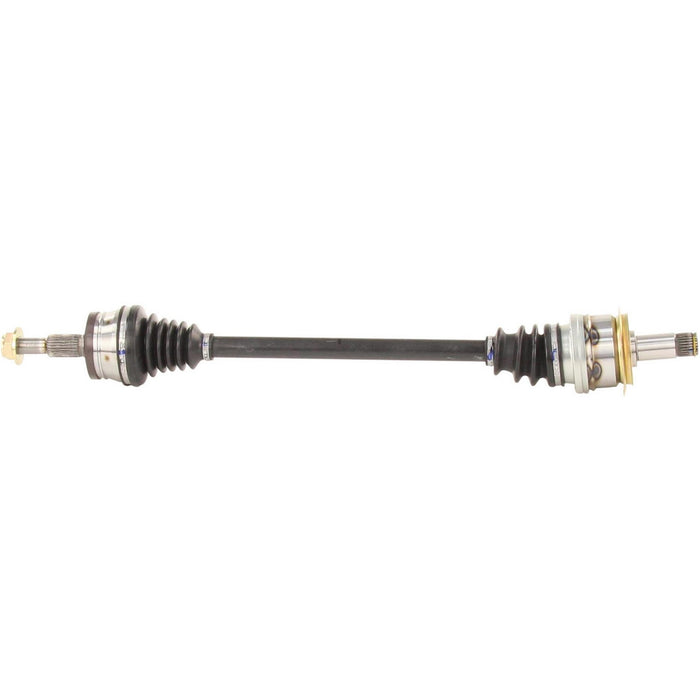

TrakMotive CH-8283 CV Axle Shaft - Rear Left

Vehicle Compatibility Chart

Part Attributes

• Abs Ring Tooth Count:
  48
• Abs Ring Type:
  Magnetic
• Abs Tone Ring Included:
  Yes
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  5/6
• Axle Nut Height (mm):
  21.2
• Axle Nut Hex Size (in):
  1 1/4
• Axle Nut Hex Size (mm):
  31.8
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 1/3
• Axle Nut Length (mm):
  34.4
• Axle Nut Locking Type:
  Self-Lock
• Axle Nut Thread Size:
  M22*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Male
• Inboard Shaft Connection Style:
  Male
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  27
• Number Of Outboard Splines:
  27
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  32.64
• Overall Compressed Length (mm):
  829

Part Interchanges
