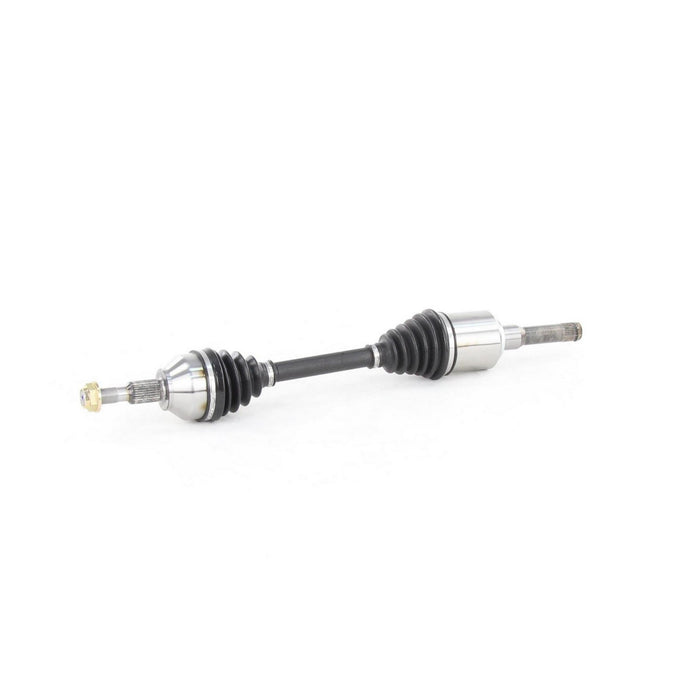

TrakMotive FD-8330 CV Axle Shaft - Front Left

Vehicle Compatibility Chart

Part Attributes

• Abs Tone Ring Included:
  No
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  3.93
• Axle Nut Height (mm):
  21.2
• Axle Nut Hex Size (in):
  1.25
• Axle Nut Hex Size (mm):
  31.8
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1.45
• Axle Nut Length (mm):
  36.72
• Axle Nut Locking Type:
  Self-Lock
• Axle Nut Thread Size:
  M22*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Male
• Inboard Shaft Connection Style:
  Spline
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  35
• Number Of Outboard Splines:
  27
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Spline
• Overall Compressed Length (in):
  27.32
• Overall Compressed Length (mm):
  694

Part Interchanges
