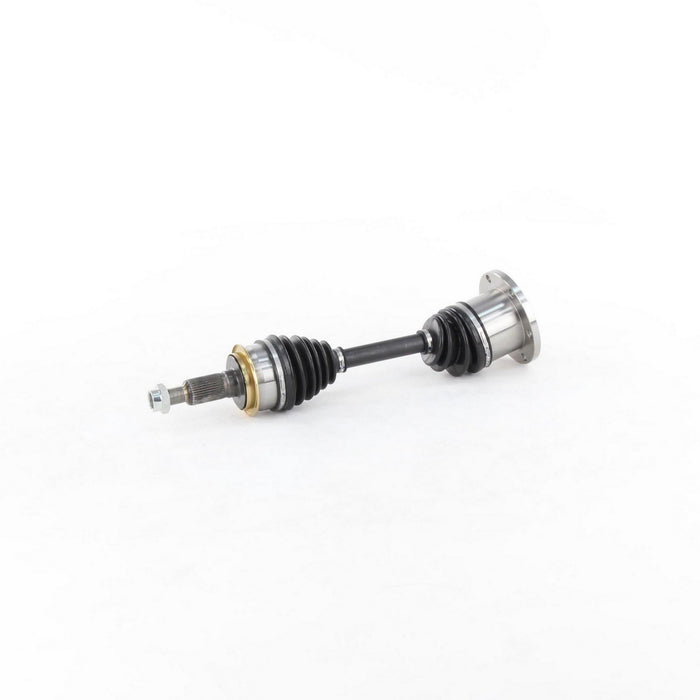

TrakMotive GM-8005 CV Axle Shaft - Front Left or Front Right

Vehicle Compatibility Chart

Part Attributes

• Abs Tone Ring Included:
  No
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  6/7
• Axle Nut Height (mm):
  21.5
• Axle Nut Hex Size (in):
  1 3/7
• Axle Nut Hex Size (mm):
  36
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 5/8
• Axle Nut Length (mm):
  41.5
• Axle Nut Locking Type:
  Self-Lock
• Axle Nut Thread Size:
  M24*2
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Flange
• Inboard Shaft Connection Style:
  Flange
• New Or Remanufactured:
  New
• Number Of Outboard Splines:
  33
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  20.47
• Overall Compressed Length (mm):
  520

Part Interchanges
