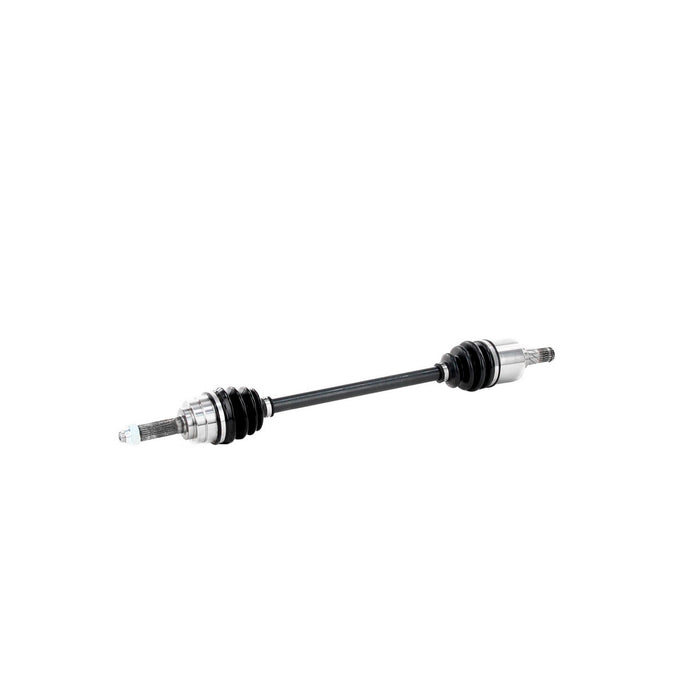

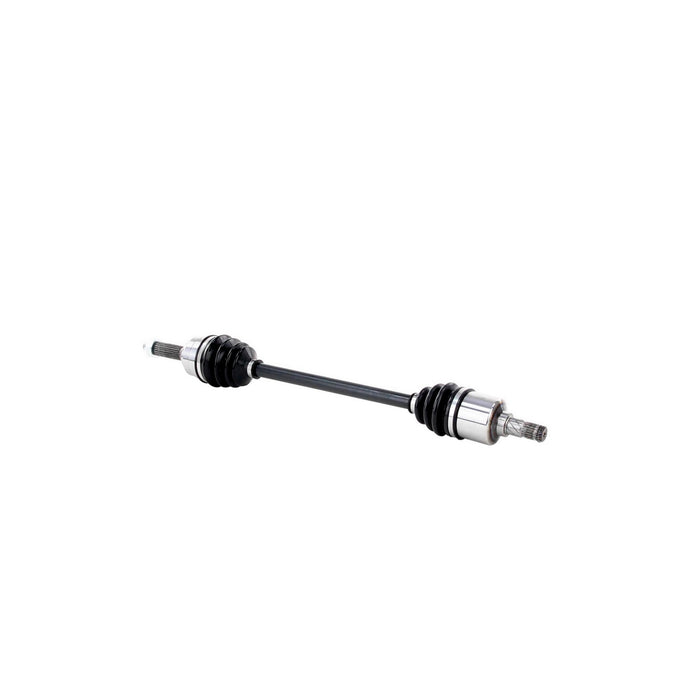

TrakMotive GM-8107 CV Axle Shaft - Front Left

Vehicle Compatibility Chart

Part Attributes

• Abs Tone Ring Included:
  No
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  3/4
• Axle Nut Height (mm):
  19
• Axle Nut Hex Size (in):
  1 1/6
• Axle Nut Hex Size (mm):
  30
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 1/3
• Axle Nut Length (mm):
  34.6
• Axle Nut Locking Type:
  Standard
• Axle Nut Thread Size:
  M18*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Male
• Inboard Shaft Connection Style:
  Male
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  22
• Number Of Outboard Splines:
  23
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  27.24
• Overall Compressed Length (mm):
  692

Part Interchanges
