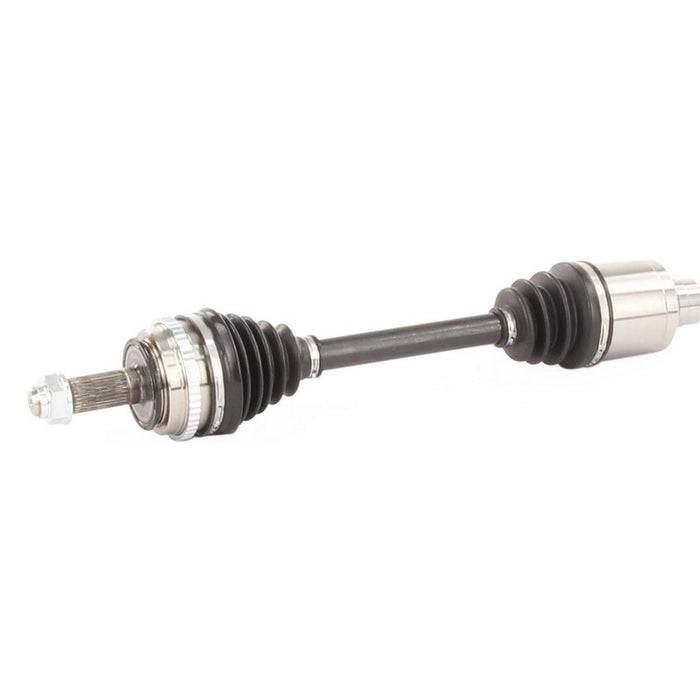

TrakMotive HO-8144 CV Axle Shaft - Front Left

Vehicle Compatibility Chart

Part Attributes

• Abs Ring Tooth Count:
  50
• Abs Ring Type:
  Toothed
• Abs Tone Ring Included:
  Yes
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  1
• Axle Nut Height (mm):
  23
• Axle Nut Hex Size (in):
  1 2/5
• Axle Nut Hex Size (mm):
  35.6
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 1/2
• Axle Nut Length (mm):
  37.53
• Axle Nut Locking Type:
  Stake
• Axle Nut Thread Size:
  M24*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Female
• Inboard Shaft Connection Style:
  Female
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  27-2T
• Number Of Outboard Splines:
  28
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  22.44
• Overall Compressed Length (mm):
  570
