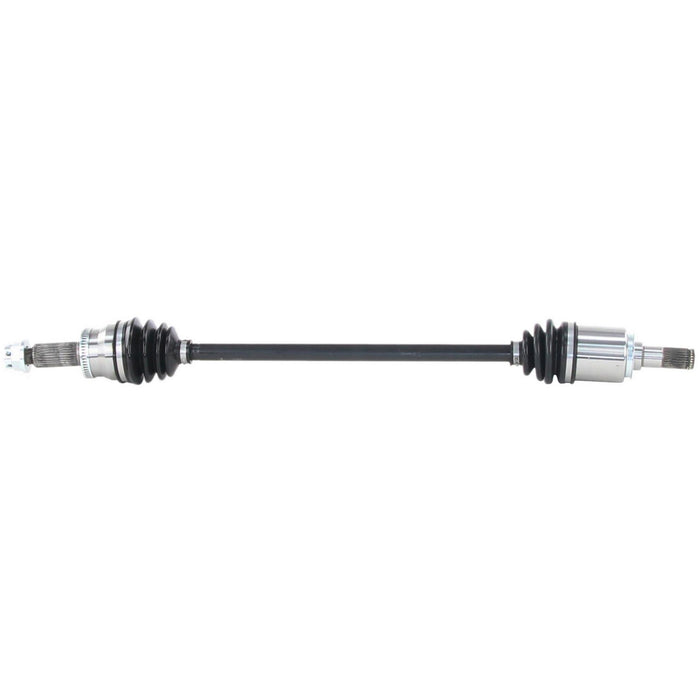

TrakMotive HY-8231 CV Axle Shaft - Rear Left or Rear Right

Vehicle Compatibility Chart

Part Attributes

• Abs Ring Tooth Count:
  52
• Abs Ring Type:
  Window
• Abs Tone Ring Included:
  Yes
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  6/7
• Axle Nut Height (mm):
  22
• Axle Nut Hex Size (in):
  1 1/4
• Axle Nut Hex Size (mm):
  32
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 1/2
• Axle Nut Length (mm):
  37
• Axle Nut Locking Type:
  Cotter Pin
• Axle Nut Thread Size:
  M22*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Male
• Inboard Shaft Connection Style:
  Male
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  25
• Number Of Outboard Splines:
  30
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  32.24
• Overall Compressed Length (mm):
  819

Part Interchanges
