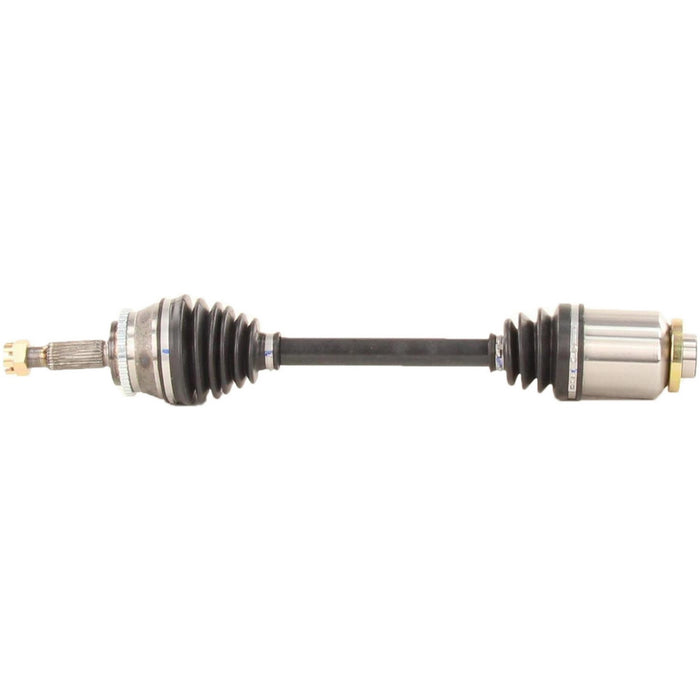

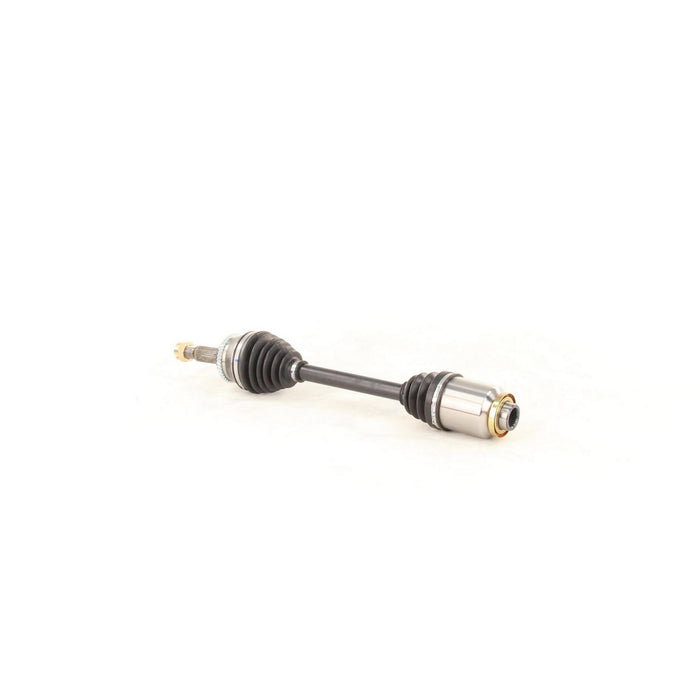

TrakMotive MI-8184 CV Axle Shaft - Front Right

Vehicle Compatibility Chart

Part Attributes

• Abs Ring Tooth Count:
  43
• Abs Ring Type:
  Toothed
• Abs Tone Ring Included:
  Yes
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  6/7
• Axle Nut Height (mm):
  22
• Axle Nut Hex Size (in):
  1 1/4
• Axle Nut Hex Size (mm):
  32
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 1/2
• Axle Nut Length (mm):
  37
• Axle Nut Locking Type:
  Cotter Pin
• Axle Nut Thread Size:
  M22*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Female
• Inboard Shaft Connection Style:
  Female
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  28-2T
• Number Of Outboard Splines:
  27
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  24.8
• Overall Compressed Length (mm):
  630

Part Interchanges
