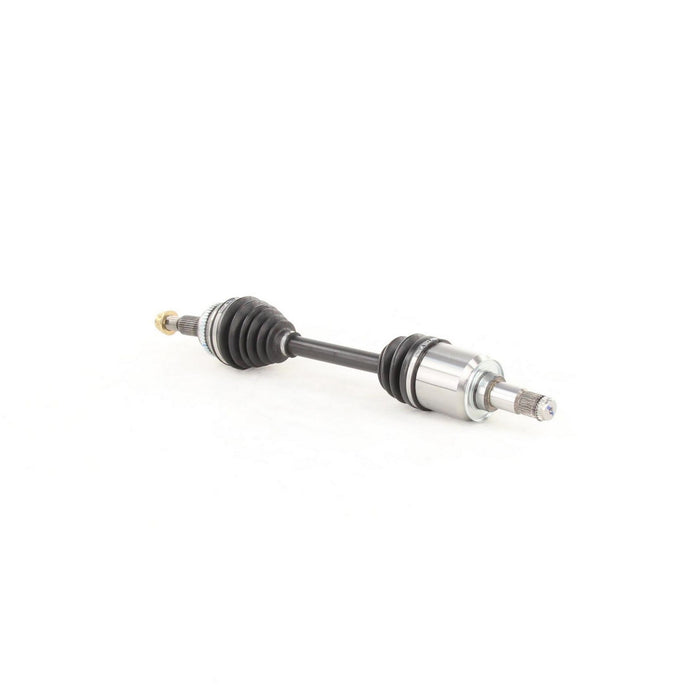

TrakMotive TO-8413 CV Axle Shaft - Front Left

Vehicle Compatibility Chart

Part Attributes

• Abs Ring Tooth Count:
  48
• Abs Ring Type:
  Toothed
• Abs Tone Ring Included:
  Yes
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  0.85
• Axle Nut Height (mm):
  21.5
• Axle Nut Hex Size (in):
  1.18
• Axle Nut Hex Size (mm):
  30
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1.36
• Axle Nut Length (mm):
  34.64
• Axle Nut Locking Type:
  Stake
• Axle Nut Thread Size:
  M22*1.5
• Boot Material:
  Neoprene
• Inboard Joint Type:
  Male
• Inboard Shaft Connection Style:
  Spline
• New Or Remanufactured:
  New
• Number Of Inboard Splines:
  24
• Number Of Outboard Splines:
  30
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Spline
• Overall Compressed Length (in):
  26.1
• Overall Compressed Length (mm):
  663

Part Interchanges
