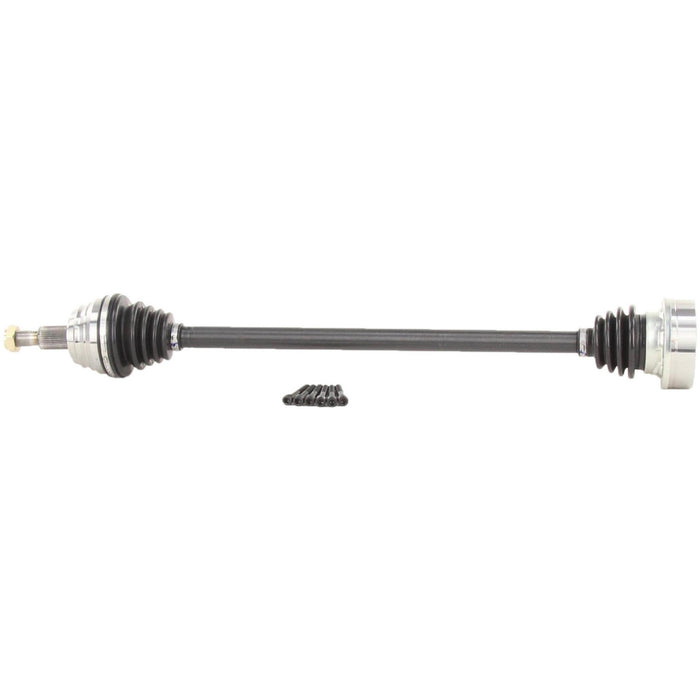

TrakMotive VW-8004 CV Axle Shaft - Front Right

Vehicle Compatibility Chart

Part Attributes

• Abs Tone Ring Included:
  No
• Axle Nut Head Type:
  Hex
• Axle Nut Height (in):
  5/9
• Axle Nut Height (mm):
  14
• Axle Nut Hex Size (in):
  1 1/6
• Axle Nut Hex Size (mm):
  30
• Axle Nut Included:
  Yes
• Axle Nut Length (in):
  1 1/3
• Axle Nut Length (mm):
  34.6
• Axle Nut Locking Type:
  Self-Lock
• Axle Nut Thread Size:
  M20*1.5
• Boot Material:
  Neoprene
• Inboard Bolt Head Size (in):
  1/4
• Inboard Bolt Head Size (mm):
  6
• Inboard Bolt Head Type:
  Allen
• Inboard Bolt Length (in):
  2 2/7
• Inboard Bolt Length (mm):
  58
• Inboard Bolt Thread Size:
  M8*1.25
• Inboard Joint Type:
  Bolt-On
• Inboard Shaft Connection Style:
  Bolt-On
• New Or Remanufactured:
  New
• Number Of Inboard Joint Bolt Holes:
  6
• Number Of Inboard Shaft Bolts:
  6
• Number Of Outboard Splines:
  36
• Outboard Joint Type:
  Conventional
• Outboard Shaft Connection Style:
  Conventional
• Overall Compressed Length (in):
  31.26
• Overall Compressed Length (mm):
  794
