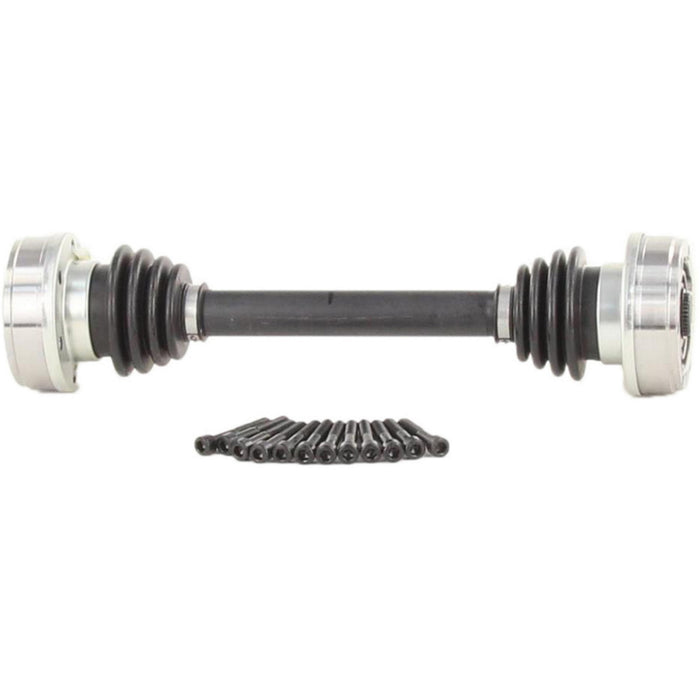

TrakMotive VW-8043 CV Axle Shaft - Rear Left or Rear Right

Vehicle Compatibility Chart

Part Attributes

• Abs Tone Ring Included:
  No
• Axle Nut Included:
  No
• Boot Material:
  Neoprene
• Inboard Bolt Head Size (in):
  1/4
• Inboard Bolt Head Size (mm):
  6
• Inboard Bolt Head Type:
  Allen
• Inboard Bolt Length (in):
  2 2/7
• Inboard Bolt Length (mm):
  58
• Inboard Bolt Thread Size:
  M8*1.25
• Inboard Joint Type:
  Bolt-On
• Inboard Shaft Connection Style:
  Bolt-On
• New Or Remanufactured:
  New
• Number Of Inboard Joint Bolt Holes:
  6
• Number Of Inboard Shaft Bolts:
  6
• Number Of Outboard Joint Bolt Holes:
  6
• Outboard Bolt Head Size (in):
  1/4
• Outboard Bolt Head Size (mm):
  6
• Outboard Bolt Head Type:
  Allen
• Outboard Bolt Length (in):
  2 2/7
• Outboard Bolt Length (mm):
  58
• Outboard Joint Bolt Thread Size:
  M8*1.25
• Outboard Joint Type:
  Bolt-On
• Outboard Shaft Connection Style:
  Bolt-On
• Overall Compressed Length (in):
  16.14
• Overall Compressed Length (mm):
  410

Part Interchanges
