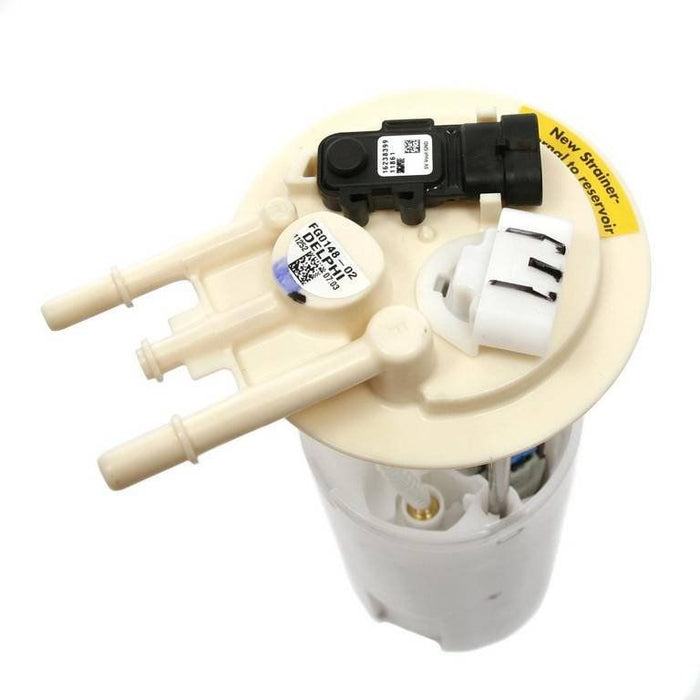

Delphi FG0148 Fuel Pump Module Assembly

Vehicle Compatibility Chart

Part Attributes

• Average Current Draw:
  7
• Average Flow Rating:
  23
• Fuel Level Sender Assembly Included:
  Yes
• Fuel Type:
  Gas
• Gasket Or Seal Included:
  Yes
• In Tank or External:
  In Tank
• Inlet Type:
  Strainer
• Internal Or External Strainer:
  Internal
• Item Grade:
  Standard Replacement
• Lock Ring Included:
  No
• Maximum Pressure:
  109.0
• Outlet Outside Diameter:
  0.375
• Outlet Quantity:
  2
• Outlet Type:
  Quick Connect
• Package Contents:
  Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
• Pump Type:
  Electric
• Regulator Included:
  No
• Resistance Ohms Empty:
  40.0
• Resistance Ohms Full:
  250.0
• Strainer Included:
  Yes
• System Pressure:
  52 psi

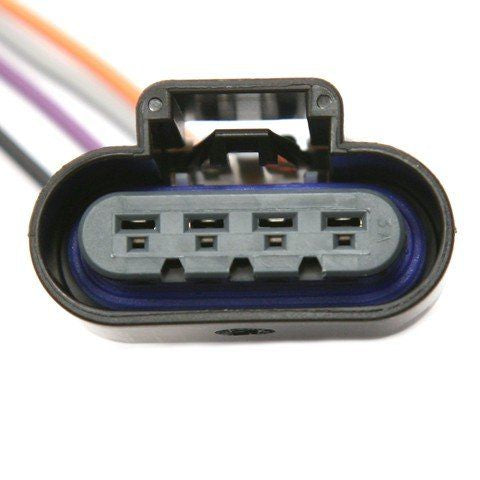

• Terminal Gender:
  Male
• Terminal Quantity:
  4
• Terminal Type:
  Blade
• Vapor Pressure Sensor:
  Yes
• Voltage:
  13.0

Part Interchanges
