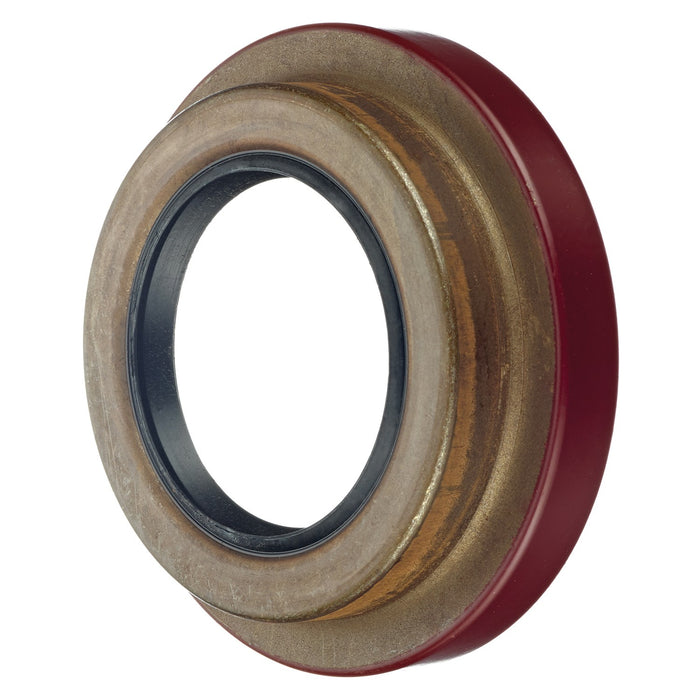

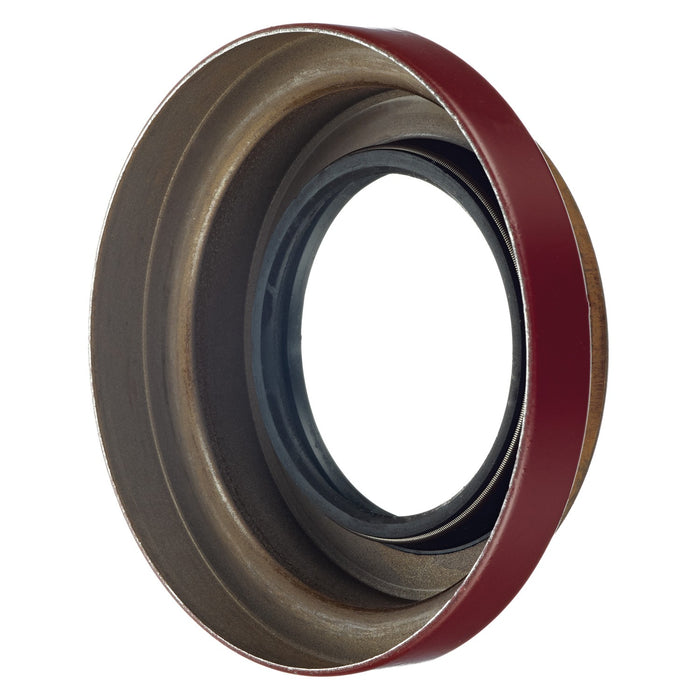

FAG SS3180 Differential Pinion Seal - Rear

Our wheel seals are engineered using only the highest-quality materials to meet vehicle manufacturer specificatons. We work with suppliers to design seals that meet FAG's quality standards. Seals are designed to protect wheel end components from contamination - such as dirt, dust, and moisture - and prevent the loss of grease over the life of the bearing. The specifications for wheel seals are very demanding, and the type required depends on the specific application, position and vehicle class.

Vehicle Compatibility Chart

✅ Compatible with 50 vehicles
Year Make Model Position Notes
1977 Ford F-500 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1976 Ford F-500 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1975 Ford F-500 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1975 International 150 Rear FA28 (4,000 lb. IHC) and FA48 (4700 lb. IHC); Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1975 International 200 Rear FA28 (4,000 lb. IHC) and FA48 (4700 lb. IHC); Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1975 International MS Rear FA1 (2500lb. IHC) Axle; 11" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1975 International Travelall Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1974 International 100 Rear FA28 (4,000 lb. IHC) and FA48 (4700 lb. IHC); Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1974 International 200 Rear FA28 (4,000 lb. IHC) and FA48 (4700 lb. IHC); Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1974 International MS1210 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1973 International MS1210 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1972 International MS1210 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1970 International 1000D Rear FA1 (2500lb. IHC) Axle; 12" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1970 International 1200D Rear FA1 (2500lb. IHC) Axle; 12" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1970 International 1300D Rear FA1 (2500lb. IHC) Axle; 12" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1969 International 1000D Rear FA1 (2500lb. IHC) Axle; 12" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1969 International 1200D Rear FA1 (2500lb. IHC) Axle; 12" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1969 International 1300D Rear FA1 (2500lb. IHC) Axle; 12" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1968 International 1000C Rear FA1 (2500lb. IHC) Axle; 12" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1968 International 1100C Rear FA1 (2500lb. IHC) Axle; 12" Brake Shoe; Schaeffler Seal Global Number 413 3180 100; 4.068" O.D.
1968 International 1300C Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1965 International D1000 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1965 International D1100 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1965 International D1200 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1965 International D900 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1964 International C1000 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1964 International C1100 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1964 International C1200 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1964 International C1300 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1964 International C900 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1963 International C1000 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1963 International C1100 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1963 International C1200 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1963 International C1300 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1962 International C100 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1962 International C110 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1962 International C120 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1962 International C130 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1961 International C100 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1961 International C110 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1961 International C120 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1961 International C130 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1960 International B100 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1960 International B110 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1960 International B120 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1960 International B130 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1959 International B100 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1959 International B110 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1959 International B120 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.
1959 International B130 Rear Differential Pinion Seal Global Number 413 3180 100; 4.068" O.D.

Part Attributes

  • 2.25
  • 57.15
  • 4.063
  • 103.2
  • 4.068
  • 103.327
  • Metal; Spring; Auxilary lip
  • 2.25
  • 27.203
  • Polyacrylate

Part Interchanges

22653, 4133180100, 722250
