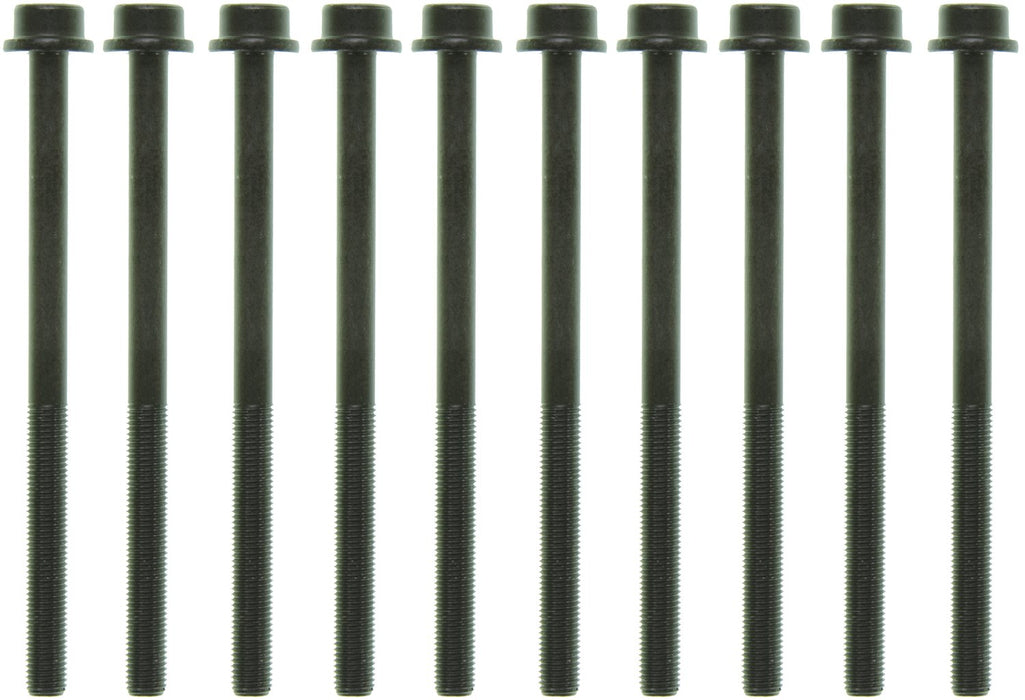

Mahle GS33489 Engine Cylinder Head Bolt Set

Vehicle Compatibility Chart

Part Attributes

• Additional Package Contents:
  Contains Cylinder Head Bolts
• Fastener Head Style:
  T-55 Torx Socket Cap
• Fastener Style:
  Bolt
• Item Grade:
  OEM Standard
• Overall Length:
  146mm
• Pitch:
  Thread Pitch 1.25mm
• Torque Specification (ft-lbs):
  Stage 1: Tighten to 5 Nm (44 lb-in). Stage 2: Tighten to 15 Nm (133 lb-in). Stage 3: Tighten to 45 Nm (33 lb-ft). Stage 4: Turn 90 degrees. Stage 5: Turn an additional 90 degrees.
• Torque To Yield:
  Yes

Part Interchanges
