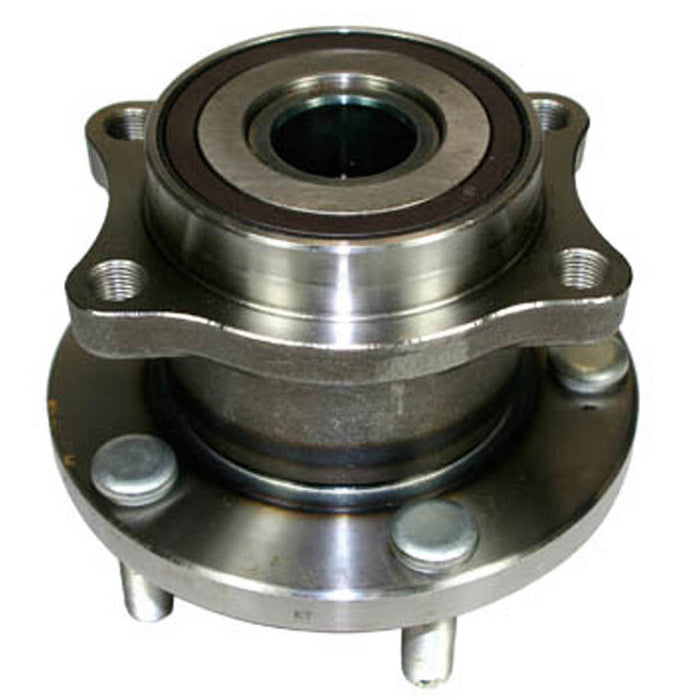

Centric 401.47002 Wheel Bearing and Hub Assembly - Rear

Vehicle Compatibility Chart

Part Attributes

• Bolt Circle Diameter [cntrc] in:
  3.937
• Bolt Circle Diameter [cntrc] mm:
  100.000
• Bolt Circle Diameter in:
  3.937
• Bolt Circle Diameter mm:
  100.00
• Brake Pilot Diameter:
  2.281
• Brake Pilot Diameter:
  57.940
• Flange Diameter:
  4.882
• Flange Diameter:
  124.00
• Flange Diameter:
  124.000
• Inner Mount Pilot [cntrc] in:
  3.305
• Inner Mount Pilot [cntrc] mm:
  83.950
• Mounting Hole Qty [cntrc]:
  4
• Mounting Thread Pitch:
  1.25
• Mounting Thread Pitch [cntrc] mm:
  1.250
• Mounting Thread Size:
  M12
• Mouting Thread Size [cntrc] mm:
  12.000
• Notes [cntrc]:
  Magnetic ABS Encoder
• Off-Set (inch):
  66.50
• Off-Set [cntrc] in:
  66.500
• Off-Set [cntrc] mm:
  2.618
• Spline Quantity:
  27
• Thread Pitch to Wheel Mounting:
  1.25
• Thread Pitch to Wheel Mounting [cntrc] mm:
  1.250
• Wheel Pilot Diameter:
  2.204
• Wheel Pilot Diameter:
  55.980
• Wheel Stud Quantity:
  5
• Wheel Stud Size:
  12.000
• Wheel Stud Size:
  M12
• Wheel Studs Included:
  Yes

Part Interchanges
