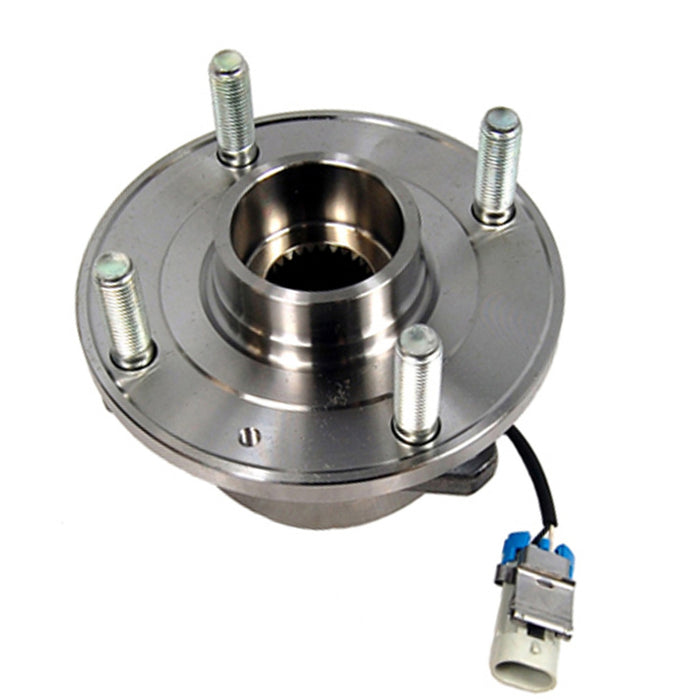

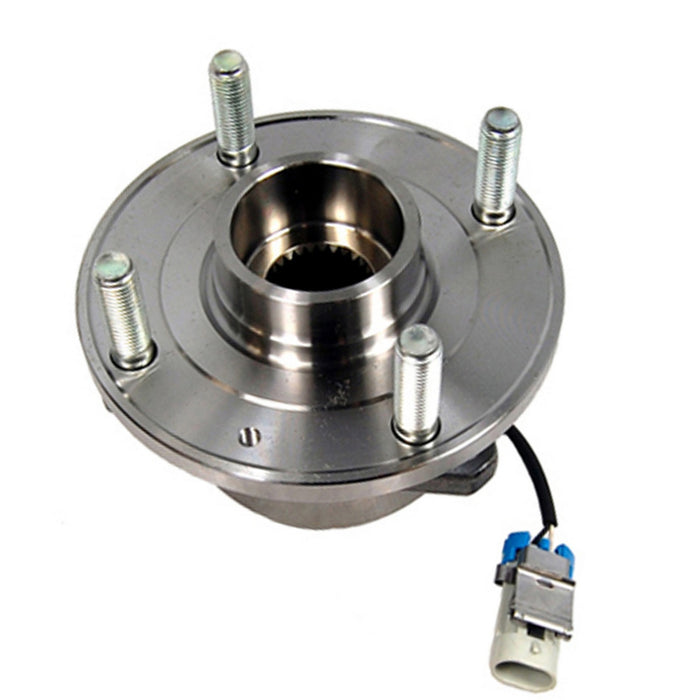

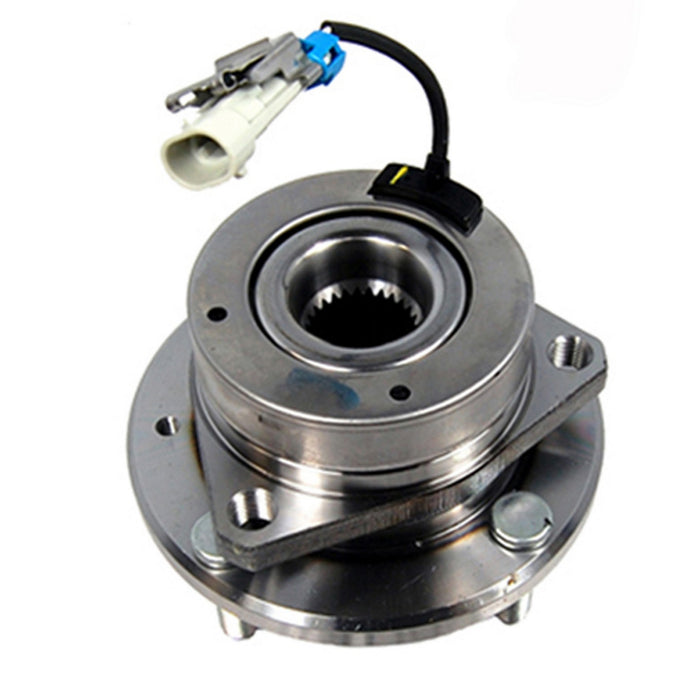

Centric 402.48000E Wheel Bearing and Hub Assembly - Front

Vehicle Compatibility Chart

Part Attributes

• Bolt Circle Diameter [cntrc] in:
  4.500
• Bolt Circle Diameter [cntrc] mm:
  114.300
• Brake Pilot Diameter:
  2.360
• Brake Pilot Diameter:
  59.940
• Flange Diameter:
  4.487
• Flange Diameter:
  113.970
• Inner Mount Pilot [cntrc] in:
  3.588
• Inner Mount Pilot [cntrc] mm:
  91.140
• Mounting Hole Qty [cntrc]:
  3
• Mounting Thread Pitch [cntrc] mm:
  1.500
• Mouting Thread Size [cntrc] mm:
  12.000
• Notes [cntrc]:
  With ABS Sensor Wire
• Off-Set [cntrc] in:
  37.010
• Off-Set [cntrc] mm:
  1.457
• Spline Quantity:
  28
• Thread Pitch to Wheel Mounting [cntrc] in:
  20.000
• Wheel Pilot Diameter:
  2.223
• Wheel Pilot Diameter:
  56.460
• Wheel Stud Quantity:
  5
• Wheel Stud Size:
  0.500
• Wheel Studs Included:
  Yes

Part Interchanges
