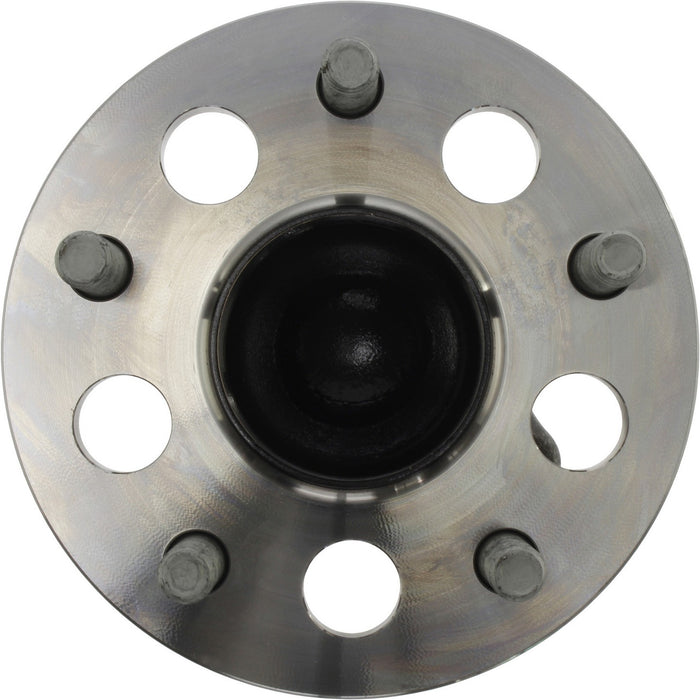

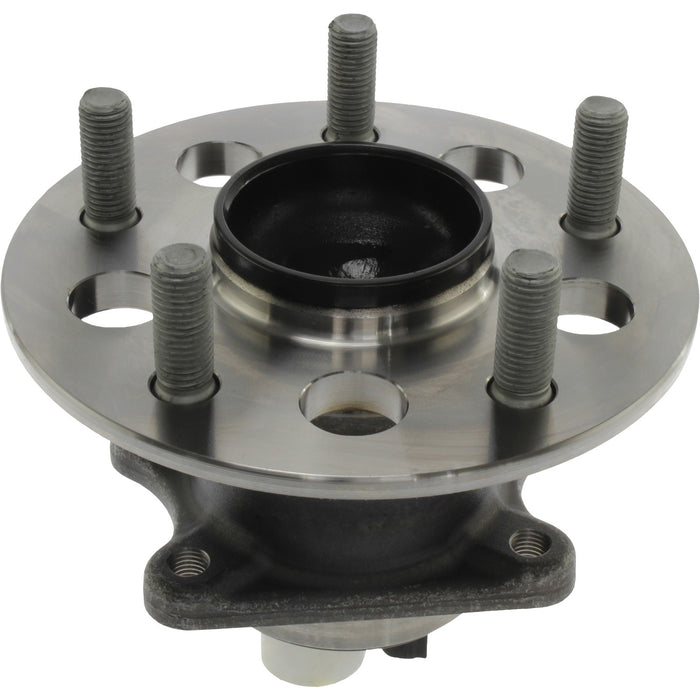

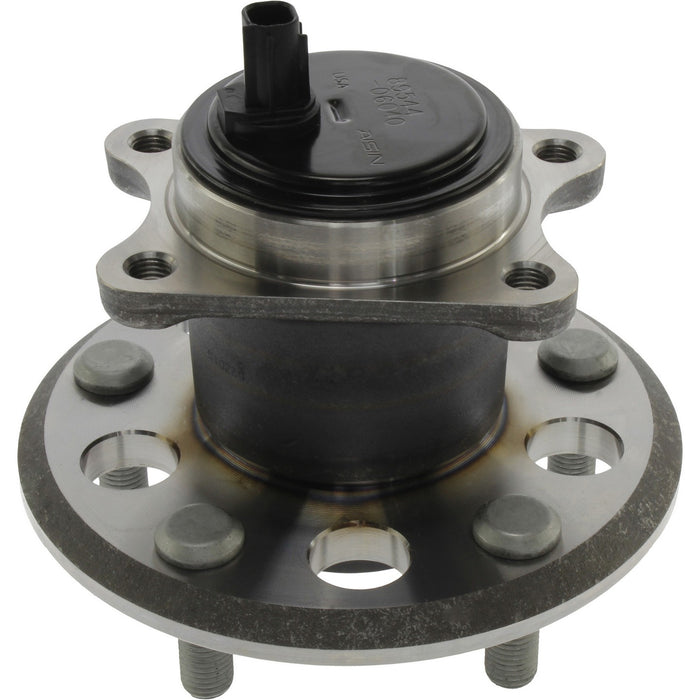

Centric 407.44035 Wheel Bearing and Hub Assembly - Rear Right

Vehicle Compatibility Chart

Part Attributes

• Bolt Circle Diameter [cntrc] in:
  4.500
• Bolt Circle Diameter [cntrc] mm:
  114.300
• Bolt Circle Diameter in:
  4.500
• Bolt Circle Diameter mm:
  114.30
• Brake Pilot Diameter:
  2.432
• Brake Pilot Diameter:
  61.770
• Flange Diameter:
  5.975
• Flange Diameter:
  151.77
• Flange Diameter:
  151.770
• Inner Mount Pilot [cntrc] in:
  2.903
• Inner Mount Pilot [cntrc] mm:
  73.740
• Mounting Hole Qty [cntrc]:
  4
• Mounting Thread Pitch:
  1.25
• Mounting Thread Pitch [cntrc] mm:
  1.250
• Mounting Thread Size:
  M10
• Mouting Thread Size [cntrc] mm:
  10.000
• Notes [cntrc]:
  ABS sensor mounted in end cover; Flange Holes 5 x 0.825"
• Off-Set (inch):
  67.31
• Off-Set [cntrc] in:
  67.310
• Off-Set [cntrc] mm:
  2.650
• Thread Pitch to Wheel Mounting:
  1.5
• Thread Pitch to Wheel Mounting [cntrc] mm:
  1.500
• Wheel Pilot Diameter:
  2.358
• Wheel Pilot Diameter:
  59.890
• Wheel Stud Quantity:
  5
• Wheel Stud Size:
  12.000
• Wheel Stud Size:
  M12
• Wheel Studs Included:
  Yes

Part Interchanges
