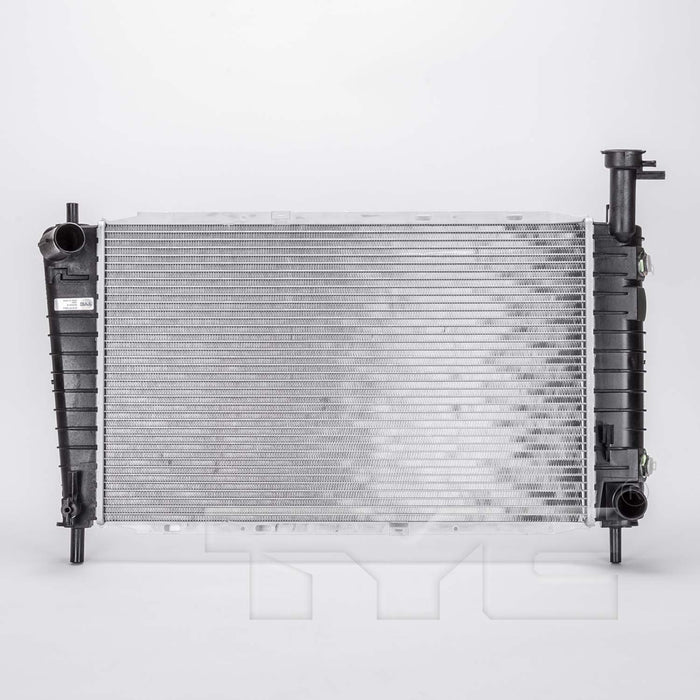

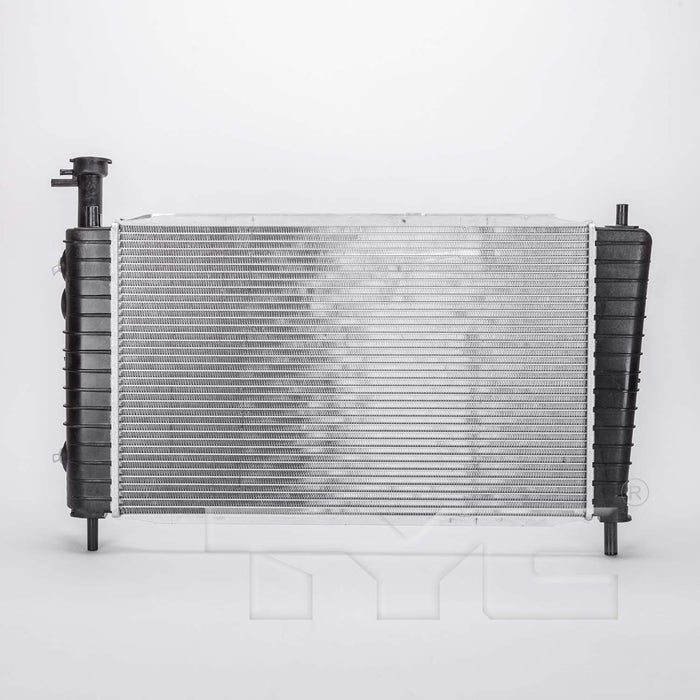

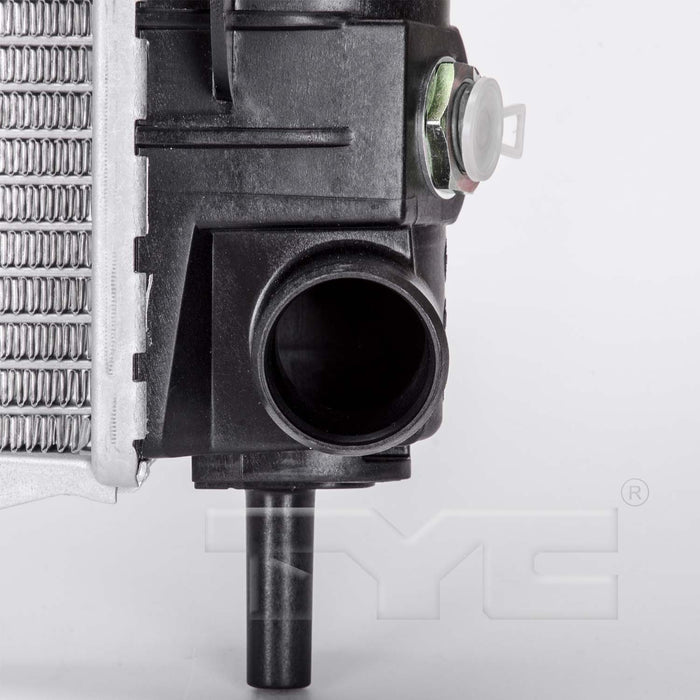

TYC 1094 Radiator

Vehicle Compatibility Chart

Part Attributes

• Accessories Included:
  OC Adapters (1/2"-2 UNF) and Speed Nut (M6xP1.) and Clip for S.P.
• Bottom Header:
  3.17x15.24
• Core Height (in):
  14.88
• Core Length (in):
  24.02
• Core Material:
  Aluminum
• Core Thickness (in):
  1.02
• Engine Oil Cooler Included:
  No
• Fin Count (every 4"):
  64
• Fin Wave Height (in):
  0.31
• Find Wave Pitch:
  3.2
• Flow Configuration:
  Crossflow
• Inlet Connection Type:
  Hose Clamp
• Inlet Diameter (in):
  1.50
• No. Of Rows:
  1
• Outlet Connection Type:
  Hose Clamp
• Outlet Diameter (in):
  1.50
• Toc Distance (in):
  10.00
• Toc Inlet Diameter (in):
  1/2-20UNF
• Toc Inlet Type:
  Adapter
• Toc Outlet Diameter (in):
  1/2-20UNF
• Toc Outlet Type:
  Adapter
• Top Header:
  1.94x15.23
• Total Fin Row Count:
  38
• Total Tube Count:
  37
• Transmission Oil Cooler Included:
  Yes
• Transmission Oil Cooler Type:
  Concentric Oil Cooler
• Tube Count (every 4"):
  10
• Tube Width X Height:
  26x2
