TYC 1140 Radiator

Vehicle Compatibility Chart

Part Attributes

• Bottom Header:
  1.96x26.43
• Core Height (in):
  25.51
• Core Length (in):
  12.6
• Core Material:
  Aluminum
• Core Thickness (in):
  1.02
• Engine Oil Cooler Included:
  No
• Fin Count (every 4"):
  64
• Fin Wave Height (in):
  0.31
• Find Wave Pitch:
  3.2
• Flow Configuration:
  Downflow
• Inlet Connection Type:
  Hose Clamp
• Inlet Diameter (in):
  1.26
• No. Of Rows:
  1
• Outlet Connection Type:
  Hose Clamp
• Outlet Diameter (in):
  1.26
• Toc Distance (in):
  10.83

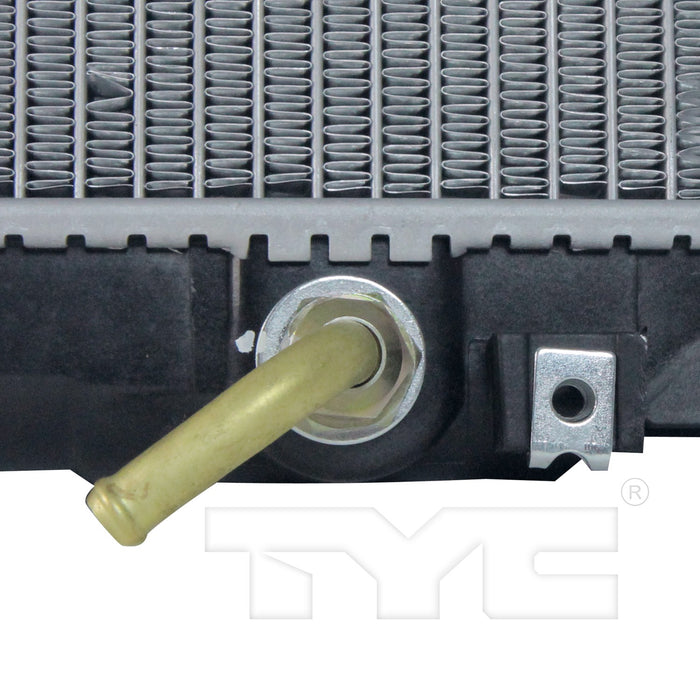

• Toc Inlet Diameter (in):
  0.39
• Toc Inlet Type:
  Tube fitting
• Toc Outlet Diameter (in):
  0.39
• Toc Outlet Type:
  Tube fitting
• Top Header:
  1.96x26.43
• Total Fin Row Count:
  65
• Total Tube Count:
  64
• Transmission Oil Cooler Included:
  Yes
• Transmission Oil Cooler Type:
  Concentric Oil Cooler
• Tube Count (every 4"):
  10
• Tube Width X Height:
  26x2
