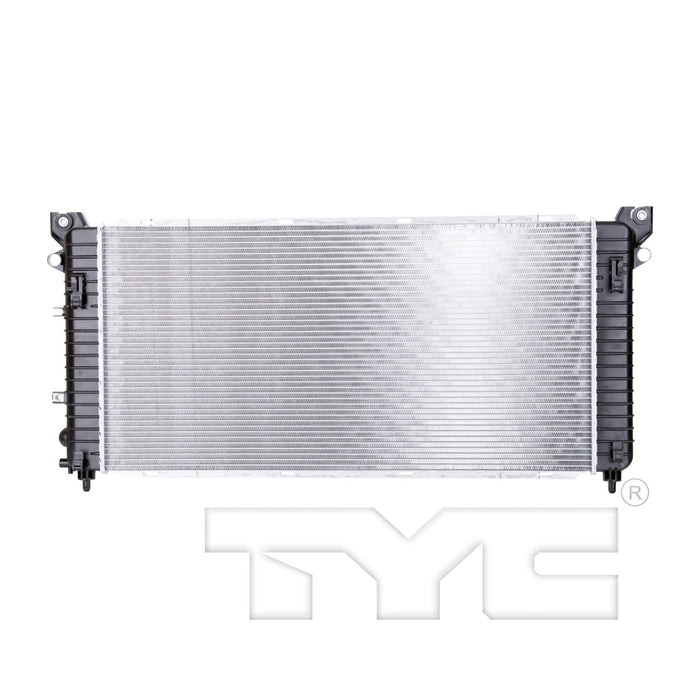

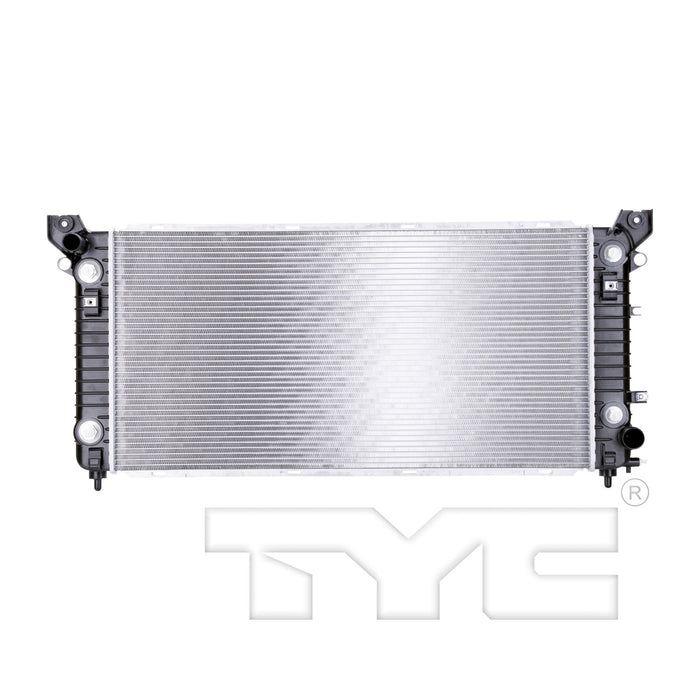

TYC 13396 Radiator

Vehicle Compatibility Chart

Part Attributes

• Bottom Header:
  2.85x17.69

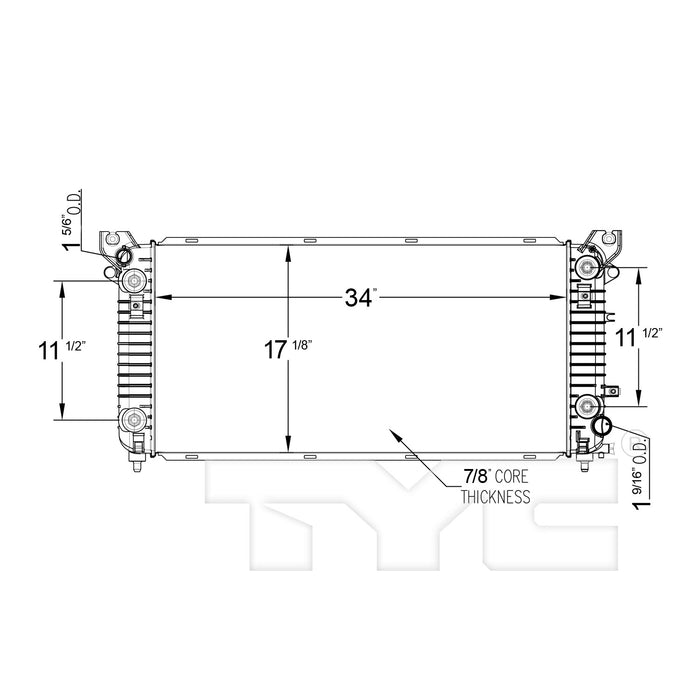

• Core Height (in):
  17.15
• Core Length (in):
  34.02
• Core Material:
  Aluminum
• Core Thickness (in):
  0.87
• Engine Oil Cooler Included:
  Yes
• Engine Oil Cooler Type:
  Plate Oil Cooler
• Eoc Distance (in):
  11.50
• Eoc Inlet Diameter (in):
  0.37
• Eoc Inlet Diameter (mm):
  9.5
• Eoc Inlet Type:
  Quick Connect
• Eoc Outlet Diameter (in):
  0.37
• Eoc Outlet Type:
  Quick Connect
• Fin Count (every 4"):
  75
• Fin Wave Height (in):
  0.31
• Find Wave Pitch:
  2.7
• Flow Configuration:
  Crossflow
• Inlet Connection Type:
  Hose Clamp
• Inlet Diameter (in):
  1.34
• No. Of Rows:
  1
• Outlet Connection Type:
  Hose Clamp
• Outlet Diameter (in):
  1.57
• Toc Distance (in):
  11.50
• Toc Inlet Diameter (in):
  0.37
• Toc Inlet Type:
  Quick Connect
• Toc Outlet Diameter (in):
  0.37
• Toc Outlet Type:
  Quick Connect
• Top Header:
  2.26x17.69
• Total Fin Row Count:
  46
• Total Tube Count:
  45
• Transmission Oil Cooler Included:
  Yes
• Transmission Oil Cooler Type:
  Plate Oil Cooler
• Tube Count (every 4"):
  11
• Tube Width X Height:
  22x1.5
