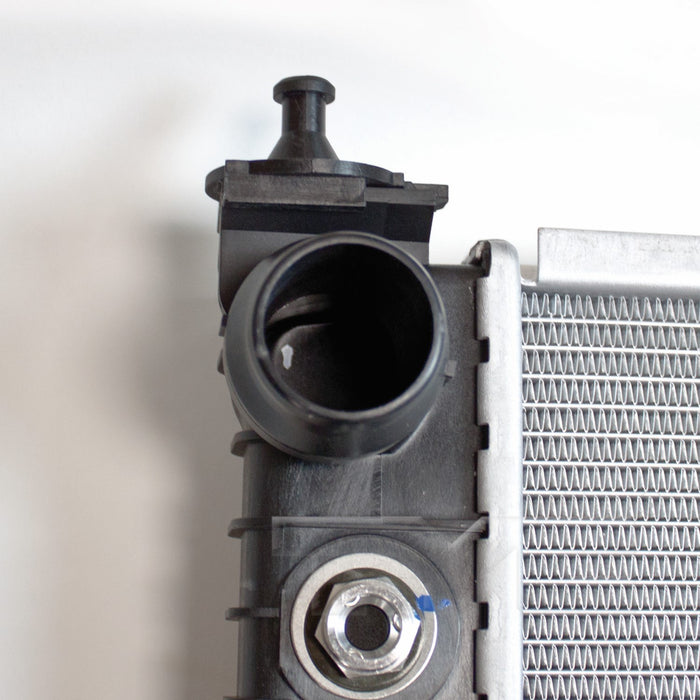

TYC 13505 Radiator

Vehicle Compatibility Chart

Part Attributes

• Bottom Header:
  2.1x22.38
• Core Height (in):
  21.69
• Core Length (in):
  23.43
• Core Material:
  Aluminum
• Core Thickness (in):
  1.02
• Engine Oil Cooler Included:
  No
• Fin Count (every 4"):
  78
• Fin Wave Height (in):
  0.20
• Find Wave Pitch:
  2.6
• Flow Configuration:
  Crossflow
• Inlet Connection Type:
  Quick Connect (Spring Lock)
• Inlet Diameter (in):
  1.52
• No. Of Rows:
  1
• Outlet Connection Type:
  Quick Connect (Spring Lock)
• Outlet Diameter (in):
  1.52
• Toc Distance (in):
  10.00
• Toc Inlet Diameter (in):
  0.37
• Toc Inlet Type:
  Quick Connect
• Toc Outlet Diameter (in):
  0.37
• Toc Outlet Type:
  Quick Connect
• Top Header:
  2.1x22.38
• Total Fin Row Count:
  85
• Total Tube Count:
  84
• Transmission Oil Cooler Included:
  Yes
• Transmission Oil Cooler Type:
  Plate Oil Cooler
• Tube Count (every 4"):
  16
• Tube Width X Height:
  26x1.5
