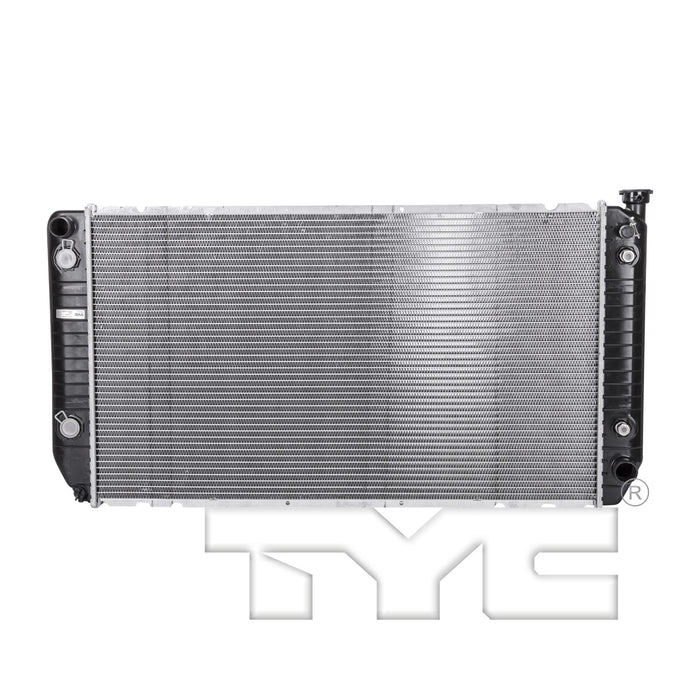

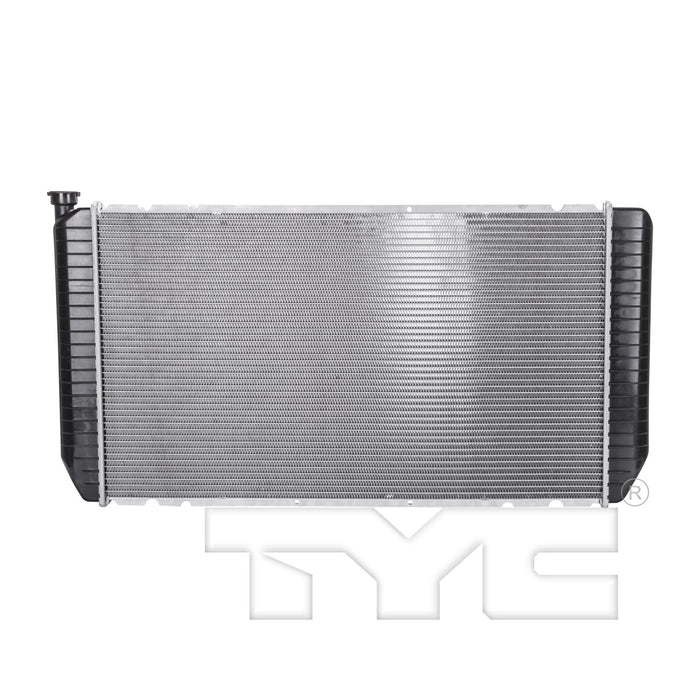

TYC 1696 Radiator

Vehicle Compatibility Chart

Part Attributes

• Bottom Header:
  3.16x20.66
• Core Height (in):
  19.41
• Core Length (in):
  34.09
• Core Material:
  Aluminum
• Core Thickness (in):
  2.2
• Engine Oil Cooler Included:
  Yes
• Engine Oil Cooler Type:
  Plate Oil Cooler
• Eoc Distance (in):
  11.50
• Fin Count (every 4"):
  41
• Fin Wave Height (in):
  0.35
• Find Wave Pitch:
  5
• Flow Configuration:
  Crossflow

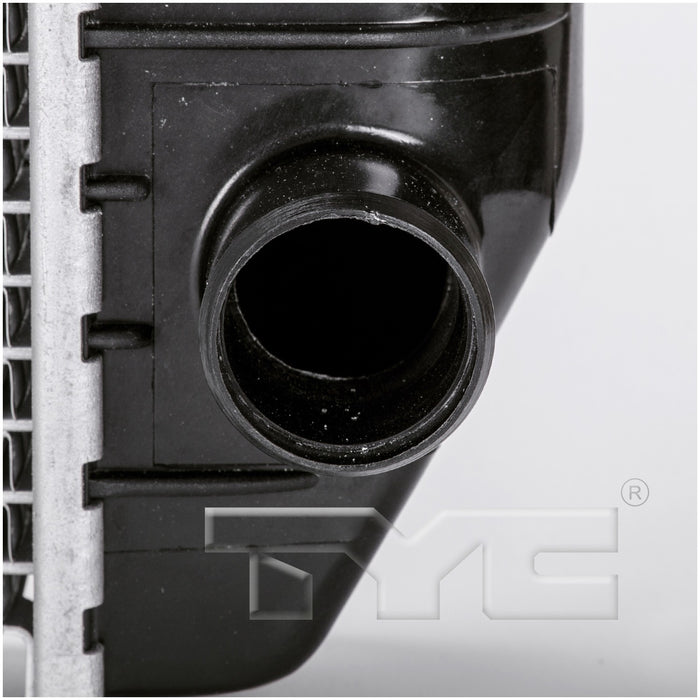

• Inlet Connection Type:
  Hose Clamp
• Inlet Diameter (in):
  1.38
• No. Of Rows:
  1

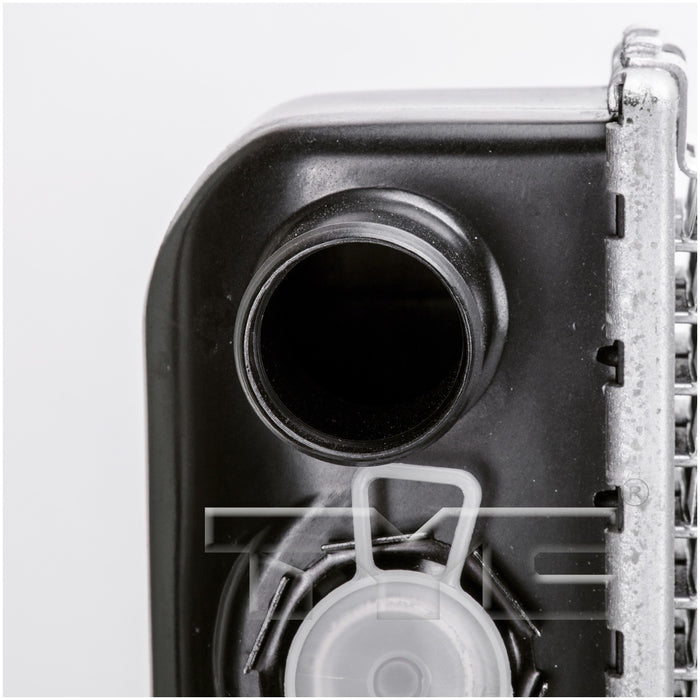

• Outlet Connection Type:
  Hose Clamp
• Outlet Diameter (in):
  1.57
• Toc Distance (in):
  11.50
• Toc Inlet Diameter (in):
  1/2-20UNF
• Toc Inlet Type:
  Adapter
• Toc Outlet Diameter (in):
  1/2-20UNF
• Toc Outlet Type:
  Adapter
• Top Header:
  3.16x20.66
• Total Fin Row Count:
  45
• Total Tube Count:
  44
• Transmission Oil Cooler Included:
  Yes
• Transmission Oil Cooler Type:
  Plate Oil Cooler
• Tube Count (every 4"):
  10
• Tube Width X Height:
  26x2
