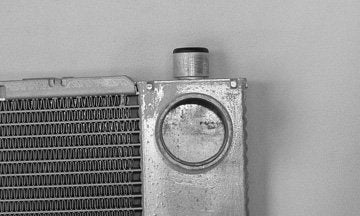

TYC 2688 Radiator

Vehicle Compatibility Chart

Part Attributes

• Bottom Header:
  2.05x19.76
• Core Height (in):
  19.39
• Core Length (in):
  26.46
• Core Material:
  Aluminum
• Core Thickness (in):
  0.63
• Engine Oil Cooler Included:
  No
• Fin Count (every 4"):
  85
• Fin Wave Height (in):
  0.20
• Find Wave Pitch:
  2.4
• Flow Configuration:
  Crossflow
• Inlet Connection Type:
  Hose Clamp
• Inlet Diameter (in):
  1.30
• No. Of Rows:
  1
• Outlet Connection Type:
  Hose Clamp
• Outlet Diameter (in):
  1.50
• Remarks:
  Aluminum Tank Design Only. Verify original radiator on vehicle before ordering
• Toc Distance (in):
  13.78
• Toc Inlet Diameter (in):
  0.39
• Toc Inlet Type:
  Tube fitting
• Toc Outlet Diameter (in):
  0.39
• Toc Outlet Type:
  Tube fitting
• Top Header:
  2.05x19.76
• Total Fin Row Count:
  76
• Total Tube Count:
  75
• Transmission Oil Cooler Included:
  Yes
• Transmission Oil Cooler Type:
  Plate Oil Cooler
• Tube Count (every 4"):
  16
• Tube Width X Height:
  16x1.5
