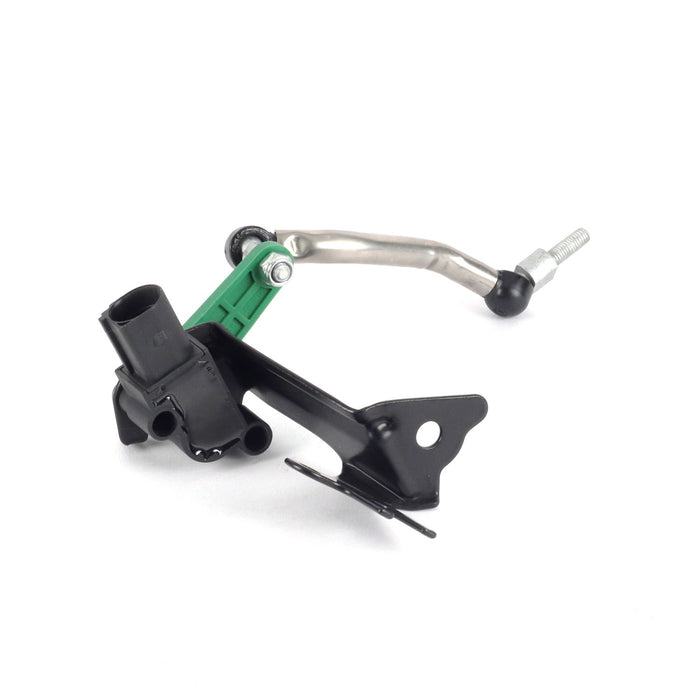

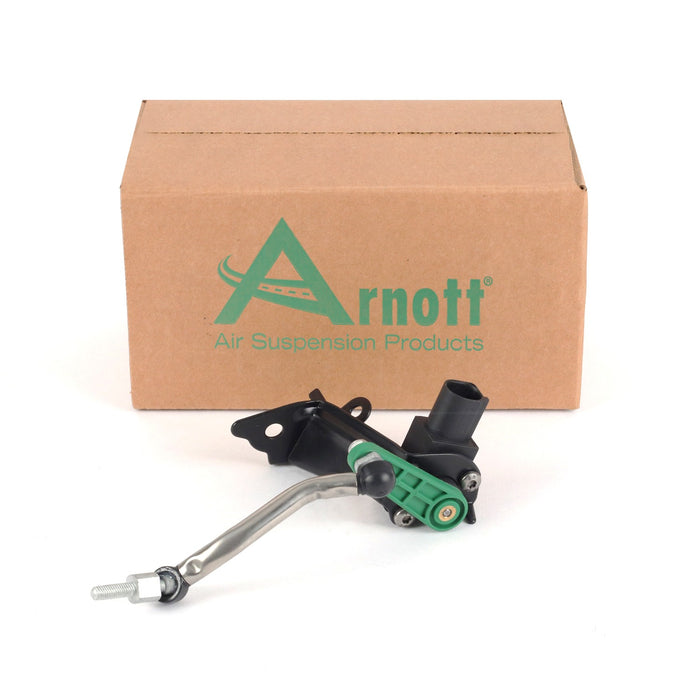

Arnott RH-3460 Suspension Ride Height Sensor - Front Left

Arnott RH-3460 Suspension Ride Height Sensor - Front Left

$131.37 - $131.37
$131.37 Includes shipping
$131.37 - $131.37
$131.37 Includes shipping

Seller: PartCatalog (98.8% positive, 47359 ratings)

Brand: Arnott

Availability:
5+ in stock, ready to be shipped

Condition: New

Always Free Shipping

Most orders ship out the same business day if ordered before 1pm CST. Return within 30 days for a full refund.

Free Shipping

And 30 day returns

Call or Text

+1 (281) 761-6097

Ships from the USA

Multiple locations nationwide

Fix Now, Pay Later

Options available at checkout

Arnott RH-3460 Suspension Ride Height Sensor - Front Left

RH-3460 is an Arnott Ride Height Sensor for the front left side of the 2015-2020 Porsche Macan (95B Chassis), the 2009-2017 Audi Q5 and the 2014-2017 Audi SQ5 (8R Chassis). Arnott’s aftermarket Ride Height Sensor is made from quality components including durable injection molded resin, aluminum arms, and rugged mounting points for a long service life. Arnott's aftermarket ride height sensor measures the varying distances between the road and the vehicle's chassis to provide input to a vehicle’s Electronic Control Unit (ECU) which then sends a signal to the air suspension compressor to fill or release air for the vehicle's air struts. Ride height sensors can wear out and are vulnerable to damage from road debris, accidents, water and salt intrusion. Shops should replace a faulty ride height sensor to prevent further damage to the vehicle's air suspension system. Arnott’s aftermarket Porsche Macan and Audi Q5/SQ5 Height Sensors are tested for up to 1 million cycles and backed by Arnott's industry leading warranty. Note: May also be referred to as a Headlamp Level Control.

Vehicle Compatibility Chart

✅ Compatible with 20 vehicles
Year Make Model Position
2021 Porsche Macan Front Left
2020 Porsche Macan Front Left
2019 Porsche Macan Front Left
2018 Porsche Macan Front Left
2017 Audi Q5 Front Left
2017 Audi SQ5 Front Left
2017 Porsche Macan Front Left
2016 Audi Q5 Front Left
2016 Audi SQ5 Front Left
2016 Porsche Macan Front Left
2015 Audi Q5 Front Left
2015 Audi SQ5 Front Left
2015 Porsche Macan Front Left
2014 Audi Q5 Front Left
2014 Audi SQ5 Front Left
2013 Audi Q5 Front Left
2012 Audi Q5 Front Left
2011 Audi Q5 Front Left
2010 Audi Q5 Front Left
2009 Audi Q5 Front Left

Part Interchanges

8R0941285D, 8R0941285F
