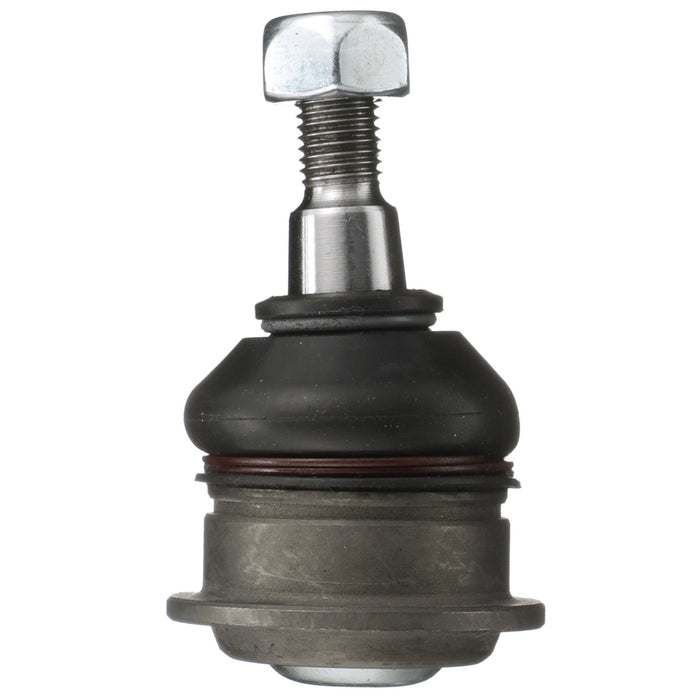

Delphi TC1153 Suspension Ball Joint - Front Upper

Vehicle Compatibility Chart

Part Attributes

• Adjustable:
  No
• Ball Joint Assembly:
  Yes
• Bushings Included:
  No
• Castle Nut Included:
  No
• Color:
  Gray
• Cotter Pin Hole:
  No
• Cotter Pin Included:
  No
• Dust Boot Included:
  Yes
• Dust Boot Material:
  Choloroprene Rubber (CR)
• Grease Fitting Included:
  No
• Greaseable:
  No
• Height:
  2.992
• Height:
  76.0
• Item Grade:
  Standard Replacement
• Material:
  Steel
• Maximum Outside Diameter:
  1.634
• Maximum Outside Diameter:
  41.5
• Mount Plate Included:
  No
• Mounting Hardware Included:
  Yes
• Mounting Hole Quantity:
  0
• Mounting Type:
  Pressed
• Nuts Included:
  Yes
• Position(s):
  Front Upper
• Stud Tapered End 1 Diameter:
  0.528
• Stud Tapered End 1 Diameter:
  13.4
• Stud Tapered End 2 Diameter:
  0.591
• Stud Tapered End 2 Diameter:
  15.0
• Stud Thread Diameter:
  0.63
• Stud Thread Diameter:
  16.0
• Stud Thread Length:
  0.709
• Stud Thread Length:
  18.0
• Stud Thread Pitch:
  1.25
• Stud Type:
  Threaded
• Suspension Grade Type:
  Standard
• Tapered Stud:
  Yes
• Washers Included:
  No
• Width:
  41.5

Part Interchanges
