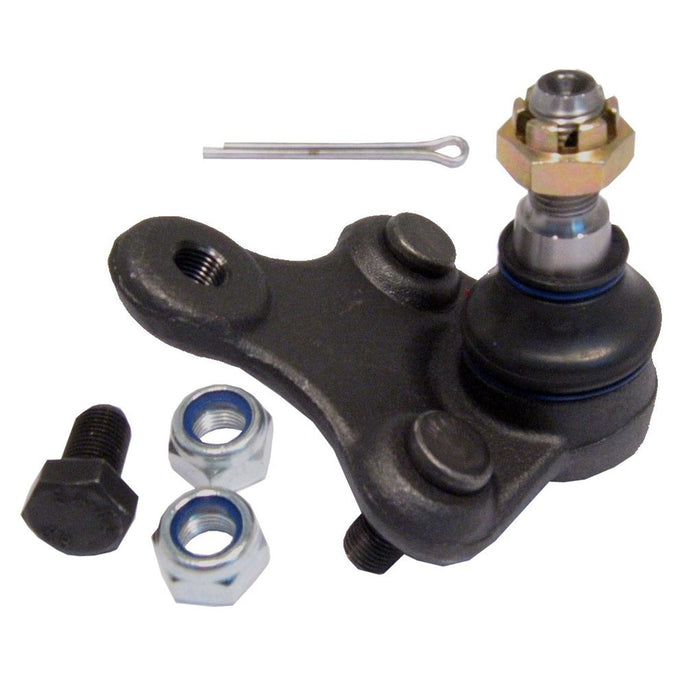

Delphi TC1184 Suspension Ball Joint - Front or Front Lower

Vehicle Compatibility Chart

Part Attributes

• Adjustable:
  No
• Ball Joint Assembly:
  Yes
• Bushings Included:
  No
• Castle Nut Included:
  Yes
• Color:
  Black
• Cotter Pin Hole:
  Yes
• Cotter Pin Included:
  Yes
• Distance Between Mounting Holes:
  51.5
• Dust Boot Included:
  Yes
• Dust Boot Material:
  Choloroprene Rubber (CR)
• Grease Fitting Included:
  No
• Greaseable:
  No
• Height:
  3.799
• Height:
  96.5
• Item Grade:
  Standard Replacement
• Material:
  Steel
• Maximum Outside Diameter:
  3.858
• Maximum Outside Diameter:
  98.0
• Mount Plate Included:
  No
• Mounting Bolt Head Diameter:
  0.906
• Mounting Bolt Head Diameter:
  23.0
• Mounting Bolt Length:
  1.094
• Mounting Bolt Length:
  27.8
• Mounting Bolt Shank Diameter:
  0.472
• Mounting Bolt Shank Diameter:
  12.0
• Mounting Bolt Thread Diameter:
  12.0
• Mounting Bolt Thread Length:
  0.787
• Mounting Bolt Thread Length:
  20.0
• Mounting Bolt Thread Pitch:
  1.25
• Mounting Bolts Included:
  Yes
• Mounting Hardware Included:
  Yes
• Mounting Hole Quantity:
  3
• Mounting Type:
  Bolt On
• Nuts Included:
  Yes
• Position(s):
  Front, Front Lower. For the position specific to your vehicle, refer to the Application tab.
• Stud Tapered End 1 Diameter:
  0.693
• Stud Tapered End 1 Diameter:
  17.6
• Stud Tapered End 2 Diameter:
  0.831
• Stud Tapered End 2 Diameter:
  21.1
• Stud Thread Diameter:
  0.551
• Stud Thread Diameter:
  14.0
• Stud Thread Length:
  0.811
• Stud Thread Length:
  20.6
• Stud Thread Pitch:
  1.5
• Stud Type:
  Threaded
• Suspension Grade Type:
  Standard
• Tapered Stud:
  Yes
• Washers Included:
  No
• Width:
  98.0
• Wrench Size:
  0.748
• Wrench Size:
  19.0
