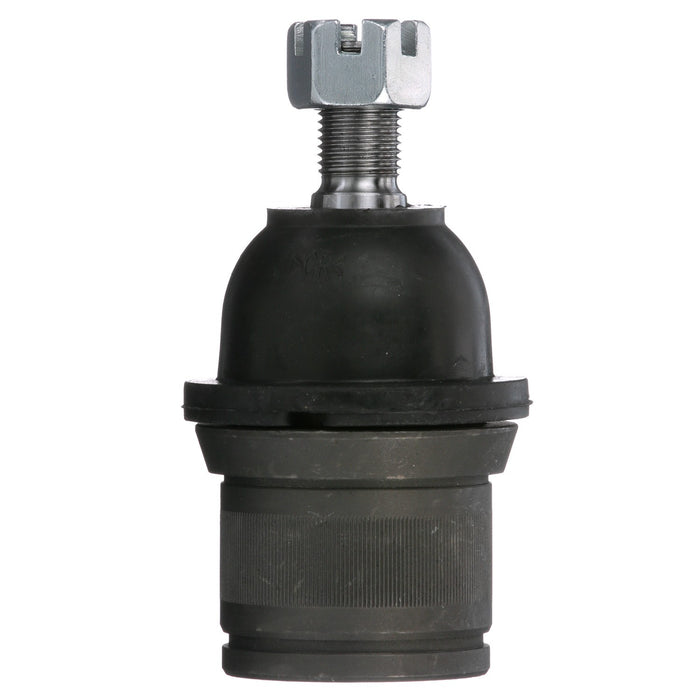

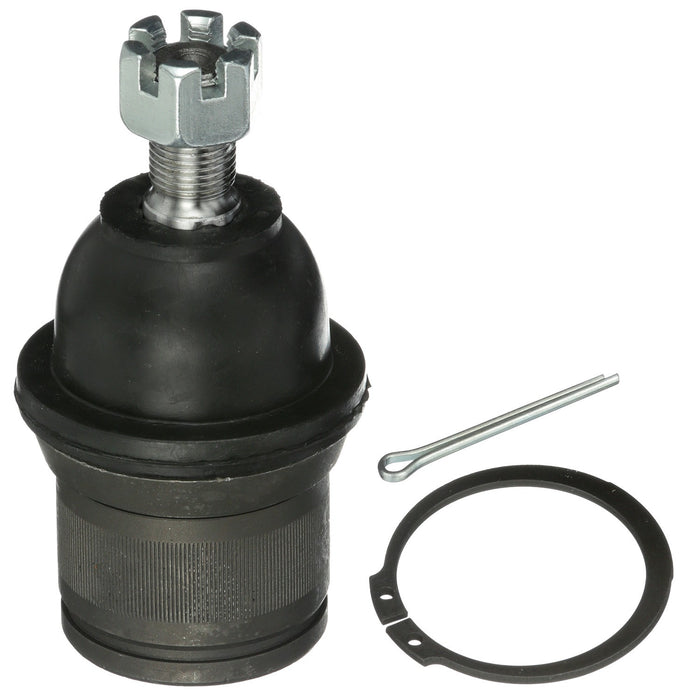

Delphi TC2203 Suspension Ball Joint - Front Lower

Vehicle Compatibility Chart

Part Attributes

• Adjustable:
  No
• Ball Joint Assembly:
  Yes
• Bushings Included:
  No
• Castle Nut Included:
  Yes
• Color:
  Gray
• Cotter Pin Hole:
  Yes
• Cotter Pin Included:
  Yes
• Dust Boot Included:
  Yes
• Dust Boot Material:
  Choloroprene Rubber (CR)
• Grease Fitting Included:
  Yes
• Height:
  4.567
• Item Grade:
  Standard Replacement
• Length:
  116
• Material:
  Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
• Maximum Outside Diameter:
  2.362
• Maximum Outside Diameter:
  60.0
• Mount Plate Included:
  No
• Mounting Bolts Included:
  No
• Mounting Hardware Included:
  Yes
• Mounting Type:
  Press In
• Nuts Included:
  Yes
• Position(s):
  Front Lower
• Stud Taper Per Foot:
  0.167
• Stud Tapered End 1 Diameter:
  0.843
• Stud Tapered End 1 Diameter:
  21.4
• Stud Tapered End 2 Diameter:
  0.705
• Stud Tapered End 2 Diameter:
  17.9
• Stud Thread Diameter:
  16.0
• Stud Thread Length:
  1.102
• Stud Thread Pitch:
  1.5
• Stud Type:
  Threaded
• Suspension Grade Type:
  Standard
• Tapered Stud:
  Yes
• Washers Included:
  Yes
• Width:
  60.0
