Gates 26220 Turbocharger Intercooler Hose Kit - Turbocharger to Pipe (Hot Side)

Vehicle Compatibility Chart

Part Attributes

• :
  75
• Bolt Type:
  .25 in. - 28 Plated Steel Male Pipe Thread
• Centerline Length:
  4.125
• Centerline Length:
  105
• Centerline Length (in):
  4.125
• Centerline Length (mm):
  105
• Clamp 1 - Band Width (in):
  .75
• Clamp 1 - Band Width (mm):
  19.1
• Clamp 1 - Bolt Type:
  .25 in. - 28 Plated Steel Male Pipe Thread
• Clamp 1 - Clamping Range Max (in):
  2.9375
• Clamp 1 - Clamping Range Max (mm):
  74.7
• Clamp 1 - Clamping Range Min (in):
  2.625
• Clamp 1 - Clamping Range Min (mm):
  66.8
• Clamp 1 - Nut Type:
  .4375 in. Hex-Head
• Clamp 1 - Recommended Torque (in/lbs):
  75
• Clamp 2 - Band Width (in):
  .75
• Clamp 2 - Band Width (mm):
  19.1
• Clamp 2 - Bolt Type:
  .25 in. - 28 Plated Steel Male Pipe Thread
• Clamp 2 - Clamping Range Max (in):
  2.9375
• Clamp 2 - Clamping Range Max (mm):
  74.7
• Clamp 2 - Clamping Range Min (in):
  2.625
• Clamp 2 - Clamping Range Min (mm):
  66.8
• Clamp 2 - Nut Type:
  .4375 in. Hex-Head
• Clamp 2 - Recommended Torque (in/lbs):
  75
• Clamp Band Width:
  .75
• Clamp Band Width:
  19.1
• Contents:

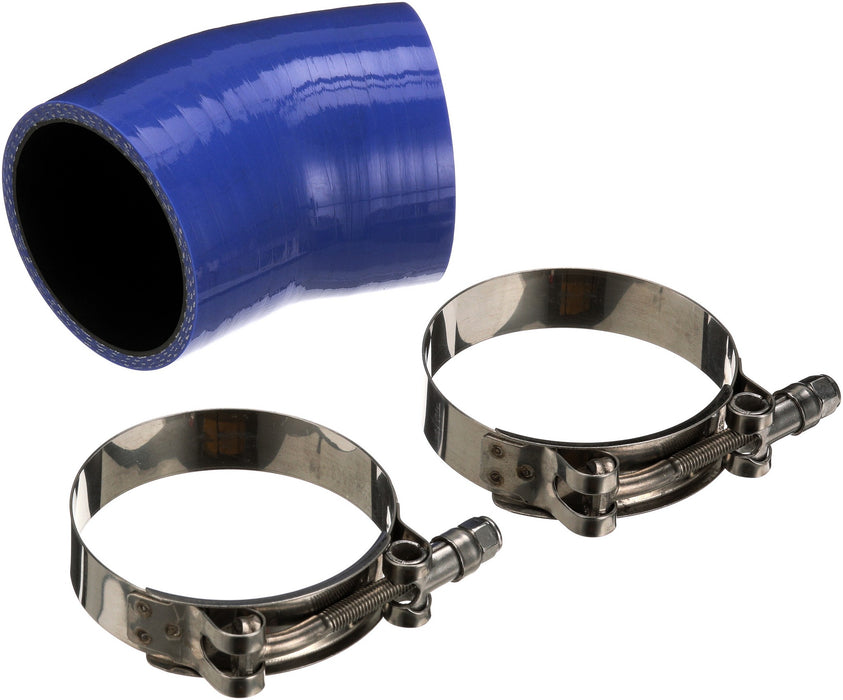

  1 Turbocharger Hose, 2 T-Bolt Clamps
• End 1 Inside Diameter:
  2.5
• End 1 Inside Diameter:
  64
• End 2 Inside Diameter:
  2.5
• End 2 Inside Diameter:
  64
• Inside Diameter 1 (in):
  2.5
• Inside Diameter 1 (mm):
  64
• Inside Diameter 2 (in):
  2.5
• Inside Diameter 2 (mm):
  64
• Maximum Clamping Length:
  2.9375
• Maximum Clamping Length:
  74.7
• Minimum Clamping Length:
  2.625
• Minimum Clamping Length:
  66.8
• Number of Rings:
  0
• Nut Type:
  .4375 in. Hex-Head
• OE Comparison Rating:
  OE Improved
• Ring Quantity:
  0
