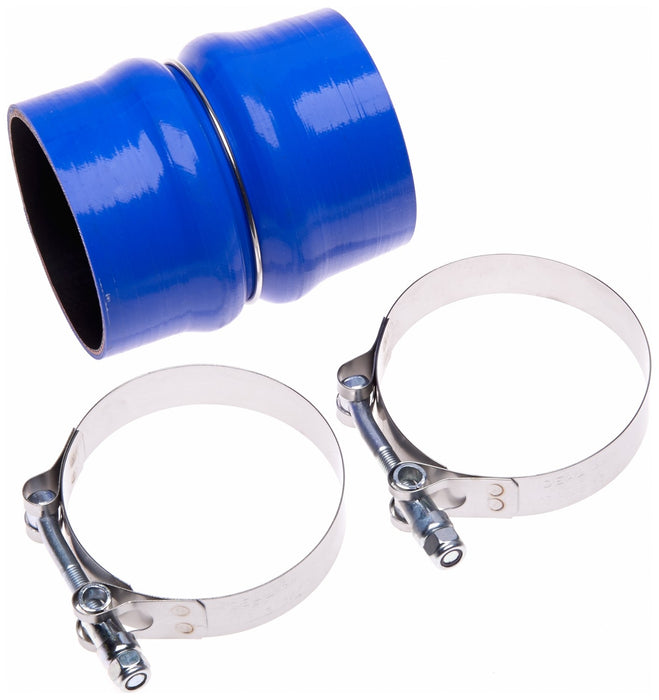

Gates 26230 Turbocharger Intercooler Hose Kit

Vehicle Compatibility Chart

Part Attributes

• :
  75
• Bolt Type:
  .25 in. - 28 Male Pipe Thread
• Centerline Length:
  4.02
• Centerline Length:
  102
• Centerline Length (in):
  4.02
• Centerline Length (mm):
  102
• Clamp 1 - Band Width (in):
  .75
• Clamp 1 - Band Width (mm):
  19.1
• Clamp 1 - Bolt Type:
  .25 in. - 28 Male Pipe Thread
• Clamp 1 - Clamping Range Max (in):
  3.4375
• Clamp 1 - Clamping Range Max (mm):
  87.4
• Clamp 1 - Clamping Range Min (in):
  3.125
• Clamp 1 - Clamping Range Min (mm):
  79.5
• Clamp 1 - Nut Type:
  .4375 in. Hex-Head
• Clamp 1 - Recommended Torque (in/lbs):
  75
• Clamp 2 - Band Width (in):
  .75
• Clamp 2 - Band Width (mm):
  19.1
• Clamp 2 - Bolt Type:
  .25 in. - 28 Male Pipe Thread
• Clamp 2 - Clamping Range Max (in):
  3.4375
• Clamp 2 - Clamping Range Max (mm):
  87.4
• Clamp 2 - Clamping Range Min (in):
  3.125
• Clamp 2 - Clamping Range Min (mm):
  79.5
• Clamp 2 - Nut Type:
  .4375 in. Hex-Head
• Clamp 2 - Recommended Torque (in/lbs):
  75
• Clamp Band Width:
  .75
• Clamp Band Width:
  19.1
• Contents:
  1 Turbocharger Hose, 2 T-Bolt Clamps
• End 1 Inside Diameter:
  3
• End 1 Inside Diameter:
  76
• End 2 Inside Diameter:
  3
• End 2 Inside Diameter:
  76
• Inside Diameter 1 (in):
  3
• Inside Diameter 1 (mm):
  76
• Inside Diameter 2 (in):
  3
• Inside Diameter 2 (mm):
  76
• Maximum Clamping Length:
  3.4375
• Maximum Clamping Length:
  87.4
• Minimum Clamping Length:
  3.125
• Minimum Clamping Length:
  79.5
• Number of Rings:
  1
• Nut Type:
  .4375 in. Hex-Head
• OE Comparison Rating:
  OE Improved
• Ring Quantity:
  1
