Gates TCKWP306M Engine Timing Belt Kit with Water Pump

Vehicle Compatibility Chart

Part Attributes

• :
  0
• :
  1
• :
  2
• Belt Material:
  HSN, Fiberglass Cord
• Belt Material:
  HSN, Fiberglass Cord
• Belt Profile Type:
  Curvilinear (II)
• Belt Quantity:
  1
• Belt Tensioner Included:
  Yes
• Belt Tooth Style:
  Curvilinear (II)
• Belt Top Color:
  Black
• Bolt Included:
  Yes
• Bolt Included:
  Yes
• Bolt Quantity:
  1
• Cog Quantity:
  150
• Contents:

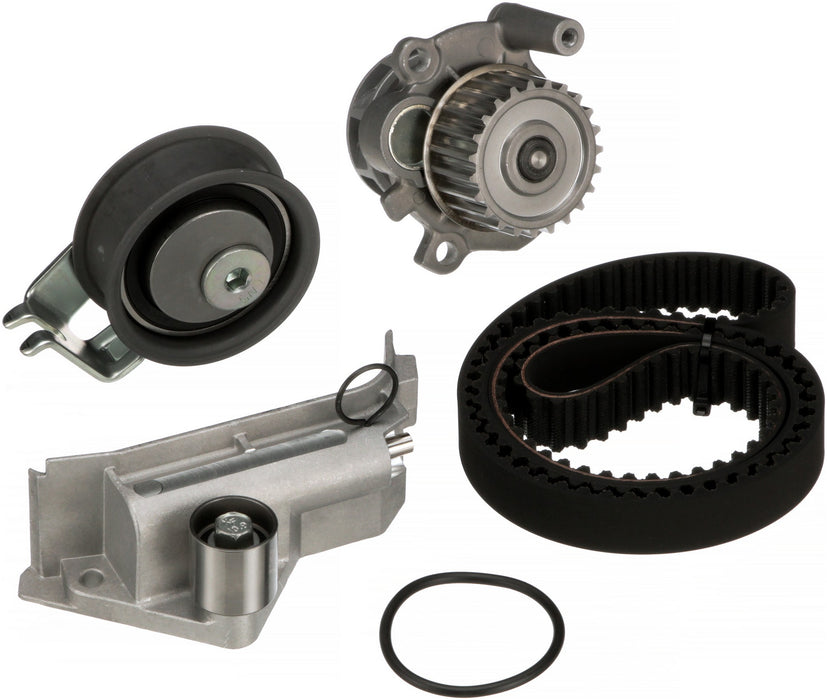

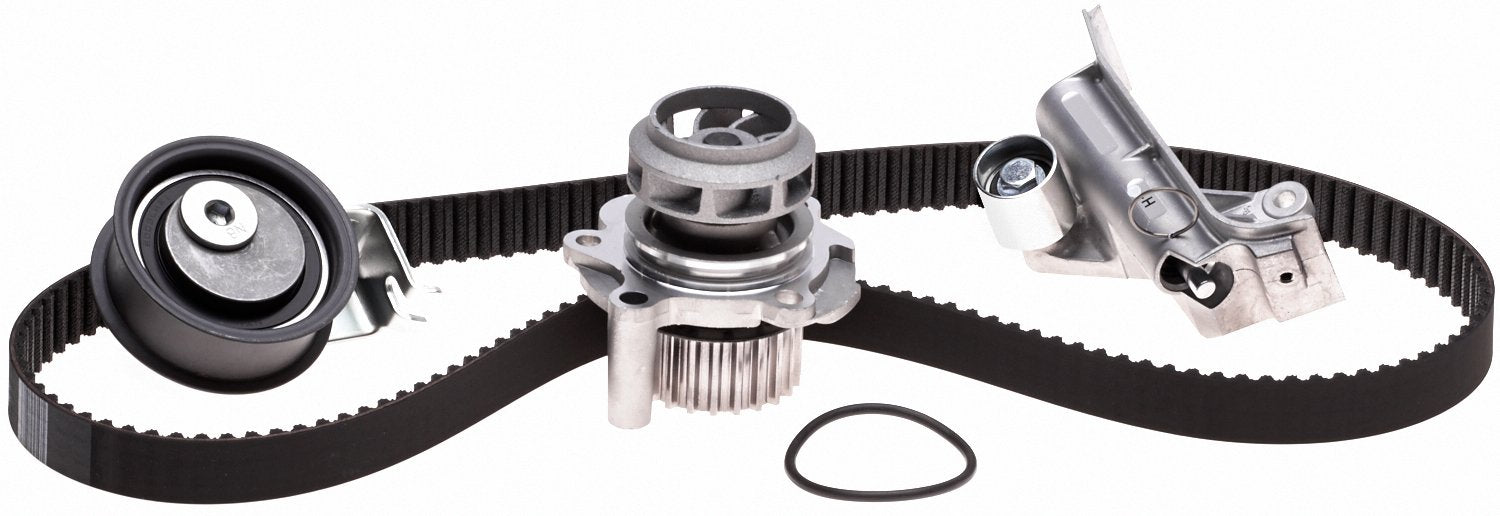

  Belt, Tensioner, Hydraulic Tensioner w/Pulley Attached, Water Pump, Bolt, Bushing, O-Ring
• Gasket Or Seals Included:
  Yes
• Gasket or Seal Included:
  Yes
• Idler Pulley Included:
  No
• Includes Installation Tool:
  No
• Installation Instructions Included:
  Yes
• Installation Tool Included:
  No
• Instruction Sheet Number:
  0098-1644
• Instructions Included:
  Yes
• Number of Belts Included:
  1
• Number of Bolts:
  1
• Number of Components:
  4
• Number of Gaskets:
  0
• Number of Idlers:
  0
• Number of Seals:
  1
• Number of Springs:
  0
• Number of Teeth on Belt:
  150
• Number of Tensioners:
  2
• Number of Timing Belts:
  1
• Number of Water Pumps:
  1
• OE Component Comparison Rating:
  OE Performance
• Spring Included:
  No
• Spring Quantity:
  0
• Springs Included:
  No
• Tensioner Included:
  Yes
• Tensioner Type:
  Hydraulic
• Timing Belt Included:
  Yes
• Timing Belt Timing Marks Included:
  No
• Timing Belt Width (in):
  .906
• Timing Belt Width (mm):
  23

Part Interchanges
