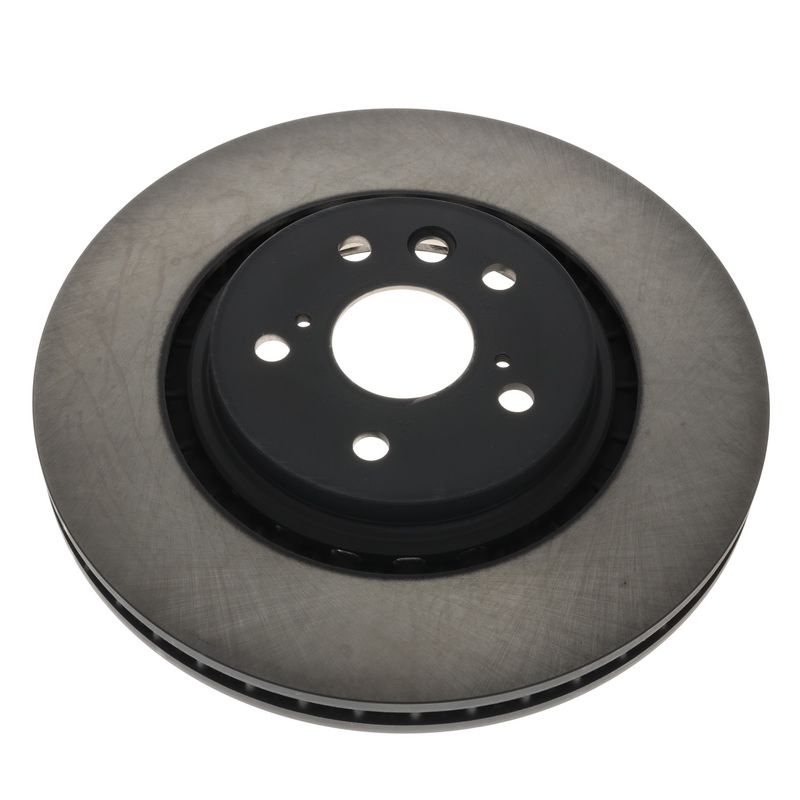

ADVICS A6F1392 Disc Brake Rotor - Front

ADVICS OE Front Disc Brake Rotor

The ADVICS A6F1392 is an OE-style front disc brake rotor built for select Toyota and Lexus applications, including Camry, Avalon, RX350, RX450h, NX250, NX350, NX350h, and the 2026 Toyota bZ. As an ADVICS Original Equipment Manufacturer part, it follows factory-level specifications for fit, finish, and braking performance.

With a high carbon, full cast construction and a vented design, this rotor is engineered to manage heat efficiently while maintaining a smooth, non-directional braking surface. The coated hat and rust-resistant coating help protect exposed areas from corrosion, making it a practical choice for front brake service on daily-driven vehicles.

Key Features

• Part number A6F1392 front disc brake rotor
• High carbon material for stable braking performance
• Full cast, vented rotor construction
• Non-directional, smooth brake surface
• Coated hat finish with rust-resistant coating
• Premium grade OE replacement design
• 5-lug mounting pattern with 114.3 mm bolt circle

Product Details

The ADVICS Original Equipment Manufacturer product line focuses on OE-level brake components built to match factory requirements. This rotor measures 328 mm outside diameter, 28 mm nominal thickness, and 25 mm discard thickness, with a 62 mm center hole diameter and 49.4 mm overall height. The vented design supports airflow through the rotor to help manage heat during repeated stops, while the non-directional surface simplifies service and bedding.

This part cross-references Centric Parts 120.44198 for the same application. It is a direct-fit option for front brake service on vehicles such as the Toyota Camry, Lexus RX350, and Lexus NX350h, where correct rotor dimensions and OE-style construction matter. The A6F1392 is also referenced against other OE and aftermarket numbers for the same fitment family.

Common Brake Issues It Can Address

• Brake pulsation from rotor wear or thickness variation
• Noise caused by uneven or damaged rotor surfaces
• Corrosion on exposed rotor areas
• Heat buildup during repeated braking
• Reduced braking smoothness from worn front rotors

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and vehicle application before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Follow proper brake service procedures, including pad inspection, caliper inspection, and rotor bedding after installation. This rotor is for front position applications only.

Quality Assurance

ADVICS supplies OE-level brake components and manufactures this rotor to high specification standards for consistent fit and braking performance. The coated hat and rust-resistant finish add protection to exposed surfaces during normal service.
